Description

Price

1

IGNITOR UNIT ASSY

8ET-82305-20-00

Unavailable

2

BRACKET, UNIT

8ES-85991-00-00

$13.49

3

BOLT, FLANGE

95817-06016-00

$2.75

4

BOLT, FLANGE

95812-06010-00

$2.98

5

IGNITION COIL ASSY

8ES-82310-00-00

$159.99

6

LEAD WIRE ASSY

8GM-81515-00-00

Unavailable

7

RECTIFIER & REGULATOR ASSY

5JW-81960-00-00

$373.99

8

BOLT, FLANGE

95822-06025-00

$1.75

9

WIRE HARNESS ASSY

8HC-82590-00-00

Unavailable

10

FUSE

5JJ-82151-20-00

$7.99

11

. FUSE (10A)

67F-82151-40-00

Unavailable

12

. FUSE (3A)

67F-82151-30-00

Unavailable

13

BAND, SWITCH CORD

25G-83936-01-00

$4.78

14

CLAMP(4FM)

90464-15195-00

$4.41

15

CLAMP(4FM)

90464-15195-00

$4.41

16

CLAMP

90464-13077-00

Unavailable

17

CLAMP

90464-16006-00

Unavailable

18

RELAY ASSY

5DM-81950-01-00

Unavailable

19

RELAY ASSY (8DM-11)

8DM-81950-11-00

Unavailable

20

MAIN SWITCH ASSY

8GL-82510-00-00

Unavailable

21

SENSOR, SPEED

8FP-83755-01-00

Unavailable

22

NUT, NYLON

95717-08300-00

Unavailable

23

HOUSING, FRONT AXLE

8EK-47551-00-00

Unavailable

24

BUZZER

8GK-83383-00-00

Unavailable

25

BOLT(3JK)

97027-05020-00

Unavailable

26

NUT, FLANGE

95702-05500-00

Unavailable

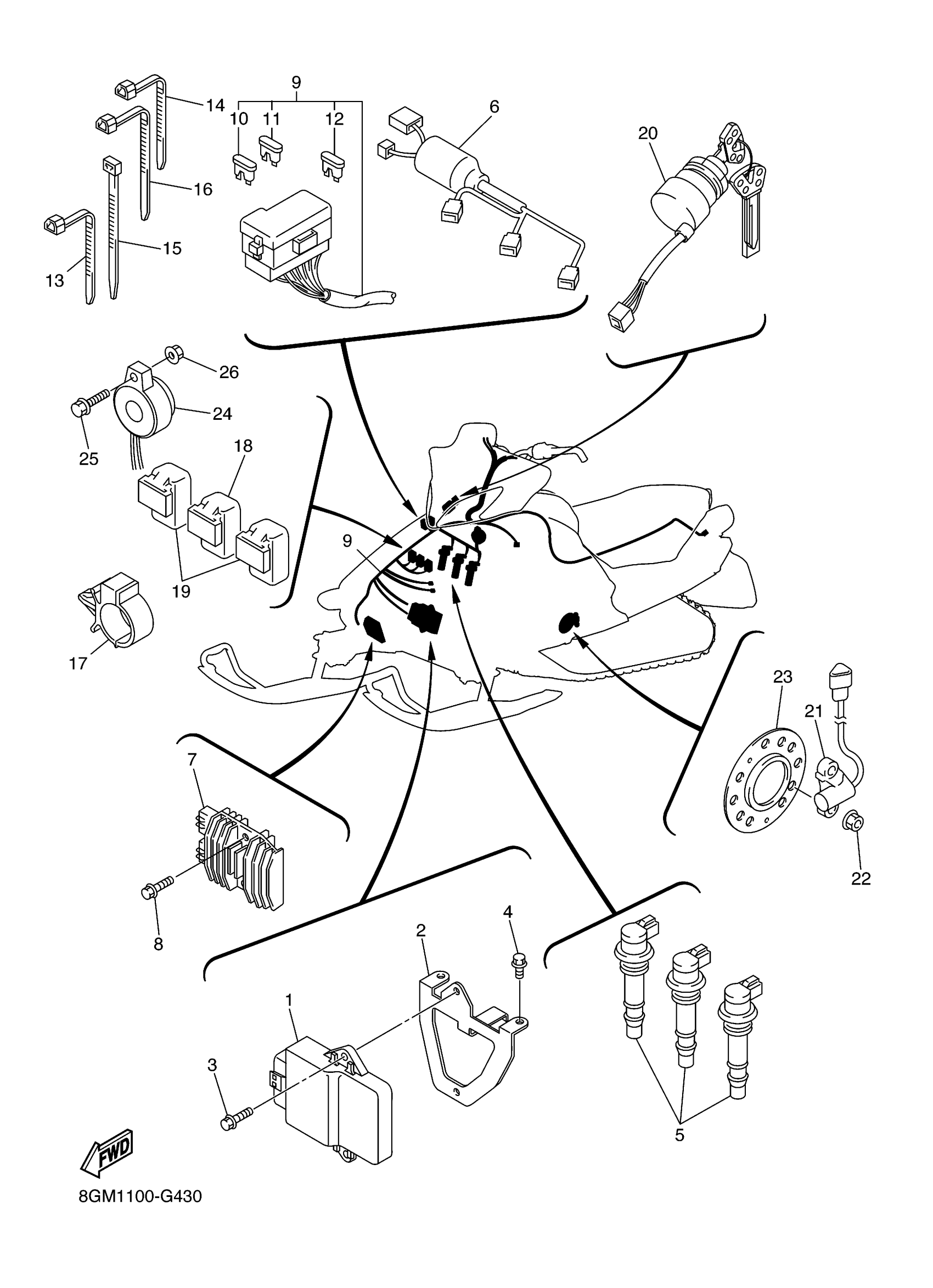

Yamaha RS90GTAXW (RS VECTOR GT 40TH ANNIVERSARY) 8HC3 2008 ELECTRICAL 1 Diagram

IGNITOR UNIT ASSY

BRACKET, UNIT

BOLT, FLANGE

BOLT, FLANGE

IGNITION COIL ASSY

LEAD WIRE ASSY

RECTIFIER & REGULATOR ASSY

BOLT, FLANGE

WIRE HARNESS ASSY

FUSE

. FUSE (10A)

. FUSE (3A)

BAND, SWITCH CORD

CLAMP(4FM)

CLAMP(4FM)

CLAMP

CLAMP

RELAY ASSY

RELAY ASSY (8DM-11)

MAIN SWITCH ASSY

SENSOR, SPEED

NUT, NYLON

HOUSING, FRONT AXLE

BUZZER

BOLT(3JK)

NUT, FLANGE
