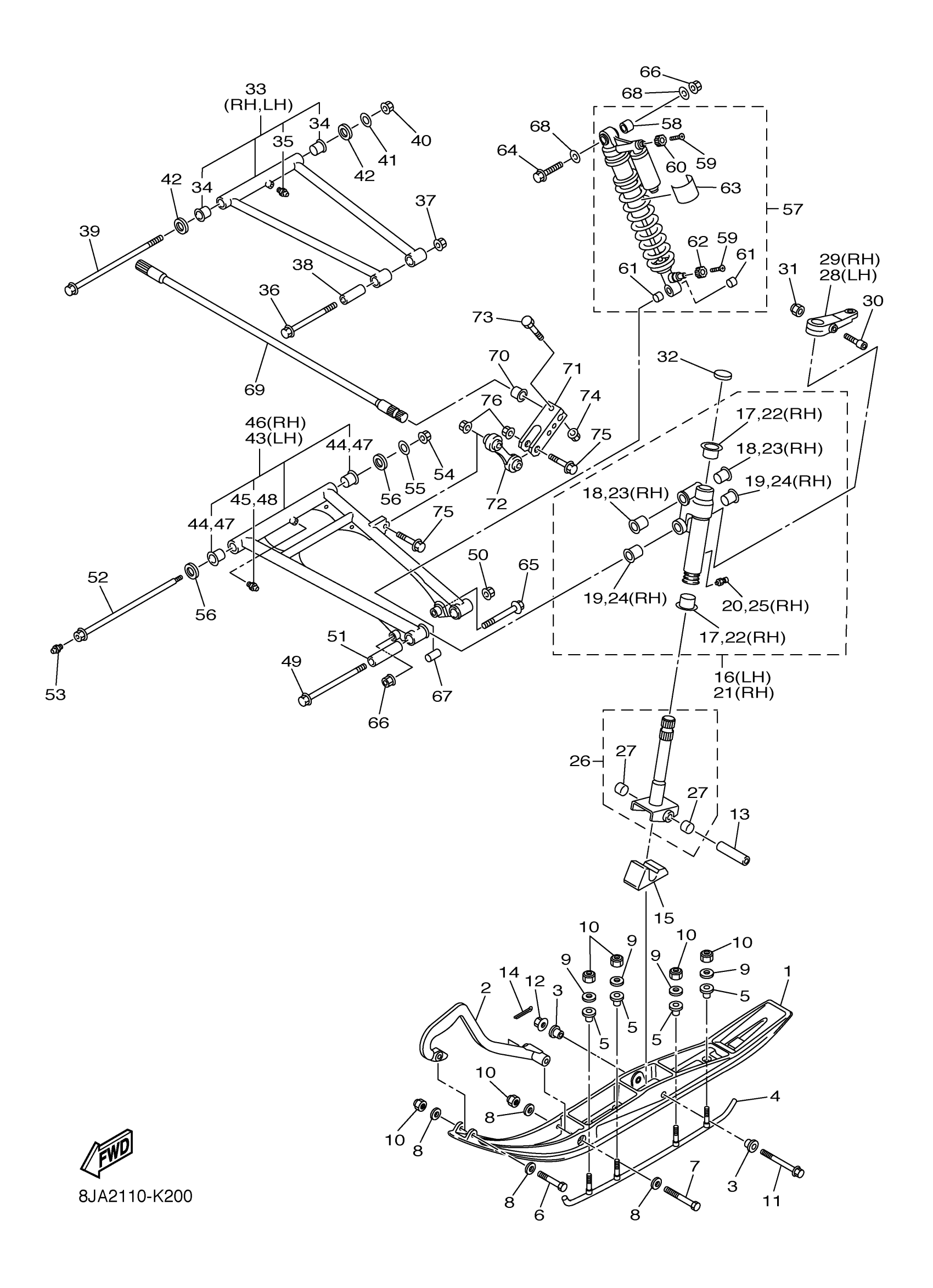

Yamaha RS90GTAS (RS VECTOR GT) 8JA2 2011 SKI Diagram
#
1
SKI 1
8ES-23711-00-BK
$138.99
2
BLUE 8DM HANDLE PLASTIC
8DM-23712-00-BU
Unavailable
3
. COLLAR 1
8EX-F3754-00-00
Unavailable
4
RUNNER 1
8GK-F3731-00-00
Unavailable
5
BUSH, SKI 1
8EK-F3751-00-00
Unavailable
6
BOLT, HEXAGON
97017-08055-00
$9.49
7
BOLT, HEXAGON
97027-08100-00
$5.60
8
WASHER, PLATE (3L7)
90201-08784-00
$3.23
9
WASHER, PLATE(3XP)
90201-086P8-00
$4.77
10
NUT, NYLON
95717-08300-00
$2.70
11
BOLT, FLANGE
90105-10070-00
$12.49
12
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
13
COLLAR
90387-1012H-00
$24.99
14
PIN, COTTER
91490-20025-00
$1.99
15
STOPPER 1
8CR-23743-10-00
$28.99
16
STEERING KNUCKLE ASSY (LEFT)
8ES-23501-00-00
Unavailable
17
BUSH, SOLID
90381-25115-00
Unavailable
18
BUSH, SOLID
90381-15N50-00
Unavailable
19
BUSH, SOLID
90381-18N51-00
Unavailable
20
NIPPLE, GREASE
93700-06M03-00
Unavailable
21
STEERING KNUCKLE ASSY (RIGHT)
8ES-23502-00-00
Unavailable
22
BUSH, SOLID
90381-25115-00
Unavailable
23
BUSH, SOLID
90381-15N50-00
Unavailable
24
BUSH, SOLID
90381-18N51-00
Unavailable
25
NIPPLE, GREASE
93700-06M03-00
Unavailable
26
COLUMN, SKI ASSY
8ES-23803-00-00
Unavailable
27
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
28
ARM, OUTSIDE 1
8FA-23851-00-00
Unavailable
29
ARM, OUTSIDE 2
8FA-23852-00-00
Unavailable
30
BOLT, HEXAGON SOCKET HEAD
90110-08104-00
Unavailable
31
NUT, SELF-LOCKING
95602-08200-00
Unavailable
32
CAP, CASE
3YK-22472-40-00
Unavailable
33
FRONT UPPER ARM COMP.
8JA-23540-00-00
Unavailable
34
BUSH, SOLID
90381-15N50-00
Unavailable
35
NIPPLE, GREASE
93700-06M03-00
Unavailable
36
BOLT, FLANGE
90105-10230-00
Unavailable
37
NUT, S/L FLANGE
95602-10200-00
Unavailable
38
COLLAR
90387-10099-00
Unavailable
39
BOLT
90109-10056-00
Unavailable
40
NUT, S/L FLANGE
95602-10200-00
Unavailable
41
WASHER, PLATE
90201-10052-00
Unavailable
42
WASHER
90209-15N50-00
Unavailable
43
FRONT LOWER ARM COMP. (LEFT)
8JA-23570-00-00
Unavailable
44
BUSH, SOLID
90381-16N51-00
Unavailable
45
NIPPLE, GREASE
93700-06M03-00
Unavailable
46
FRONT LOWER ARM COMP. (RIGHT)
8JA-23580-00-00
Unavailable
47
BUSH, SOLID
90381-16N51-00
Unavailable
48
NIPPLE, GREASE
93700-06M03-00
Unavailable
49
BOLT, FLANGE
90105-12078-00
Unavailable
50
NUT, SELF-LOCKING
95602-12200-00
Unavailable
51
COLLAR
90387-12N54-00
Unavailable
52
BOLT, UNION
90401-10045-00
Unavailable
53
NIPPLE, GREASE
93700-06M03-00
Unavailable
54
NUT, S/L FLANGE
95602-10200-00
Unavailable
55
WASHER, PLATE
90201-10052-00
Unavailable
56
WASHER
90209-15N50-00
Unavailable
57
ABSORBER ASSY 1
8GD-2376A-00-00
Unavailable
58
DAMPER, BUSH B
8FA-2331R-00-00
Unavailable
59
SCREW, OVAL HEAD
98680-03008-00
Unavailable
60
. KNOB (COMP)
5EA-22464-00-00
Unavailable
61
BUSH, BIMETAL FORMED
90384-15N51-00
Unavailable
62
KNOB (TEN)
5JW-2319W-00-00
Unavailable
63
LABEL, WARNING
4AA-22259-60-00
Unavailable
64
BOLT, WASHER BASED (4K0)
90105-10169-00
Unavailable
65
BOLT, FLANGE
90105-10288-00
Unavailable
66
NUT, S/L FLANGE
95602-10200-00
Unavailable
67
COLLAR
90387-10N59-00
Unavailable
68
WASHER, PLATE
90201-10052-00
Unavailable
69
BAR, STABILIZER FRONT
8FG-2386E-00-00
Unavailable
70
BUSH, STABILIZER FRONT
8FG-2386G-00-00
Unavailable
71
ARM, STABILIZER
8FG-2386L-00-00
Unavailable
72
JOINT, STABILIZER 1
8ES-2385L-00-00
Unavailable
73
BOLT
90101-06046-00
Unavailable
74
NUT, U FLANGE
95604-06200-00
Unavailable
75
BOLT, FLANGE(4FM)
95814-08030-00
Unavailable
76
NUT, U FLANGE(4KG)
95604-08200-00
Unavailable
