- RS90GTAS (RS VECTOR GT) 8JA2 2011
ELECTRICAL 1

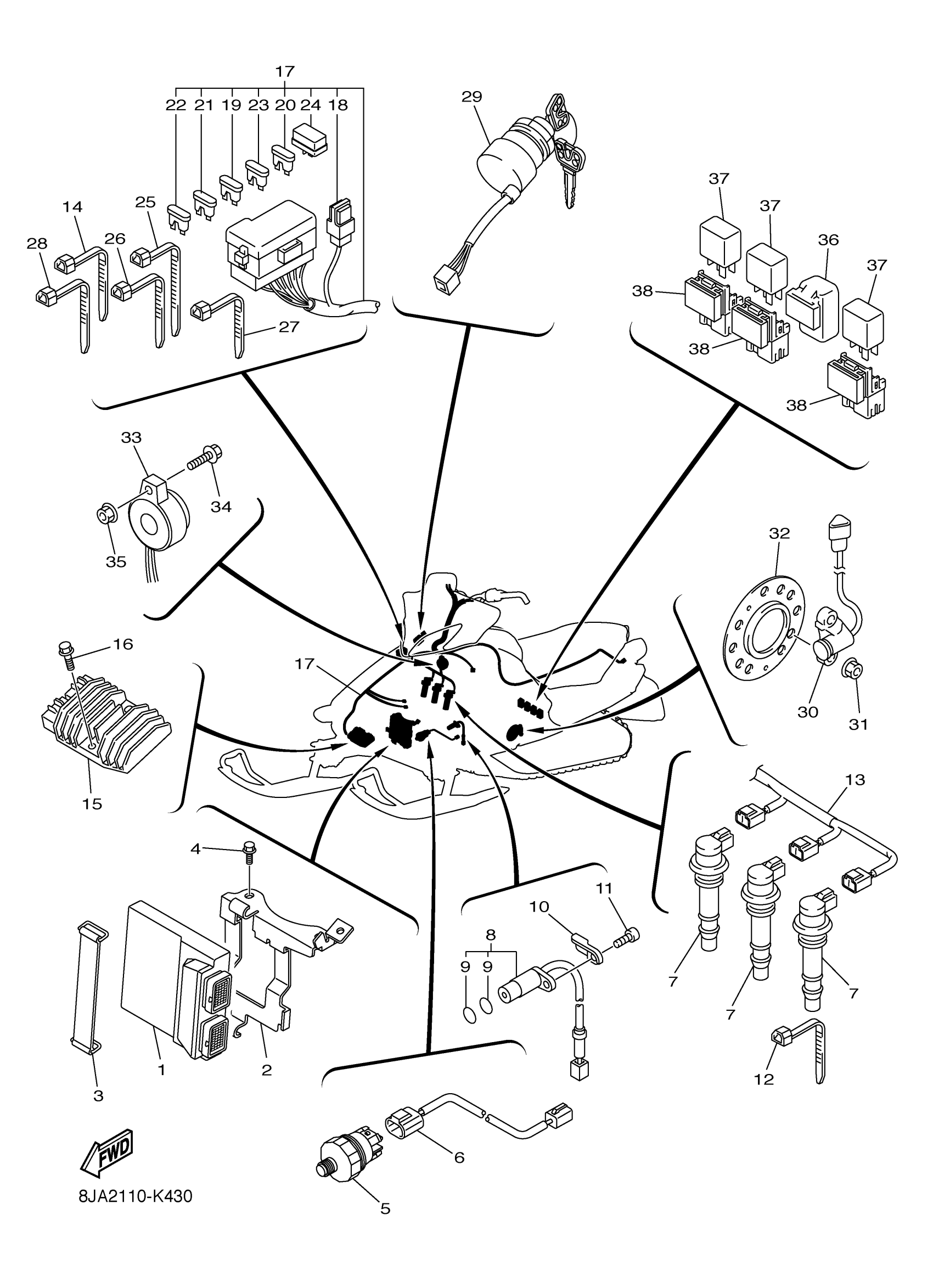

Yamaha RS90GTAS (RS VECTOR GT) 8JA2 2011 ELECTRICAL 1 Diagram
#
1
ENGINE CONTROL UNIT ASSY
8JA-8591A-00-00
$935.99
2
BRACKET, UNIT
8HF-85991-00-00
Unavailable
3
BAND, BATTERY
2T4-82131-00-00
$8.99
4
BOLT, FLANGE
95812-06010-00
$2.98
5
OIL PRESSURE SWITCH
8FP-82504-01-00
$71.99
6
WIRE, SUB-LEAD
8GL-82318-00-00
$26.99
7
IGNITION COIL ASSY
8ES-82310-00-00
$159.99
8
PICK-UP ASSY
8GL-81670-01-00
$140.99
9
O-RING 1
5VY-8A8E1-00-00
$6.99
10
PLATE
5VY-15589-02-00
$4.99
11
BOLT,SOCKET
91317-06016-00
$1.25
12
CLAMP(4FM)
90464-15195-00
$4.41
13
LEAD WIRE ASSY
8HF-81515-00-00
Unavailable
14
CLAMP(4FM)
90464-15195-00
$4.41
15
RECTIFIER & REGULATOR ASSY
1D7-81960-01-00
$323.99
16
. BOLT, FLANGE
90105-06184-00
Unavailable
17
WIRE HARNESS ASSY
8JA-82590-10-00
Unavailable
18
SLOW BLOW FUSE
JR9-82151-00-00
Unavailable
19
FUSE
5JJ-82151-20-00
Unavailable
20
FUSE (15A)
67F-82151-50-00
Unavailable
21
FUSE (7.5A-BL)
5JJ-82151-00-00
Unavailable
22
FUSE (5A)
67F-82151-20-00
Unavailable
23
. FUSE (3A)
67F-82151-30-00
Unavailable
24
DIODE ASSY
4WA-81980-00-00
Unavailable
25
CLAMP(4FM)
90464-15195-00
$4.41
26
CLAMP(4FM)
90464-15195-00
$4.41
27
CLAMP
90464-13077-00
Unavailable
28
CLAMP
90464-14006-00
Unavailable
29
MAIN SWITCH ASSY
8HF-82510-00-00
Unavailable
30
SENSOR, SPEED
8GK-83755-12-00
Unavailable
31
NUT, NYLON
95717-08300-00
Unavailable
32
HOUSING, FRONT AXLE
8EK-47551-00-00
Unavailable
33
BUZZER
8GL-83383-00-00
Unavailable
34
SCREW, WITH WASHER
90159-05035-00
Unavailable
35
NUT, FLANGE
95702-05500-00
Unavailable
36
RELAY ASSY
5DM-81950-01-00
Unavailable
37
RELAY ASSY (8HG-10
8HG-81951-10-00
Unavailable
38
HOLDER, RELAY
8HG-81952-00-00
Unavailable
