Description

Price

1

STEERING GATE COMP.

8HV-23870-00-00

Unavailable

2

STOPPER

8HG-23376-00-00

$11.49

3

STOPPER

8FA-24768-00-00

Unavailable

4

SPACER

8HV-23858-00-00

$3.81

5

WASHER, PLATE

90201-10032-00

$1.17

6

COVER, MOTOR

8HG-238B6-01-00

$30.99

7

BOLT, WITH HOLE

90102-08007-00

Unavailable

8

BOLT(3KJ)

90109-063F1-00

$2.97

9

BRACKET

JT1-83614-00-00

$28.99

10

SCREW, BIND (705)

98980-06016-00

$8.49

11

WASHER, PLATE(49E)

90201-087H6-00

$2.39

12

NUT,FLANGE(J10)

95702-08500-00

$1.43

13

BOLT, FLANGE

90105-08236-00

$3.55

14

WASHER (853)

90201-08326-00

$8.49

15

BOLT, FLANGE

90105-08239-00

$1.81

16

LATCH

8FA-2389E-00-00

Unavailable

17

NUT, SELF-LOCKING

95602-08200-00

Unavailable

18

CLAMP

90462-10022-00

Unavailable

19

CLAMP

90462-10035-00

Unavailable

20

CLIP 136253750000

90468-12006-00

Unavailable

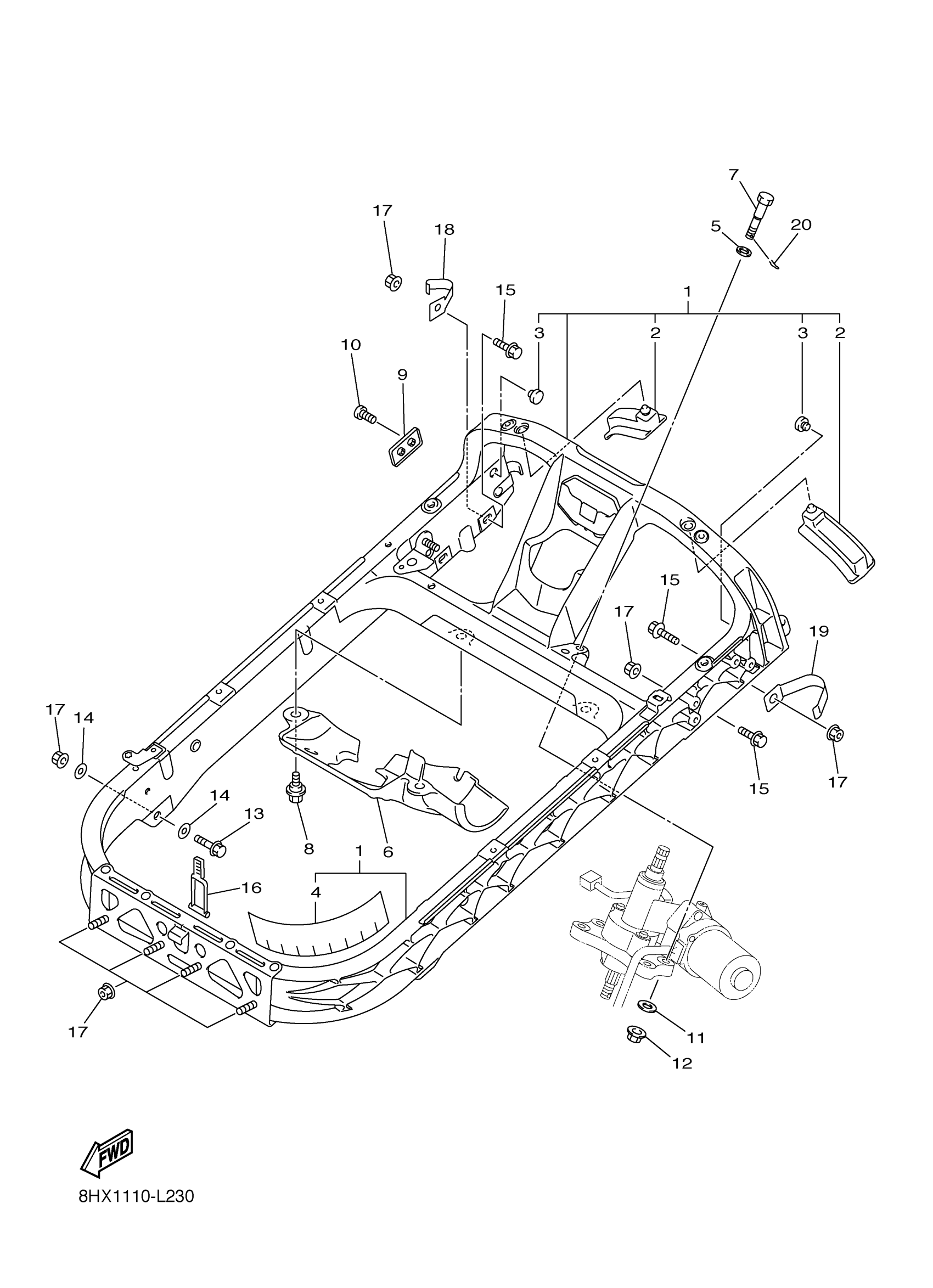

Yamaha RS1NJL (RS VECTOR) 8JU3 2018 STEERING GATE Diagram

STEERING GATE COMP.

STOPPER

STOPPER

SPACER

WASHER, PLATE

COVER, MOTOR

BOLT, WITH HOLE

BOLT(3KJ)

BRACKET

SCREW, BIND (705)

WASHER, PLATE(49E)

NUT,FLANGE(J10)

BOLT, FLANGE

WASHER (853)

BOLT, FLANGE

LATCH

NUT, SELF-LOCKING

CLAMP

CLAMP

CLIP 136253750000
