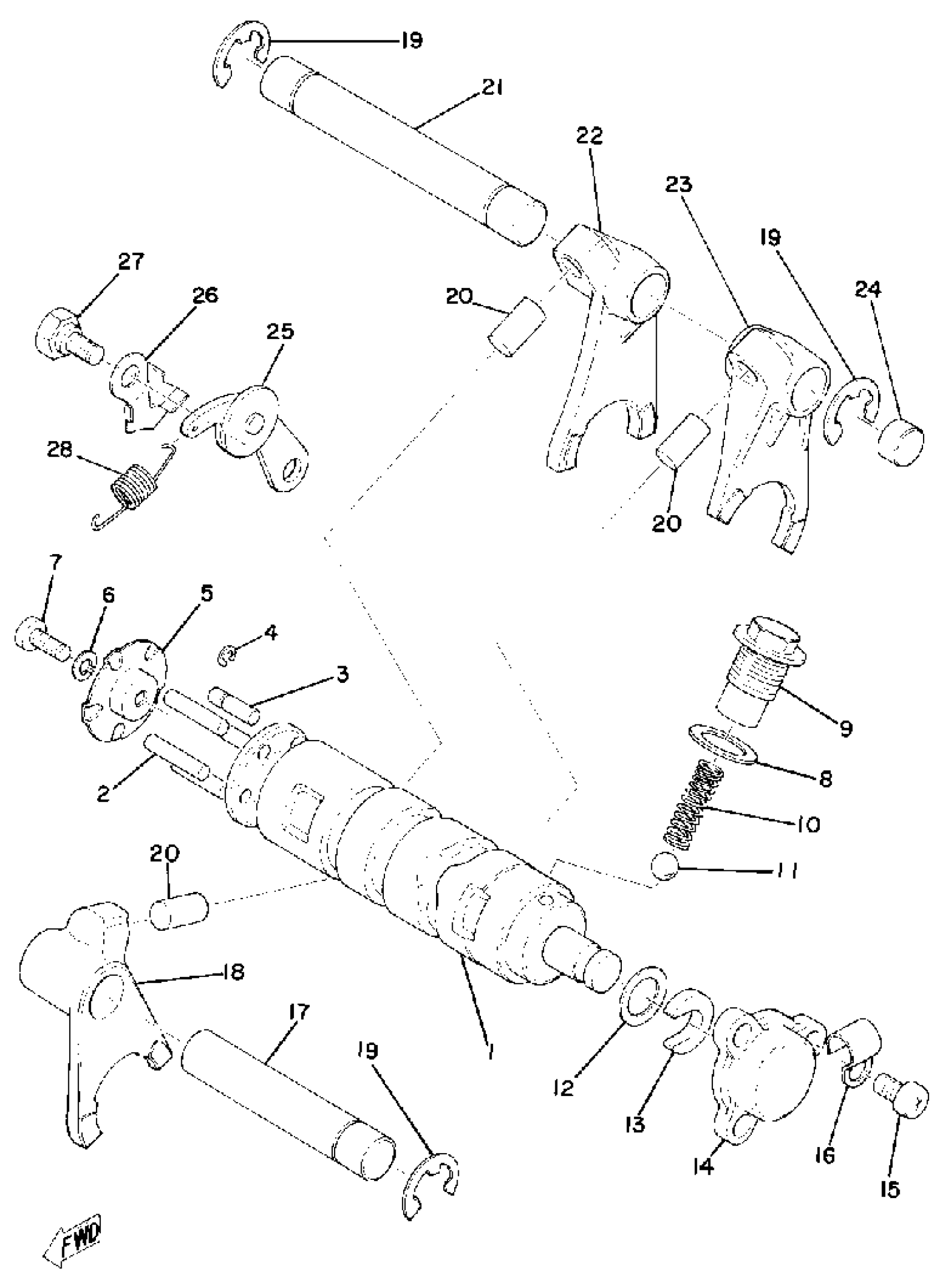

Yamaha RS100C (RS100) 1976 SHIFTER 1 Diagram

#

Description
Price

1

SHIFT CAM ASSEMBLY

315-18540-00-00

Unavailable

2

PIN,DOWEL (620)

93604-22050-00

$8.49

3

. PIN, SPEC''L SHAPE (174-18544-00)

90249-04039-00

Unavailable

4

. CIRCLIP, E-TYPE

93430-03014-00

Unavailable

5

PLATE, SIDE

164-18561-00-00

$5.49

6

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

7

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

8

WASHER, PROTECTOR

4F4-14766-00-00

$6.99

9

BOLT

90109-14385-00

$16.99

10

SPRING, COMPRESSION (465)

90501-10353-00

$9.49

11

BALL

93505-16006-00

$8.49

12

WASHER PLATE 164185720000

90201-12166-00

$9.49

13

HOLDER, SHIFT CAM

164-18571-01-00

$8.99

14

PLUG, BLIND SHIFT CAM

164-18589-00-00

Unavailable

15

SCREW PAN HEAD

98580-06010-00

$8.49

16

CLAMP

(90462-05012-00)

Unavailable

17

BAR, SHIF FRK GDE 1

(248-18531-00-00)

Unavailable

18

FORK, SHIFT 2

463-18512-00-00

Unavailable

19

CIRCLIP

99006-10600-00

Unavailable

20

PIN, STRAIGHT

90250-08017-00

Unavailable

21

BAR, SHIFT FORK GUIDE 1

214-18531-00-00

Unavailable

22

FORK, SHIFT 3

463-18513-00-00

Unavailable

23

FORK, SHIFT 1

463-18511-00-00

Unavailable

24

PLUG, BLIND

214-15385-00-00

Unavailable

25

STOPPER LEVER ASSY

132-18140-01-00

Unavailable

26

COVER

(463-15492-00-00)

Unavailable

27

BOLT

90109-06239-00

Unavailable

28

SPRING, TENSION

(90506-09013-00)

Unavailable
