1976 Yamaha RS100 (RS100C) Seat Diagram

← All diagrams

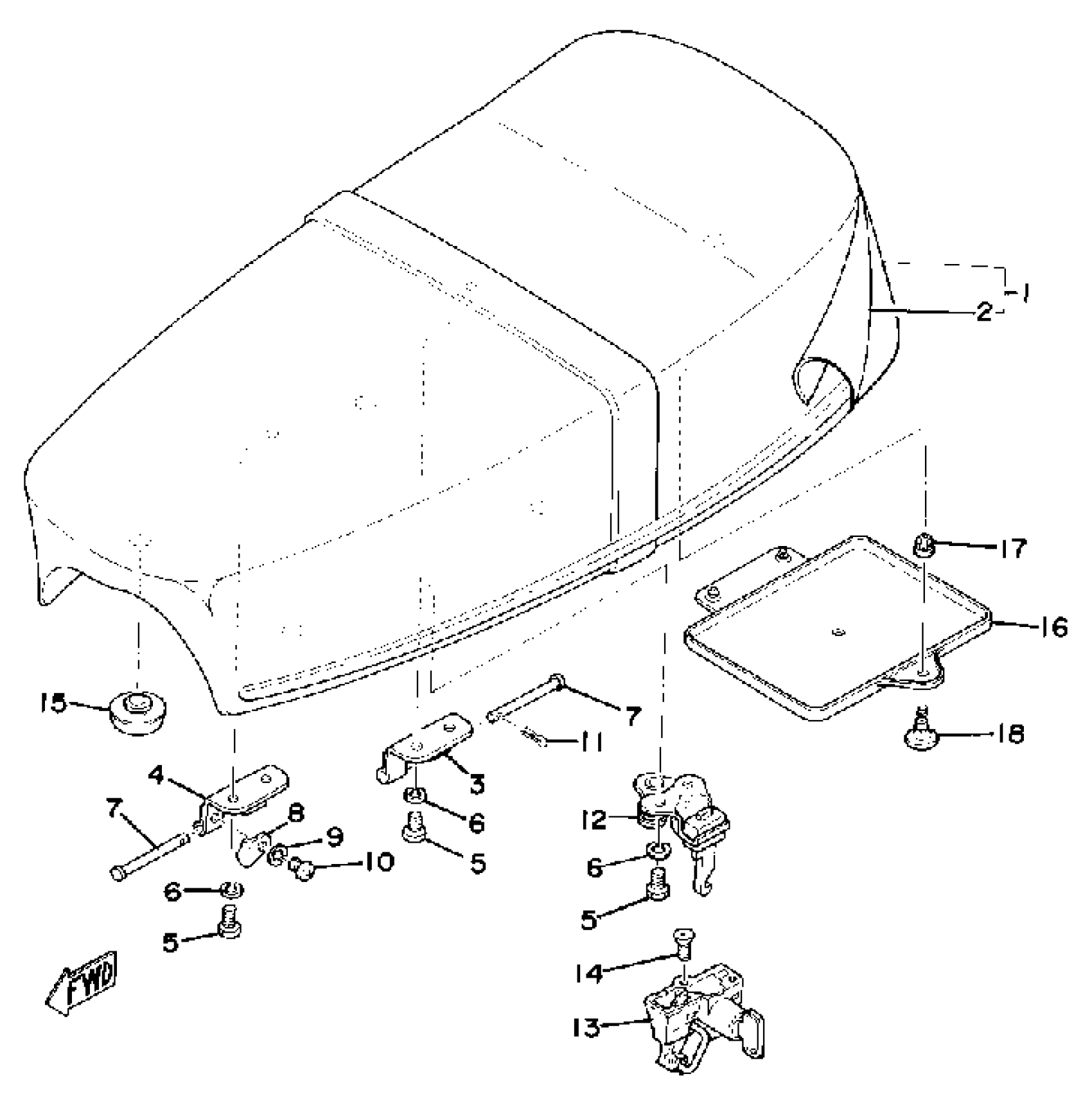

Find the part on the Seat diagram for your 1976 Yamaha RS100 (RS100C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha RS100 (RS100C) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSEMBLY

(463-W2472-02-00)

1
Out of stock

2

COVER, DOUBLE SEAT

(463-24731-01-00)

1
Out of stock

3

HINGE, SEAT

371-24726-01-00

1
Out of stock

4

HINGE, SEAT

(463-24726-00-00)

1
Out of stock

5

BOLT (661)

97013-06012-00

1
Out of stock

6

WASHER, SPRING

92995-06100-00

1
Out of stock

7

PIN, CLEVIS

91701-05055-00

1
Out of stock

8

COVER, TAIL

(463-24756-00-00)

1
Out of stock

9

WASHER, SPRING

92995-06100-00

1
Out of stock

10

SCREW, PAN HEAD(6A3)

97885-06008-00

1
Out of stock

11

CLIP (156-83525-00)

90468-10050-00

1
Out of stock

12

BRACKET, SEAT

371-24728-02-00

1
Out of stock

13

SEAT LOCK ASSEMBLY

584-24705-00-00

1
Out of stock

14

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock

15

PAD, SEAT

1L9-24741-00-00

1
Out of stock

16

LID

2R6-28185-00-00

1
Out of stock

17

GROMMET (341-28187-00)

90480-06007-00

1
Out of stock

18

PLUNGER

341-28188-00-00

1
Out of stock
