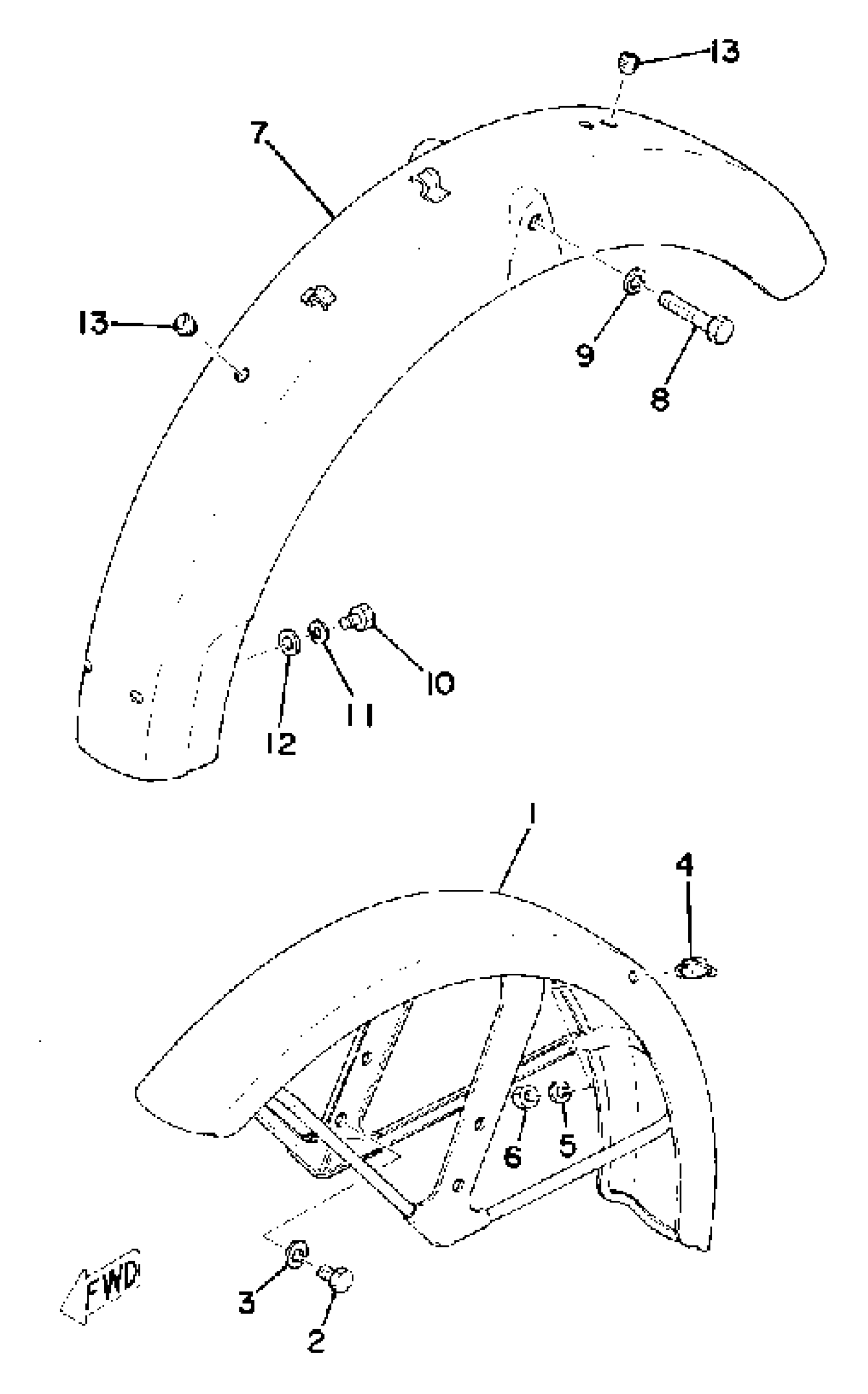

Yamaha RS100C (RS100) 1976 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

(478-21510-01-93)

Unavailable

2

BOLT(8X2)

90101-08344-00

Unavailable

3

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

4

HOLDER, CABLE

(174-21518-00-00)

Unavailable

5

WASHER, SPRING

92995-06100-00

$2.95

6

NUT, HEXAGON

95380-06600-00

$4.11

7

FENDER, REAR

(326-21610-00-93)

Unavailable

8

BOLT, HEXAGON

97013-06050-00

$1.43

9

WASHER, SPRING

92995-06100-00

$2.95

10

BOLT (661)

97013-06012-00

$4.40

11

WASHER, SPRING

92995-06100-00

$2.95

12

WASHER, PLAIN (646)

92990-06600-00

$1.84

13

GROMMET 152845180000

90480-12013-00

$6.02
