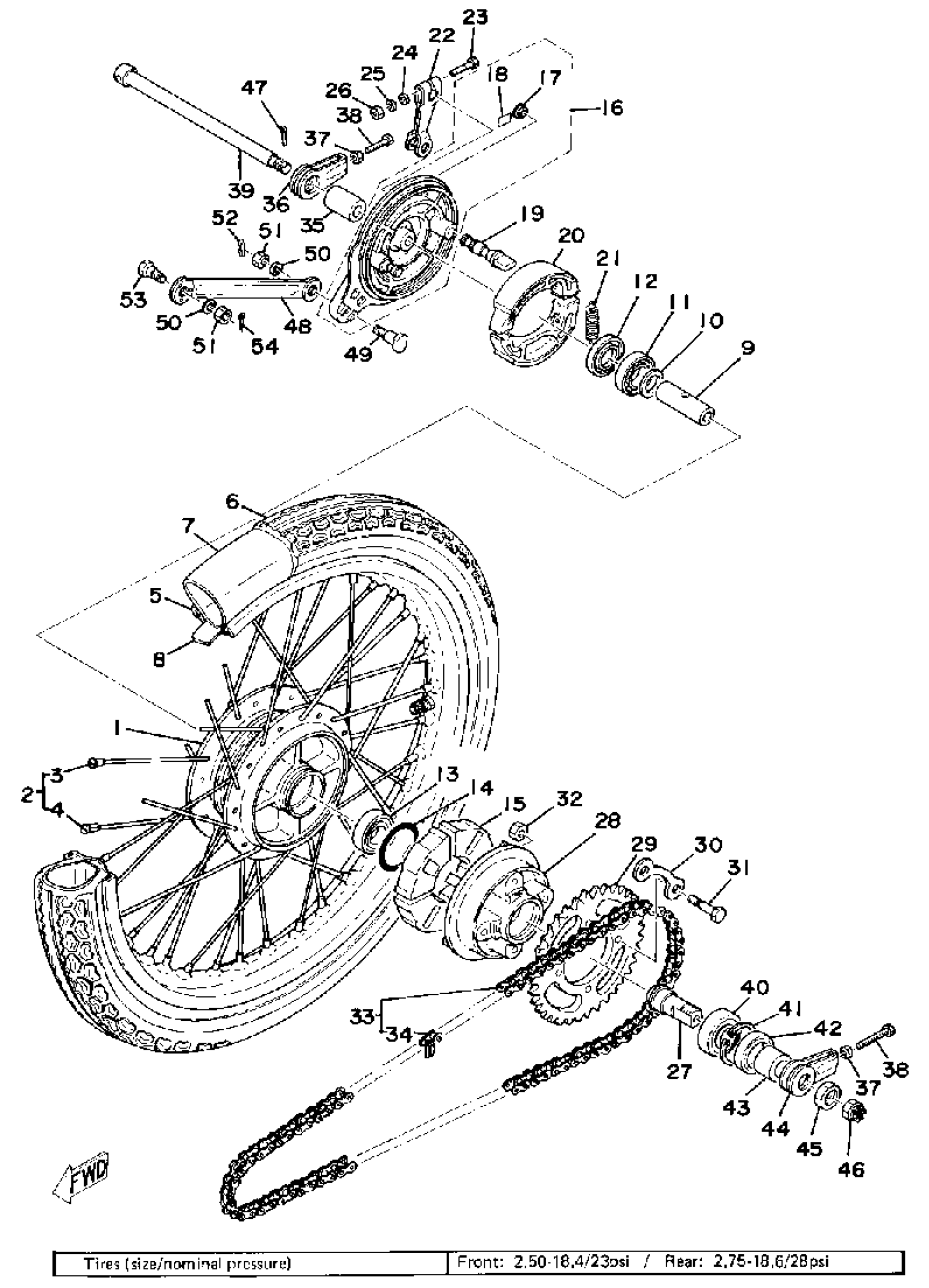

Yamaha RS100C (RS100) 1976 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(132-25311-00-38)

Unavailable

2

SPOKE SET, REAR

(164-25304-00-00)

Unavailable

3

SPOKE SET, INNER 2

(164-25396-90-00)

Unavailable

4

SPOKE SET, OUTER 2

(164-25397-90-00)

Unavailable

5

RIM (1.40-18)

94414-18545-00

$116.99

6

275X18 YOKO Y93C

(94127-18312-00)

Unavailable

7

TUBE

(94227-18010-00)

Unavailable

8

BAND, RIM (2J4)

94340-18086-00

$17.99

9

SPACER

90560-12145-00

$20.99

10

FLANGE, SPACER

109-25315-00-00

$7.99

11

BRG.

93306-30101-00

$36.99

12

OIL SEAL (21X37X7-102)

93104-21016-00

$14.99

13

BEARING

93306-30102-00

$39.99

14

O-RING (102)

93210-41041-00

$7.49

15

DAMPER, CLUTCH

304-25364-01-00

$27.99

16

BRAKE SHOE PLT ASSEMBLY

(339-25320-10-00)

Unavailable

17

GROMMET (397)

90480-10068-00

Unavailable

18

LABEL, INDICATOR

(437-25134-00-00)

Unavailable

19

CAM SHAFT

122-25351-02-00

Unavailable

20

BRAKE SHOE KIT

2JL-W253E-20-00

Unavailable

21

SPRING, TENSION (566).

90506-16150-00

Unavailable

22

LEVER, CAM SHAFT

122-25355-00-00

Unavailable

23

BOLT, HEXAGON

97017-06030-00

Unavailable

24

WASHER, PLAIN (646)

92990-06600-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

NUT, HEXAGON

95380-06600-00

Unavailable

27

SHAFT, SPROCKET

167-25387-00-00

Unavailable

28

CLUTCH, HUB

296-25366-01-33

Unavailable

29

SPROCKET, DRIVN 35TWHEEL (35T)

183-25435-39-00

Unavailable

29

SPROCKET, DRVN 36T (36T) (183-25436-10-33)

183-25436-39-00

Unavailable

29

SPROCKET, DRVN 37T

183-25437-20-00

Unavailable

30

WASHER

4AW-25412-00-00

Unavailable

31

BOLT(1AJ)

90101-08672-00

Unavailable

32

NUT(3KX)

90179-08639-00

Unavailable

33

CHAIN

9Y582-51115-00

Unavailable

34

JOINT, CHAIN(3KX)

94681-64001-00

Unavailable

35

COLLAR 195253830000

90387-12102-00

Unavailable

36

PULLER, CHAIN

241-25389-10-00

Unavailable

37

NUT, HEXAGON

95380-06600-00

Unavailable

38

BOLT HEXAGON 167253790000

90101-06016-00

Unavailable

39

AXLE, WHEEL

390-25381-01-00

Unavailable

40

BEARING(3BN)

93306-00438-00

Unavailable

41

CIRCLIP(5U8)

99009-42500-00

Unavailable

42

OIL SEAL (30X42X8-102)

93106-30004-00

Unavailable

43

COLLAR 167253860000

90387-18144-00

Unavailable

44

PULLER, CHAIN(L.H)

241-25388-00-00

Unavailable

45

NUT, HEXAGON

90170-18165-00

Unavailable

46

NUT 3532518200

90171-10004-00

Unavailable

47

PIN, COTTER

91490-20025-00

Unavailable

48

BAR, TENSION

27L-25371-00-00

Unavailable

49

BOLT (183-25378-00)

90109-08368-00

Unavailable

50

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

51

. NUT

95380-08700-00

Unavailable

52

CLIP (156-83525-00)

90468-10050-00

Unavailable

53

BOLT (183-25378-00)

90109-08368-00

Unavailable

54

PIN, COTTER

91490-20025-00

Unavailable
