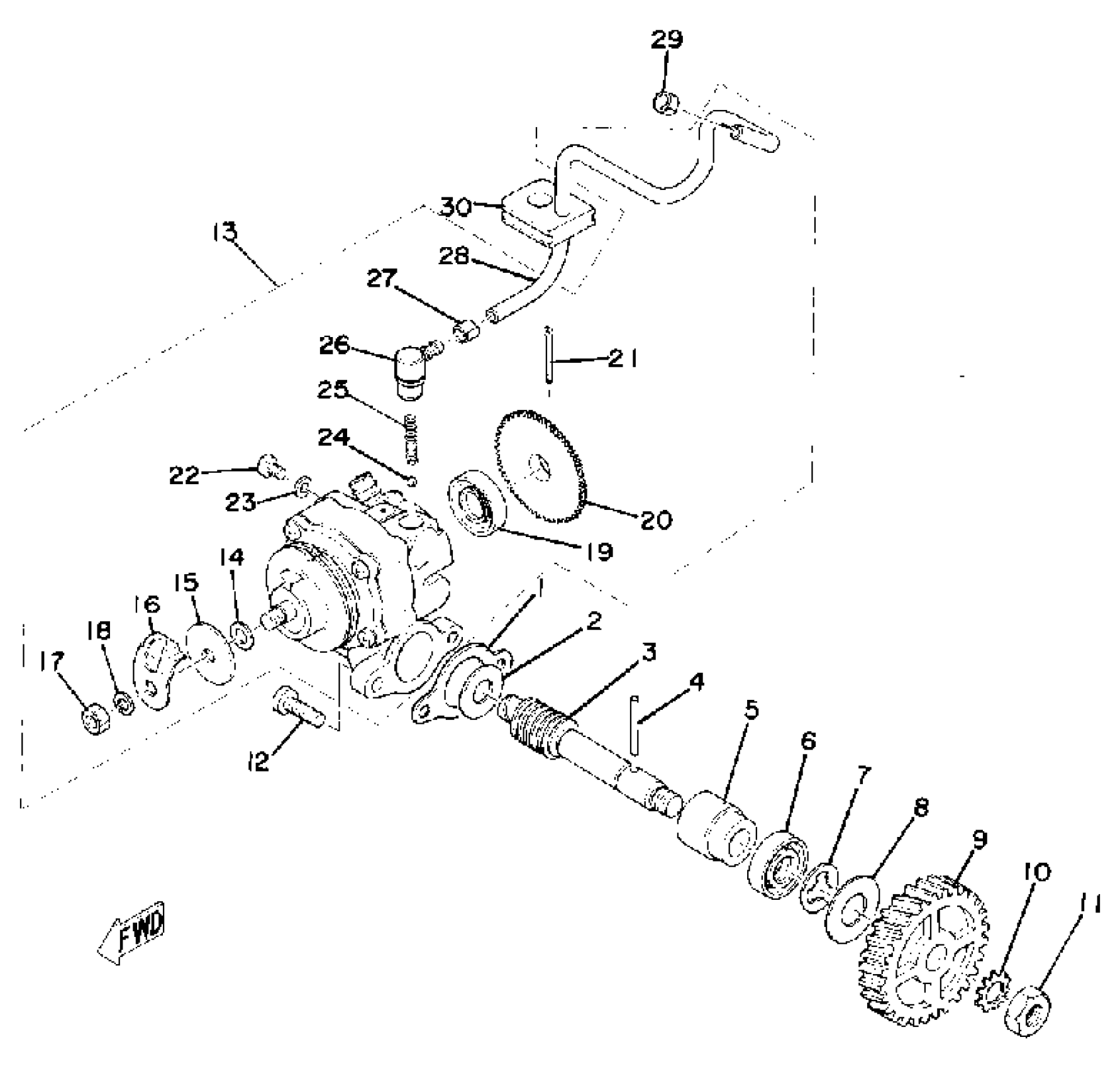

Yamaha RS100C (RS100) 1976 OIL PUMP Diagram

#

Description
Price

1

GASKET, PUMP CASE

126-13116-01-00

$8.99

2

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

3

SHAFT, WORM

275-13175-02-00

$24.99

4

PIN,DOWEL (137)

93603-22028-00

$3.76

5

METAL, WORM SHAFT OUTER

137-13176-00-00

Unavailable

6

OIL SEAL (10X22X7-137)

93101-10002-00

$8.49

7

CIRCLIP(2R6)

99001-08600-00

$8.49

8

WASHER, PLATE(52H)

90201-105J4-00

$9.49

9

GEAR, DRIVE

248-13178-00-00

Unavailable

10

WASHER (688)

92990-08400-00

Unavailable

11

. NUT

95380-08700-00

Unavailable

12

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

13

OIL PUMP ASSEMBLY

(463-13101-01-00)

Unavailable

14

SHIM,PLUNGER

137-13137-00-10

$7.99

15

PLATE, ADJUSTING

137-13138-01-00

Unavailable

16

COVER, AJST PULLEY

(402-13146-00-00)

Unavailable

17

NUT, HEXAGON (663)

95380-05600-00

Unavailable

18

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

19

OIL SEAL (J10)

93101-10090-00

Unavailable

20

PLATE, STARTER

(137-13128-00-00)

Unavailable

21

. PIN, COTTER

91401-12018-00

Unavailable

22

SCREW, BIND

98980-04008-00

Unavailable

23

GASKET 137131870000

90430-04004-00

Unavailable

24

BALL

93505-32002-00

Unavailable

25

SPRING (278-13169-00)

90501-02018-00

Unavailable

26

NOZZLE

353-13552-01-00

Unavailable

27

CLIP (214-13164-00)

90468-02033-00

Unavailable

28

HOSE

(90445-05266-00)

Unavailable

29

CLIP (214-13164-00)

90468-02033-00

Unavailable

30

HOLDER, OIL PIPE

248-13174-00-00

Unavailable
