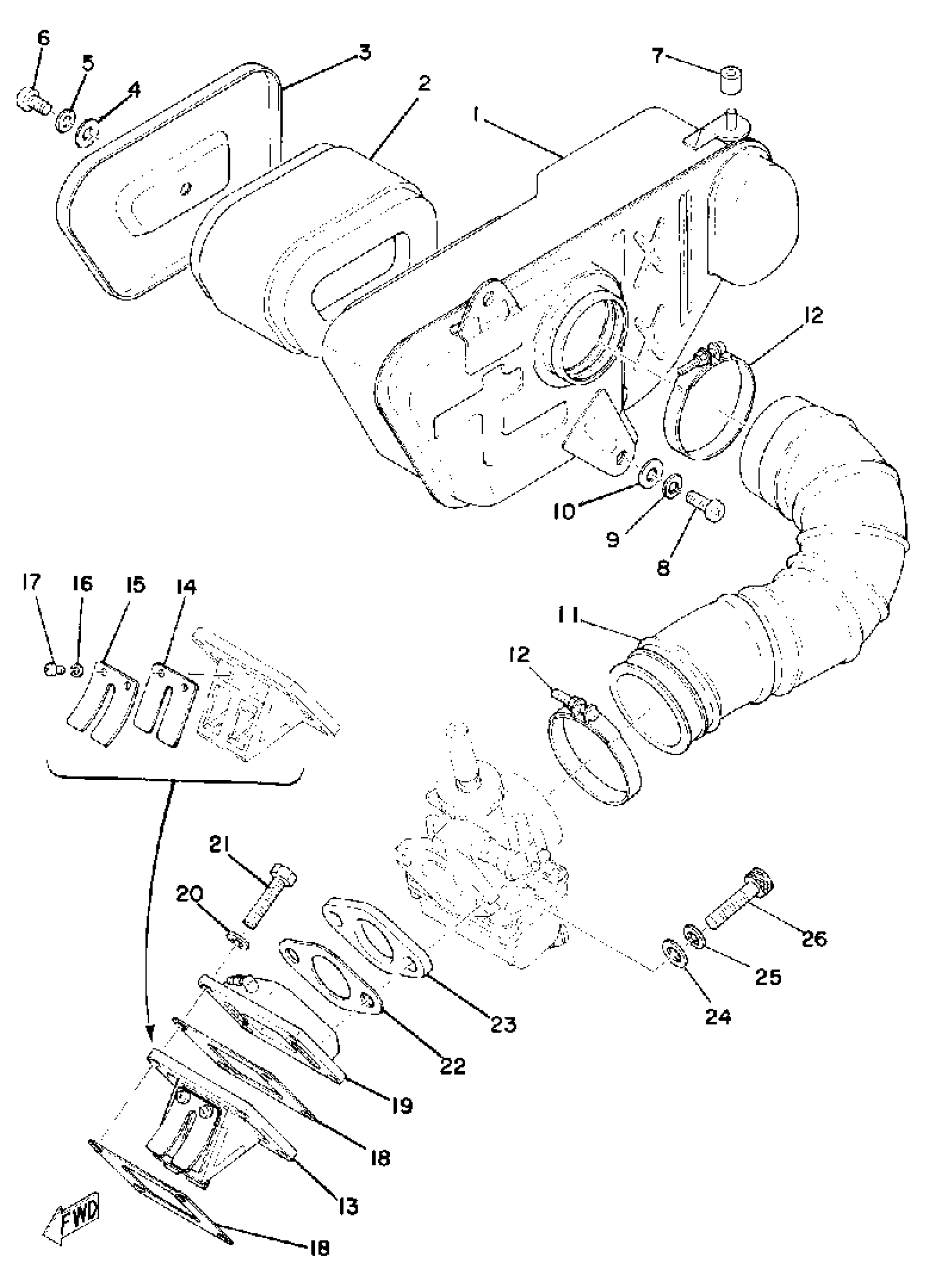

Yamaha RS100C (RS100) 1976 INTAKE Diagram
#
Description
Price
1
CASE, AIR CLEANER 1
(463-14411-01-00)
Unavailable
2
ELEMENT, AIR CLNR
463-14451-09-00
Unavailable
3
CAP, CLEANER CASE 1
(463-14412-00-00)
Unavailable
4
WASHER, PLATE (463)
90202-05057-00
Unavailable
6
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
7
DAMPER, LOCATING 1
353-21778-00-00
Unavailable
9
WASHER, SPRING
92995-06100-00
Unavailable
11
JOINT, AIR CLNR 1
(463-14453-01-00)
Unavailable
14
VALVE, REED
314-13613-01-00
Unavailable
15
. STOPPER, REED VALVE
10X-13616-00-00
Unavailable
16
WASHER, SPRING
92990-03100-00
Unavailable
17
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
18
GASKET, VALVE SEAT
87A-13621-00-00
Unavailable
19
JOINT, CARBURETOR
(463-13565-00-00)
Unavailable
20
WASHER, SPRING
92995-06100-00
Unavailable
21
BOLT, HEXAGON
97017-06025-00
Unavailable
22
GASKET, MANIFOLD
248-13556-71-00
Unavailable
23
MANIFOLD, INTAKE
304-13555-00-00
Unavailable
24
.. WASHER, PLATE
92990-08600-00
Unavailable
25
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
26
BOLT, SOCKET
91317-08030-00
Unavailable
