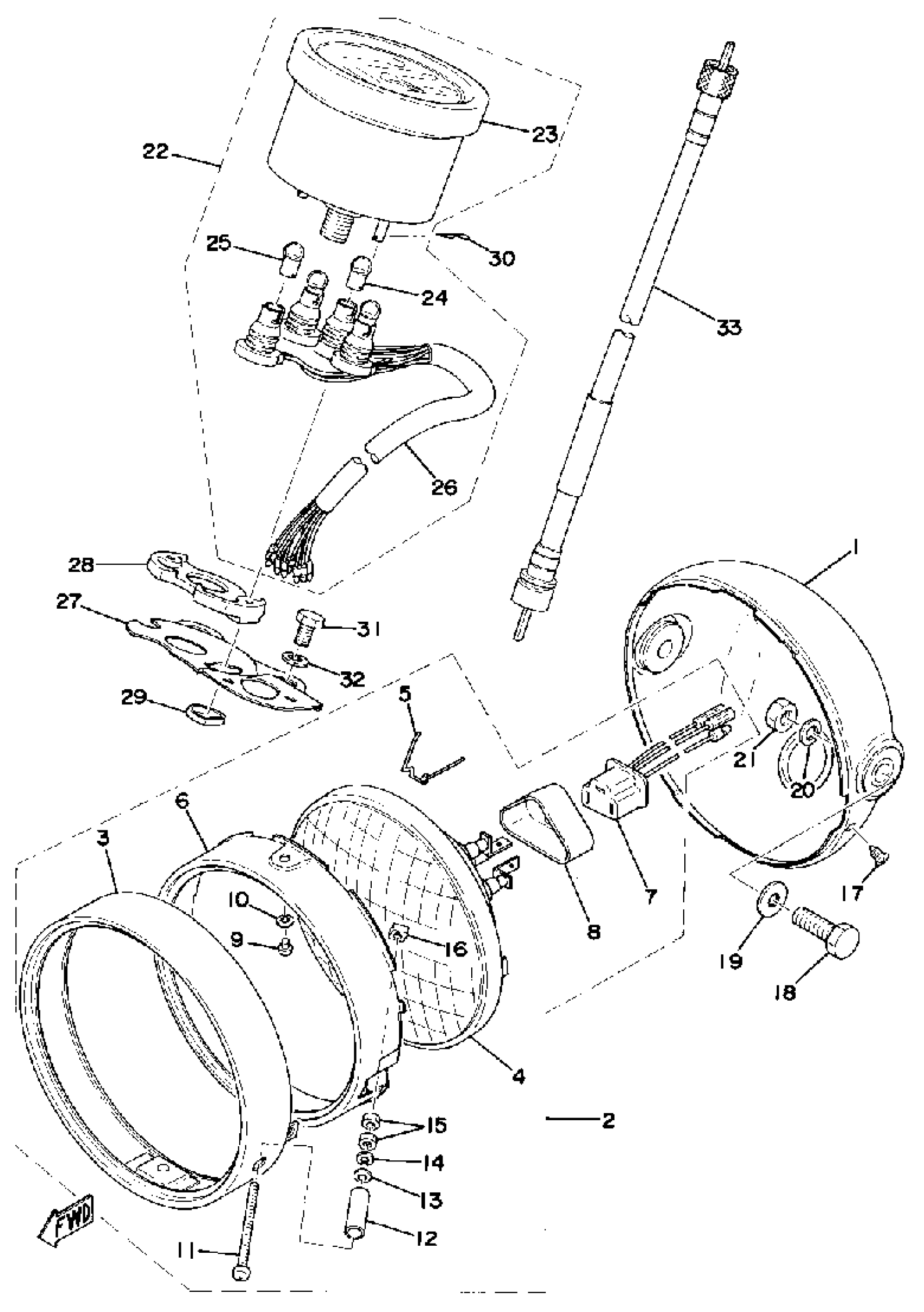

Yamaha RS100C (RS100) 1976 HEAD LAMP - SPEEDOMETER Diagram

#

Description
Price

1

BODY ASSEMBLY, HEADLIGHT

(437-84130-62-33)

Unavailable

3

. RIM, HEADLIGHT

498-84115-60-00

Unavailable

4

. LENS ASSEMBLY

498-84120-61-00

Unavailable

5

SPRING, SET

1UY-84124-00-00

$7.99

6

. RING, RETAINING

498-84195-60-00

Unavailable

7

SOCKET

371-84312-60-00

Unavailable

8

. COVER, SOCKET

341-84397-61-00

Unavailable

9

. SCREW

438-84194-60-00

Unavailable

10

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

11

SCREW 214841316100

90157-04001-00

$8.49

12

COLLAR, SCREW

438-84133-60-00

Unavailable

13

WASHER, PLAIN (646)

92990-04600-00

$5.99

14

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

15

NUT(6TA)

95307-04600-00

$8.49

16

NUT, ADJUST

198-84334-60-00

$7.99

17

SCREW, OVAL HEAD (1A0)

90152-05005-00

Unavailable

18

BOLT

97013-08035-00

Unavailable

19

WASHER, PLAIN

92990-08200-00

Unavailable

20

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

21

NUT(6L2)

95333-08600-00

Unavailable

22

SPEEDOMETER ASSEMBLY

(465-83510-60-00)

Unavailable

23

. DAMPER

336-83513-00-00

Unavailable

24

BULB (6V 1.7W)

388-83517-10-00

Unavailable

25

BULB,(6V3W)

122-83516-10-00

Unavailable

26

SOCKET CORD ASSEMBLY

(465-83520-60-00)

Unavailable

27

BRACKET, METER

(507-83519-00-33)

Unavailable

28

DAMPER

237-83523-00-00

Unavailable

29

WASHER 214835240000

90209-05029-00

Unavailable

30

CLIP (156-83525-00)

90468-10050-00

Unavailable

31

BOLT(JA9)

90101-08691-00

Unavailable

32

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

33

SPEEDOMETER CABLE ASSY

336-83550-02-00

Unavailable
