1976 Yamaha RS100 (RS100C) Front Wheel Diagram

← All diagrams

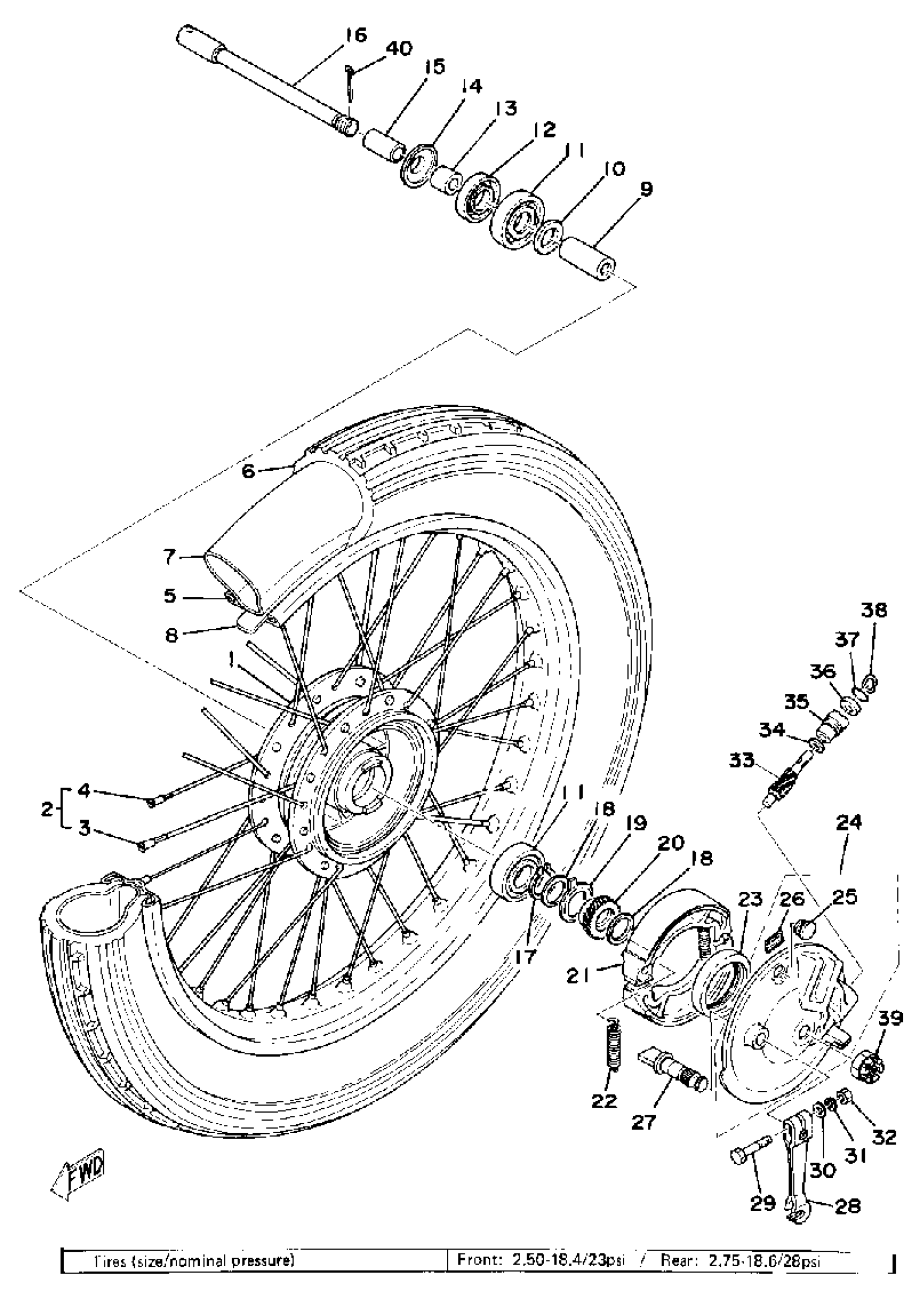

Find the part on the Front Wheel diagram for your 1976 Yamaha RS100 (RS100C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha RS100 (RS100C) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(248-25111-00-38)

1
Out of stock

2

SPOKE SET, FRONT

(248-25104-00-00)

1
Out of stock

3

SPOKE SET, INNER 1

(248-25196-90-00)

1
Out of stock

4

SPOKE SET, OUTER 1

(248-25197-90-00)

1
Out of stock

5

RIM (1.40-18)

94414-18545-00

1

$107.12

In stock

6

250X18 YOKO Y506

(94125-18311-00)

1
Out of stock

7

TUBE (5H5)

94225-18194-00

1

$31.80

In stock

8

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

9

SPACER

90560-12138-00

—

$12.83

In stock

10

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

11

BEARING

93306-30102-00

1
Out of stock

12

OIL SEAL (18X37X8-109)

93102-18008-00

1

$22.31

In stock

13

COLLAR 1832518300

90387-12095-00

1

$4.63

In stock

14

COVER, HUB DUST

2K5-25118-00-00

1
Out of stock

15

COLLAR

90387-12099-00

1
Out of stock

16

AXLE, WHEEL

(382-25181-01-00)

1
Out of stock

17

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

18

WASHER, PLATE 1832514700

90201-20269-00

—
Out of stock

19

CLUTCH, METER

183-25149-00-00

—
Out of stock

20

GEAR, DRIVE

(248-25135-00-00)

1
Out of stock

21

BRAKE SHOE KIT

2JL-W253E-20-00

—

$25.53

In stock

22

SPRING, TENSION (566).

90506-16150-00

—

$6.98

In stock

23

SEAL,OIL

93105-47007-00

—
Out of stock

24

BRAKE SHOE PLT ASSEMBLY

(437-25120-10-00)

1
Out of stock

25

GROMMET (397)

90480-10068-00

—

$6.77

In stock

26

LABEL, INDICATOR

(437-25134-00-00)

1
Out of stock

27

CAM SHAFT

122-25351-02-00

—

$36.95

In stock

28

LEVER, CAM SHAFT

137-25155-00-00

—

$27.94

In stock

29

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

30

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

31

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

32

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

33

GEAR, METER

214-25138-00-00

—

$18.32

In stock

34

WASHER, PLATE 1832514600

90201-07076-00

—

$5.75

In stock

35

BUSHING

109-25136-00-00

—

$8.78

In stock

36

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

37

O-RING (26H)

93210-14579-00

—

$5.69

In stock

38

RING, STOP

102-25137-00-00

—
Out of stock

39

NUT CASTLE(481)

90171-12005-00

—

$7.35

In stock

40

PIN, COTTER

91490-30030-00

—

$7.15

In stock
