1976 Yamaha RS100 (RS100C) Front Fork Diagram

← All diagrams

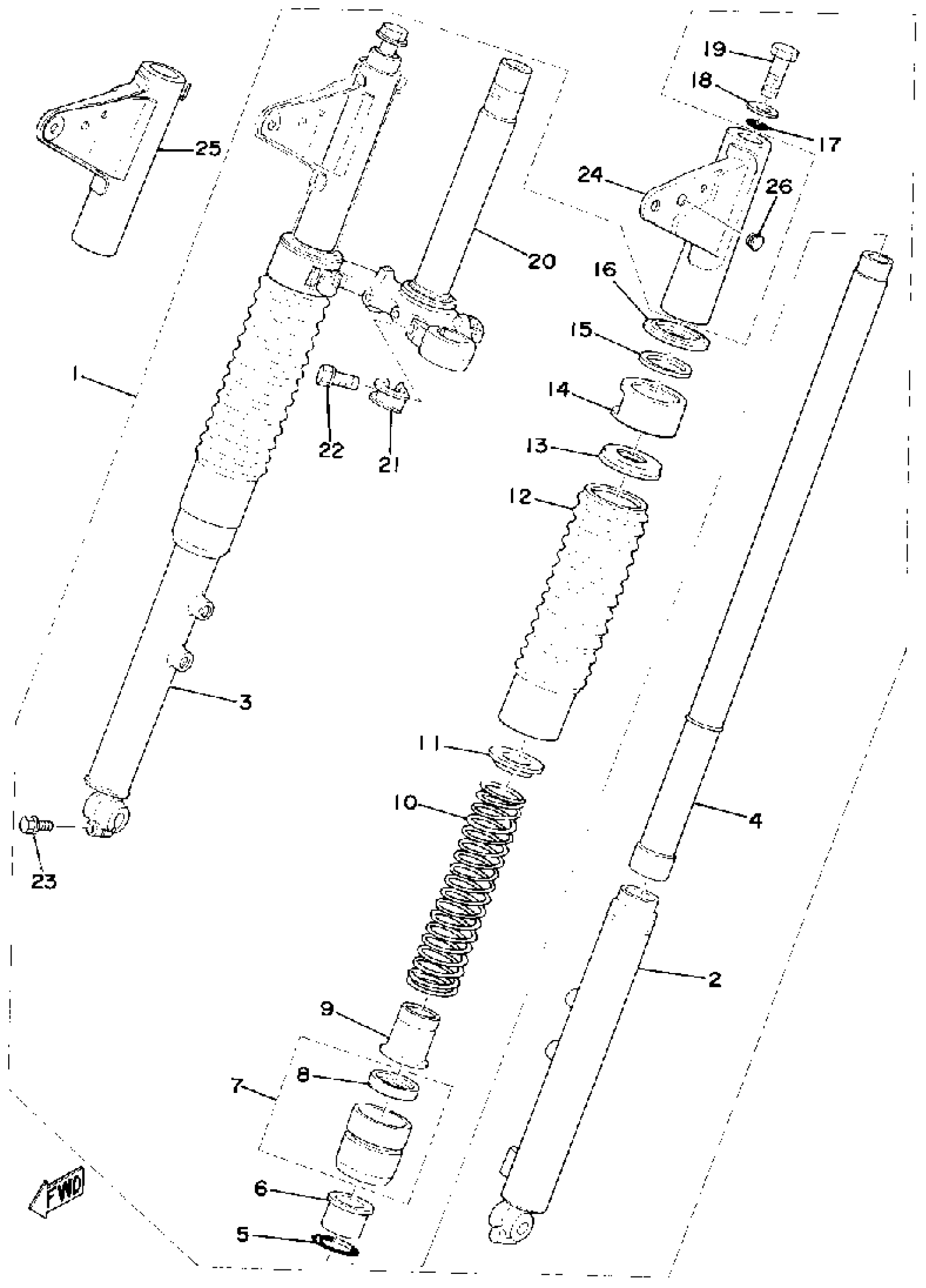

Find the part on the Front Fork diagram for your 1976 Yamaha RS100 (RS100C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha RS100 (RS100C) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(465-23101-40-00)

1
Out of stock

2

TUBE, OUTER 1

(326-23126-90-93)

1
Out of stock

3

TUBE, OUTER 2

(326-23136-90-93)

1
Out of stock

4

TUBE, INNER 1

(241-23124-40-00)

1
Out of stock

5

. O-RING

122-23147-00-00

1
Out of stock

6

METAL, SLIDE 1

(357-23125-90-00)

1
Out of stock

7

OUTER NUT

(212-23150-41-00)

1
Out of stock

8

OIL SEAL (5R6)

93110-27010-00

—

$22.46

In stock

9

SEAT, SPRING LOWER

(122-23143-00-00)

1
Out of stock

10

SPRING, FRONT FORK

(465-23141-40-00)

1
Out of stock

11

SEAT, SPRING UPPER

(124-23142-00-00)

1
Out of stock

12

BOOT,FRONT FORK

183-23191-40-00

1
Out of stock

13

GUIDE, BOOT

(183-23193-40-00)

1
Out of stock

14

COVER, OUTER 1

(183-23122-40-00)

1
Out of stock

15

GASKET

(463-23163-00-00)

1
Out of stock

16

GUIDE, COVER LOWER

(463-23116-00-00)

1
Out of stock

17

GASKET

307-23114-00-00

—
Out of stock

18

. WASHER, CAP

276-23112-50-00

1
Out of stock

19

BOLT, CAP

(307-23111-00-00)

1
Out of stock

20

UNDER BRACKET

(464-23340-01-33)

1
Out of stock

21

. HOLDER, CABLE 1

260-23318-40-00

1
Out of stock

22

BOLT 1

122-23346-02-00

—

$6.25

In stock

23

BOLT, WITH WASHER

(90119-08010-00)

1
Out of stock

24

COVER, UPPER 1

(465-23121-01-33)

1
Out of stock

25

COVER, UPPER 2

(465-23131-01-33)

1
Out of stock

26

PLUG, SPEC''L SHAPE

(90338-09060-00)

1
Out of stock
