Description

Price

1

FLYWHL MAGNETO ASSEMBLY

(465-81300-70-00)

Unavailable

2

ROTOR ASSEMBLY

(1L1-81350-20-00)

Unavailable

3

. COIL, SOURCE

2U7-81312-21-00

Unavailable

4

. COIL, LIGHTING 1

594-81313-20-00

Unavailable

5

SCREW, PAN HEAD

98517-04025-00

Unavailable

6

PLATE, TIMING

(353-81332-20-00)

Unavailable

7

CONTACT BREAKER ASSY

2A6-81321-20-00

$49.99

8

SCREW, PAN HEAD

110-81346-21-00

$5.49

9

CONDENSER

1K8-81325-20-00

$63.99

10

. LUBRICATOR

116-81331-20-00

Unavailable

11

SCREW, PAN HEAD

110-81346-21-00

$5.49

12

LEAD WIRE ASSEMBLY

(465-81315-70-00)

Unavailable

13

. CLAMP

109-81328-11-00

Unavailable

14

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

15

SCREW, FLAT

98707-05012-00

$1.71

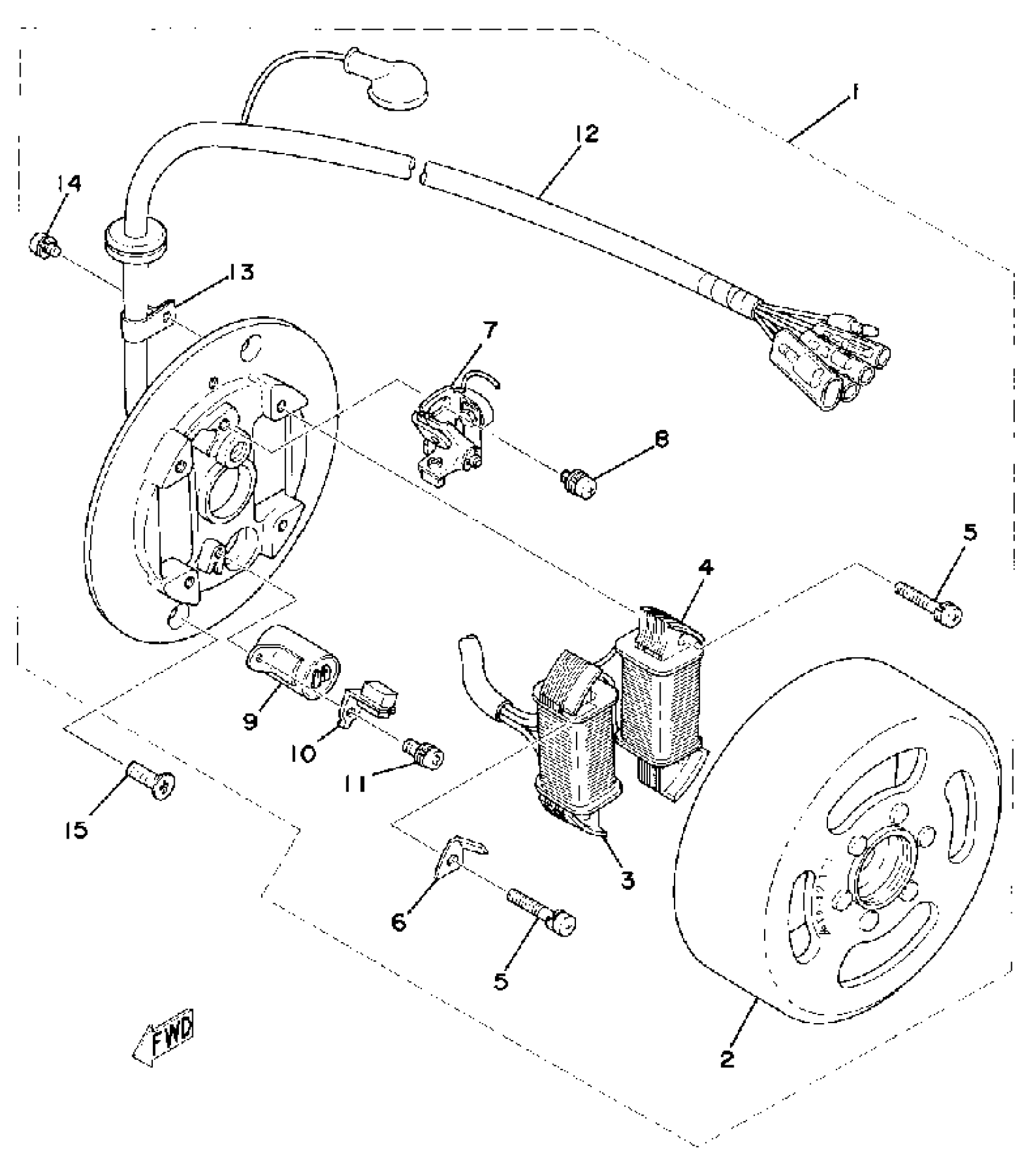

Yamaha RS100C (RS100) 1976 FLYWHEEL MAGNETO Diagram

FLYWHL MAGNETO ASSEMBLY

ROTOR ASSEMBLY

. COIL, SOURCE

. COIL, LIGHTING 1

SCREW, PAN HEAD

PLATE, TIMING

CONTACT BREAKER ASSY

SCREW, PAN HEAD

CONDENSER

. LUBRICATOR

SCREW, PAN HEAD

LEAD WIRE ASSEMBLY

. CLAMP

SCREW, PAN HEAD(3XP)

SCREW, FLAT
