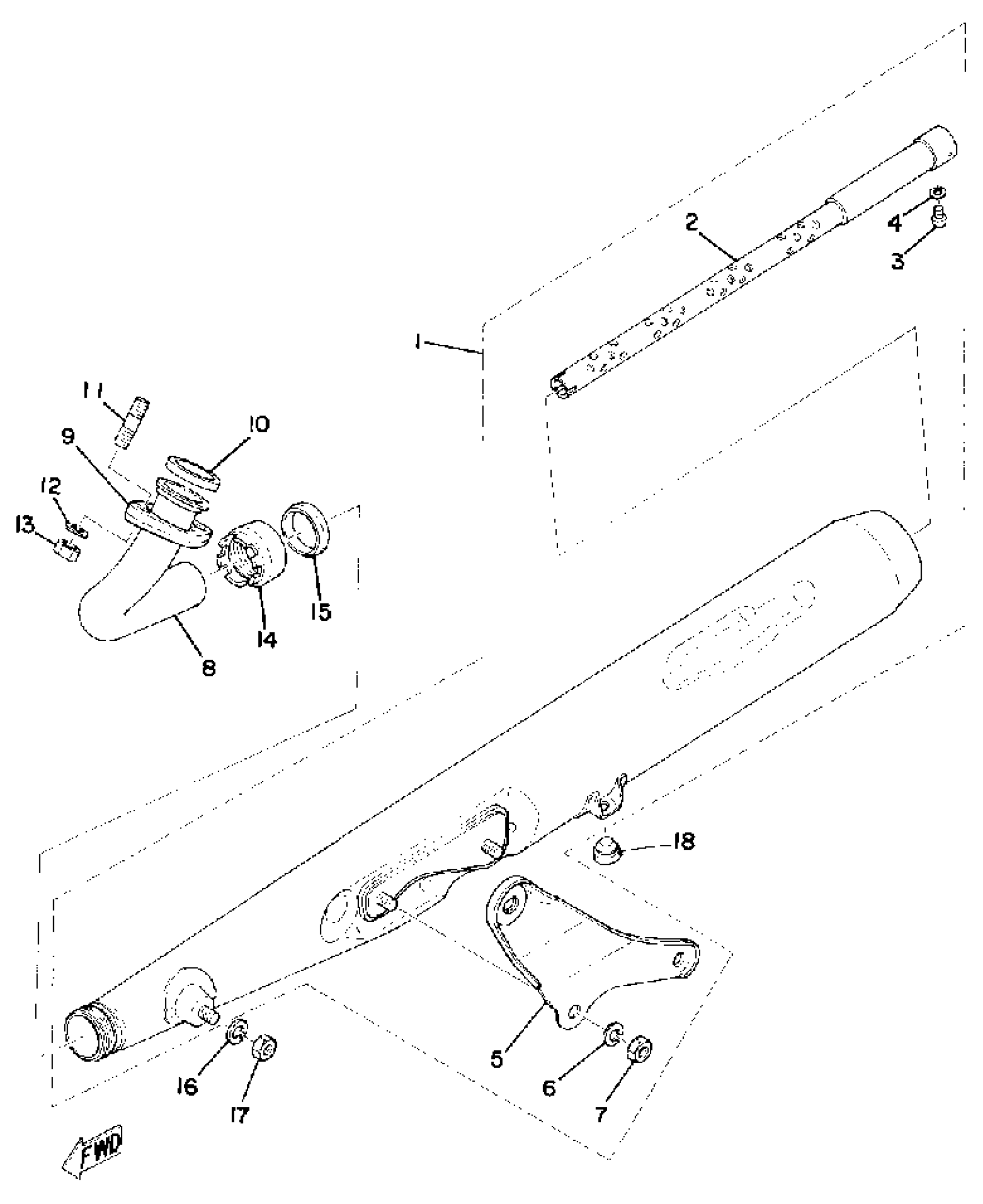

Yamaha RS100C (RS100) 1976 EXHAUST Diagram
#
Description
Price
1
MUFFLER ASSEMBLY L
(463-14710-01-00)
Unavailable
2
SILENCER, EXHAUST
(463-14753-00-00)
Unavailable
3
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
5
STAY, MUFFLER 1
(336-14771-00-00)
Unavailable
8
PIPE, EXHAUST L
(463-14611-03-00)
Unavailable
9
NUT, RING
(307-14612-00-00)
Unavailable
11
BOLT, STUD (17W)
90116-08408-00
Unavailable
14
NUT, MUFFLER JOINT
132-14713-00-00
Unavailable
15
GASKET, MUFFLER
3NA-14714-01-00
Unavailable
18
STOPPER
1M3-27114-00-00
Unavailable
