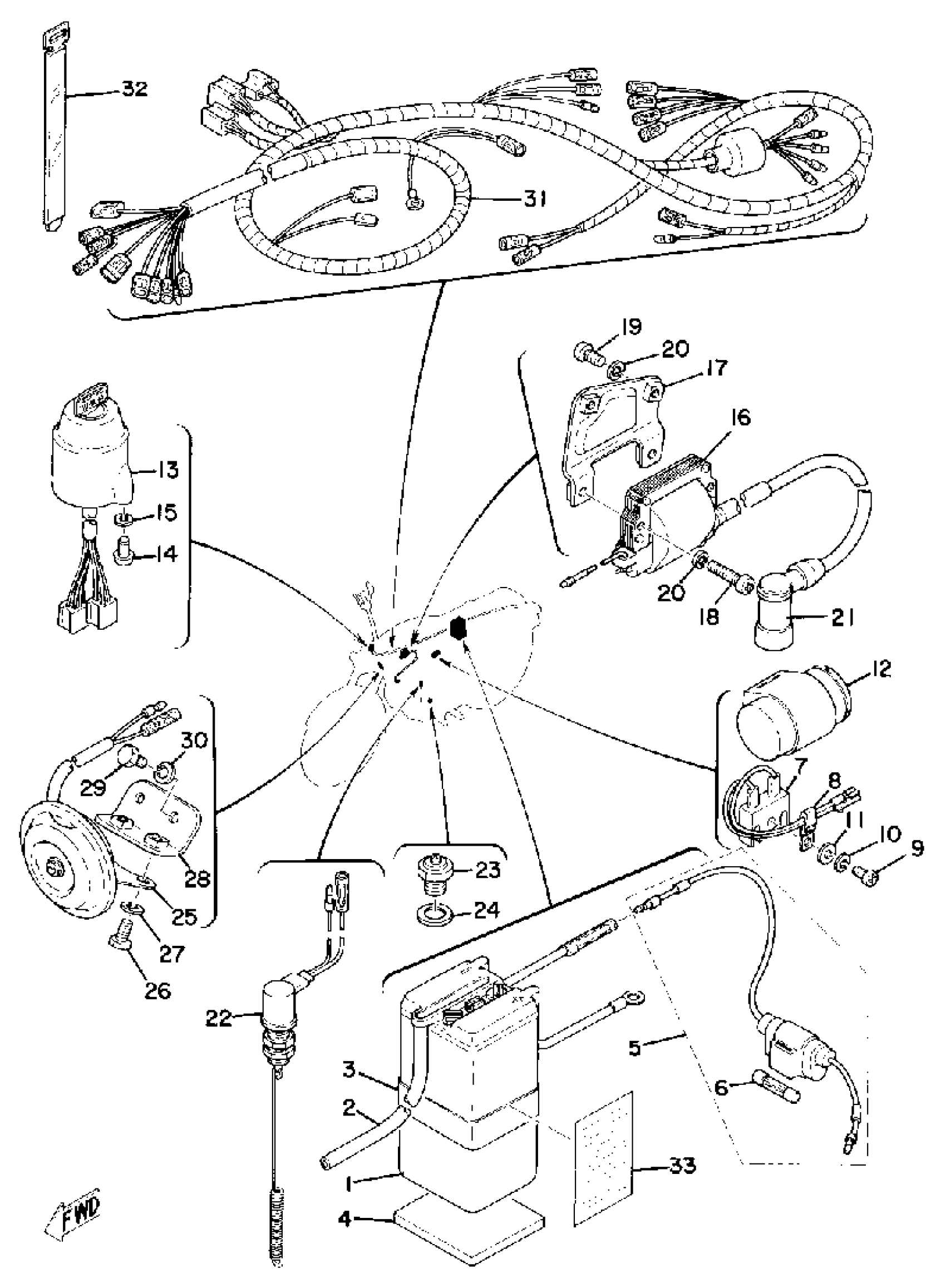

Yamaha RS100C (RS100) 1976 ELECTRICAL Diagram

#

Description
Price

1

6N4A4D YUASA BATTERY

6N4-A4DY0-00-00

Unavailable

2

HOSE (L1500)

90445-084J0-00

$18.99

3

BAND, BATTERY

214-82124-00-00

Unavailable

4

DAMPER, TANK LOCATING

583-24182-00-00

$9.99

5

FUSE HOLDER ASSY

55K-82150-02-00

$14.49

6

FUSE

1A0-82151-00-00

$16.49

7

RECTIFIER ASSY

353-81970-M2-00

Unavailable

8

CLAMP(4MX)

90465-06376-00

$9.49

9

SCREW, PAN HEAD

98580-05020-00

Unavailable

10

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

11

. WASHER, PLAIN

92990-05200-00

Unavailable

12

FLASHER RELAY ASSEMBLY

542-83350-60-00

Unavailable

13

MAIN SWITCH ASSEMBLY

465-82508-20-00

Unavailable

14

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

15

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

16

IGNITION COIL ASSEMBLY

1Y8-82310-40-00

Unavailable

17

BRACKET, IGN COIL

375-82316-01-00

Unavailable

18

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

19

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

PLUG CAP ASSY

56J-82370-00-00

Unavailable

22

STOP SWITCH ASSEMBLY

(336-82530-00-00)

Unavailable

23

NEUTRAL SWITCH ASSY

136-82540-03-00

Unavailable

24

WASHER, PLATE

90201-12790-00

Unavailable

25

HORN

(463-83371-11-00)

Unavailable

26

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

STAY, HORN

(463-83378-10-00)

Unavailable

29

BOLT (661)

97013-06012-00

Unavailable

30

WASHER, SPRING

92995-06100-00

Unavailable

31

WIRE HARNESS ASSEMBLY

(465-82590-20-00)

Unavailable

32

BAND

341-26397-01-00

Unavailable

33

LABEL, BATTERY

40A-82141-G0-00

Unavailable
