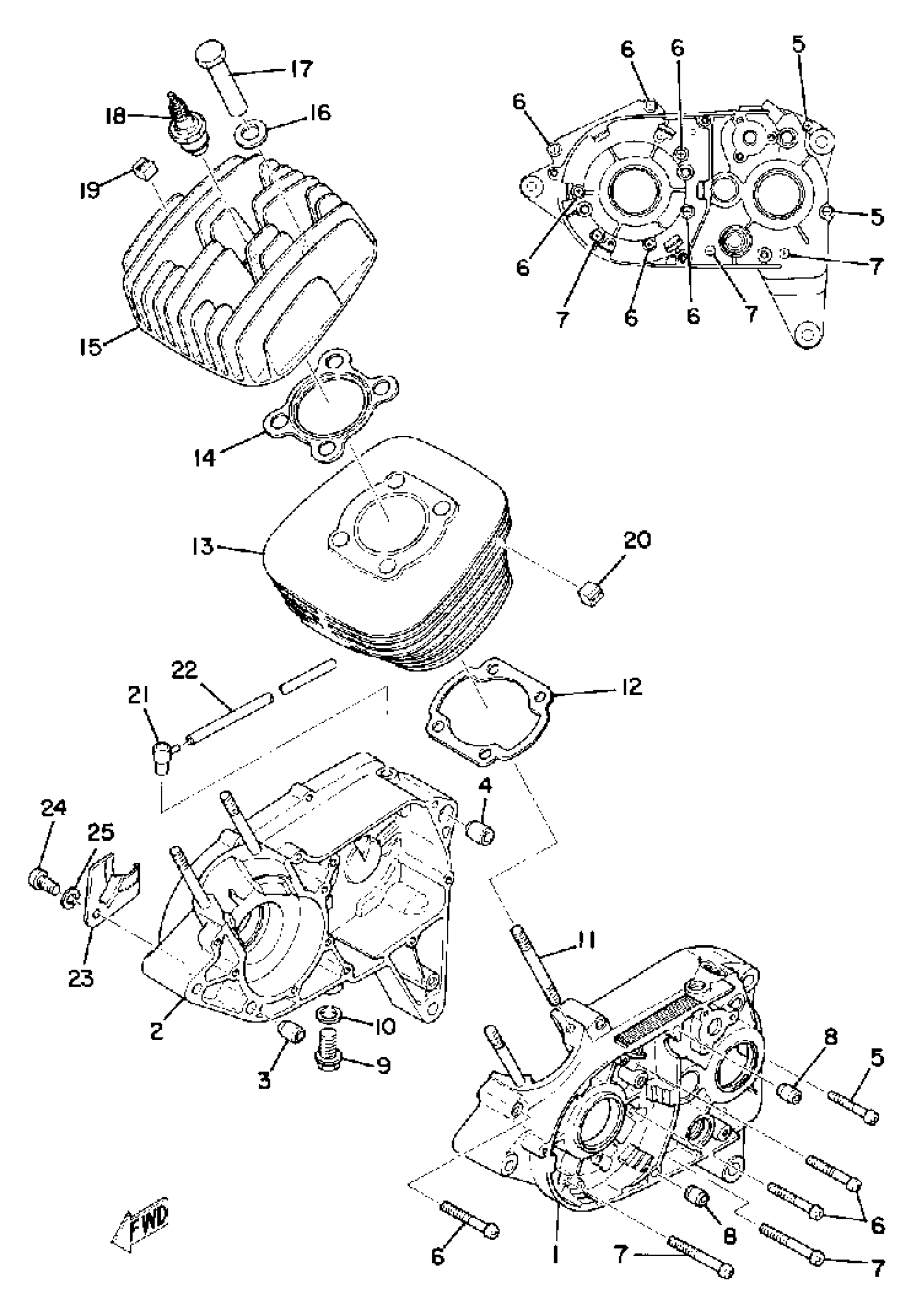

Yamaha RS100C (RS100) 1976 CRANKCASE - CYLINDER Diagram

#

Description
Price

1

CRANKCASE 1

(276-15111-00-00)

Unavailable

2

CRANKCASE 2

(276-15121-03-00)

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

PIN, DOWEL

99530-14016-00

$3.80

5

SCREW PAN HEAD

98580-06040-00

$8.49

6

SCREW PAN HEAD

98580-06545-00

$5.60

7

SCREW, PANHED (GC2)

98580-06555-00

Unavailable

8

PIN, DOWEL(3VD)

99530-10114-00

$2.55

9

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

10

GASKET (3JD1)

90430-12207-00

$7.99

11

BOLT (248-11361-00)

90116-08064-00

$7.49

12

GASKET, CYLINDER

3UL-11351-00-00

Unavailable

13

CYLINDER 1

(463-11311-03-00)

Unavailable

14

GASKET,CYLINDER HEAD

305-11181-00-00

Unavailable

15

HEAD, CYLINDER 1

(463-11111-00-00)

Unavailable

16

WASHER PLATE 278111750000

90201-12362-00

Unavailable

17

NUT (3V6)

90179-08303-00

Unavailable

18

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

Unavailable

19

ABSORBER 1

521-11161-01-00

Unavailable

20

ABSORBER

463-11161-01-00

Unavailable

21

BREATHER

583-15371-00-00

Unavailable

22

HOSE

(90446-07009-00)

Unavailable

23

HOLDER (R.H)

304-15128-00-00

Unavailable

24

SCREW,PAN HEAD

98580-08012-00

Unavailable

25

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
