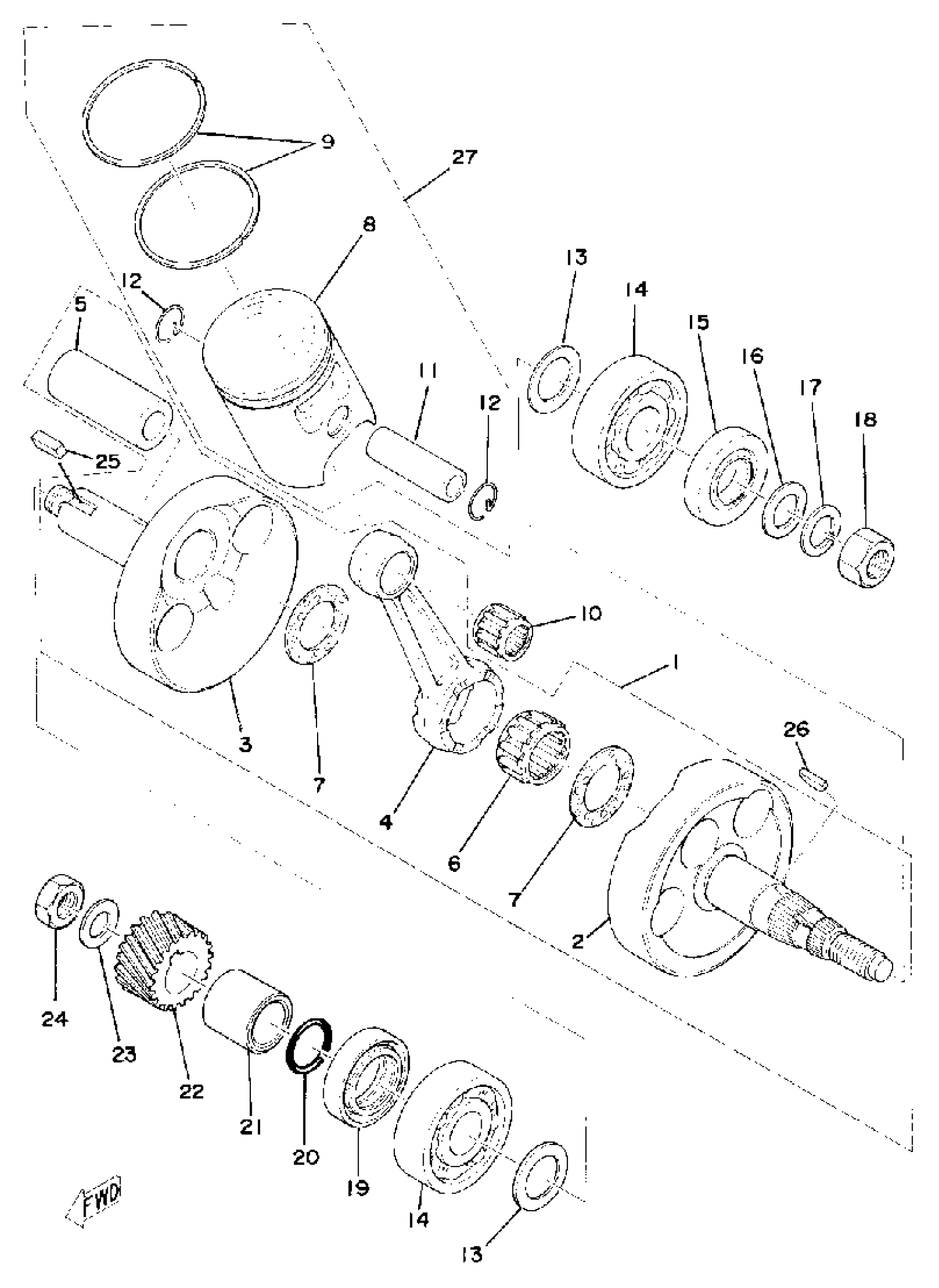

Yamaha RS100C (RS100) 1976 CRANK - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

1M7-11400-00-00

Unavailable

2

CRANK 1

(427-11412-00-00)

Unavailable

3

CRANK 2

(336-11422-01-00)

Unavailable

4

ROD, CONNECTING

1M7-11651-00-00

$114.99

5

PIN, CRANK

5E2-11681-00-00

$32.99

6

BRG,CYL-CAL ROLLER 16G TM

93310-422E7-00

Unavailable

7

WASHER (29L)

90209-22248-00

Unavailable

8

PISTON STD

(463-11631-01-96)

Unavailable

8

PISTON 1 O/S 0.25

(463-11635-01-00)

Unavailable

8

PISTON 2 O/S 0.50

(463-11636-01-00)

Unavailable

8

PISTON 3 O/S 0.75

(463-11637-01-00)

Unavailable

8

PISTON 4 O/S 1.00

(463-11638-01-00)

Unavailable

9

PISTON RING SET (STD)

335-11601-00-00

Unavailable

9

PISTON RING SET (1STO/S)

335-11601-10-00

Unavailable

9

PISTON RING SET (2NDO/S)

335-11601-20-00

Unavailable

9

PISTON RING SET (3RD O/S)

335-11601-30-00

Unavailable

9

PISTON RINGSET 4TH

(335-11601-40-00)

Unavailable

10

BRG,CYL-CAL ROLLER 7G TM

93310-21403-00

Unavailable

11

PIN, PISTON

131-11633-00-00

Unavailable

12

CIRCLIP 131116340000

93450-15023-00

Unavailable

13

SHIM, CRANK 1

136-11561-00-03

Unavailable

13

SHIM, CRANK 1

136-11561-00-04

Unavailable

13

SHIM, CRANK 1

136-11561-00-05

Unavailable

13

SHIM, CRANK 1

136-11561-00-06

Unavailable

13

SHIM, CRANK 1

136-11561-00-07

Unavailable

13

SHIM, CRANK 1

136-11561-00-08

Unavailable

14

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

15

OIL SEAL(4BA)

93102-20447-00

Unavailable

16

WASHER (492)

90201-12535-00

Unavailable

17

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

18

NUT, HEXAGON 98801-12200

90170-12175-00

Unavailable

19

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable

20

O-RING(3KX)

93210-180A6-00

Unavailable

21

COLLAR, DISTANCE 2761613600

90387-20175-00

Unavailable

22

GEAR, PRIMARY DRIVE (19T)

336-16111-00-00

Unavailable

23

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

24

NUT(1EE)

90179-12659-00

Unavailable

25

KEY, STRAIGHT 3531154600

90282-05005-00

Unavailable

26

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

27

PISTON KIT STD

(463-11630-00-00)

Unavailable

27

PISTON KIT 2ND

(463-11630-20-00)

Unavailable
