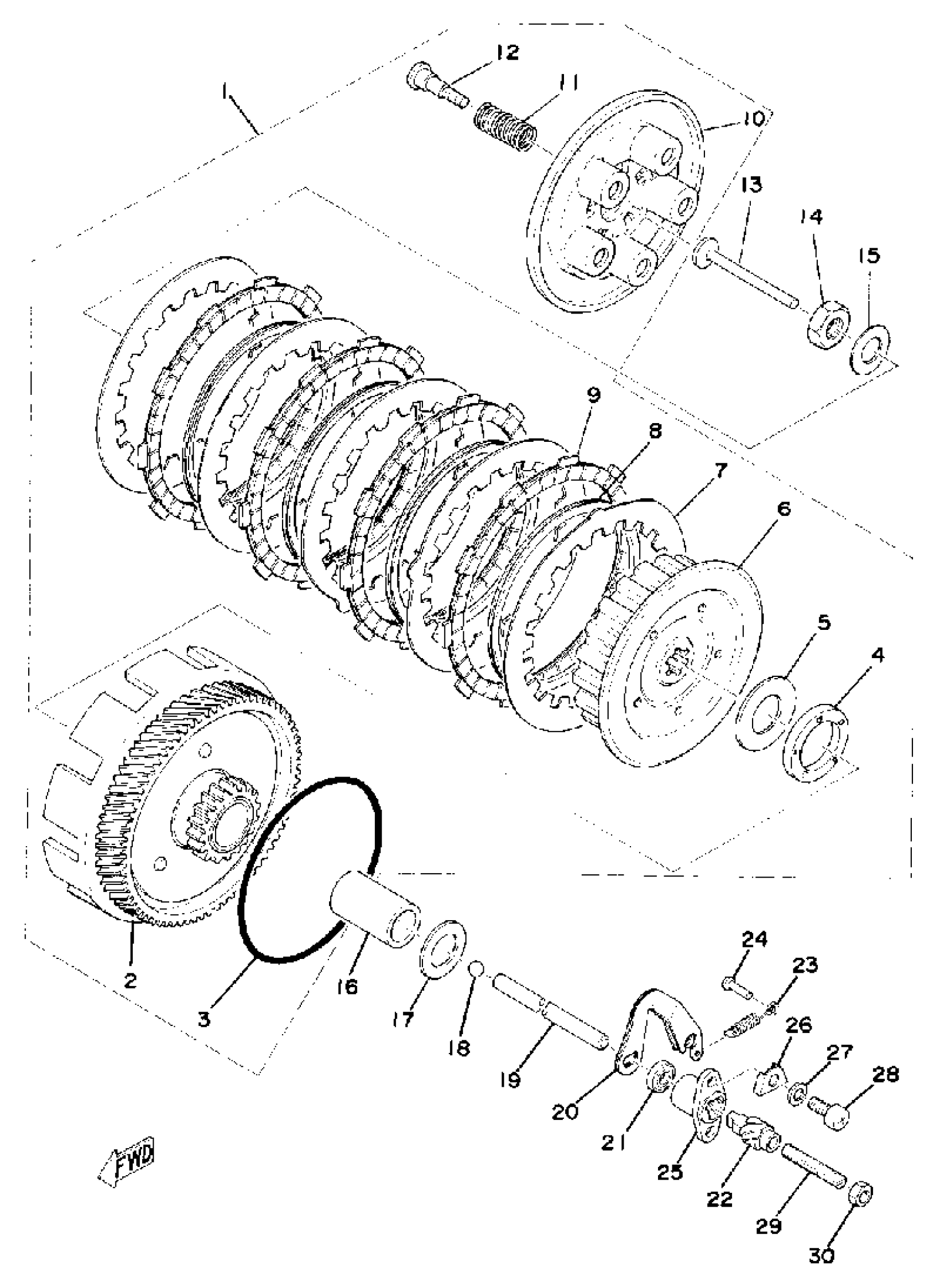

Yamaha RS100C (RS100) 1976 CLUTCH Diagram

#

Description
Price

1

CLUTCH ASSEMBLY

(336-16301-00-00)

Unavailable

2

PRI DRVN GEAR

(336-16150-00-00)

Unavailable

3

RING, FRICTION

132-16369-00-00

$9.99

4

. BEARING, FLAT #41

93341-22302-00

Unavailable

5

PLATE, THRUST 1

(276-16154-00-00)

Unavailable

6

. BOSS, CLUTCH

132-16371-02-00

Unavailable

7

PLATE, CLUTCH 1

336-16324-10-00

$18.49

8

RING, CUSHION

137-16367-00-00

$17.49

9

PLATE, FRICTION

3HA-16321-00-00

$31.99

10

PLATE, PRESSURE

132-16351-00-00

$55.99

11

SPRING (137-16333-00)

90501-20122-00

$4.99

12

SCREW, SPECL SHAPE

(90149-05147-00)

Unavailable

13

ROD,PUSH (1)

137-16356-00-00

$31.99

14

NUT, HEXAGON 1371637700

90170-12060-00

$9.49

15

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

16

SPACER (517)

90560-17146-00

Unavailable

17

PLATE, THRUST

122-16164-00-00

Unavailable

18

BALL

93501-04011-00

Unavailable

19

ROD, PUSH 2

276-16357-00-00

Unavailable

20

LEVER, PUSH

(463-16342-01-00)

Unavailable

21

SEAL 0IL (2V7)

93104-10085-00

Unavailable

22

SCREW, PUSH

241-16341-01-00

Unavailable

23

SPRING TENSION 257163450000

90506-07066-00

Unavailable

24

HOOK, SPRING

132-16346-00-00

Unavailable

25

HOUSING, PUSH SCREW

314-16396-01-00

Unavailable

26

WASHER, PLAIN (646)

92990-06600-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

SCREW, PAN

98507-06014-00

Unavailable

29

BOLT SET 241163430000

90113-06013-00

Unavailable

30

NUT(650)

95380-06700-00

Unavailable
