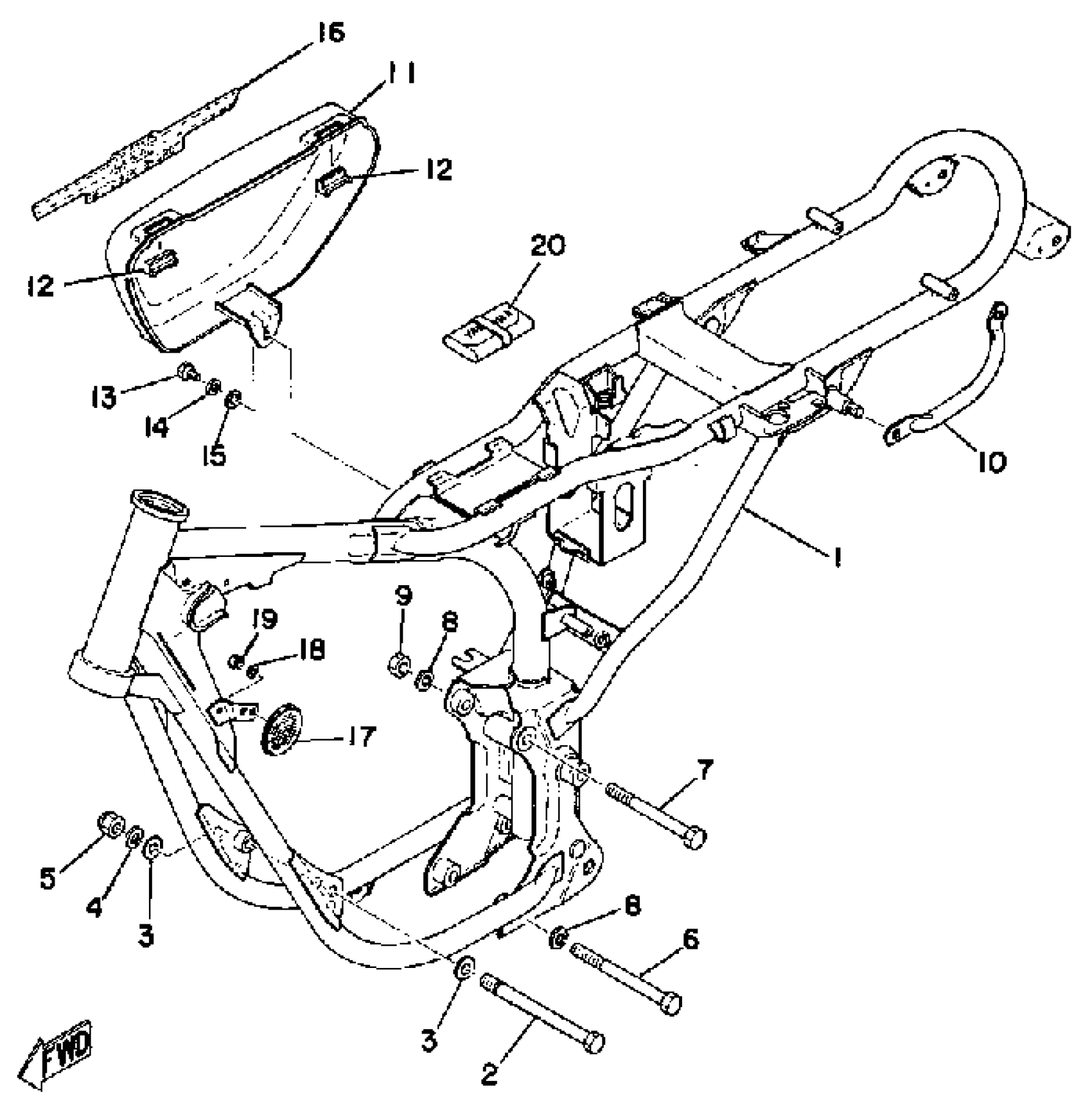

Yamaha RS100B (RS100) 1975 FRAME - SIDE COVER Diagram

#

Description
Price

1

FRAME

(463-21110-02-33)

Unavailable

2

BOLT, WASHER BASED

(90105-08027-00)

Unavailable

3

WASHER (401)

90209-08050-00

$10.49

4

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

5

NUT, U

95617-08100-00

$9.49

6

BOLT

90105-10040-00

$5.60

7

BOLT,HEXAGON

97027-10095-00

Unavailable

8

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

9

NUT(3BM)

95314-10600-00

$2.39

10

HANDLE, STANDING

(307-21165-00-33)

Unavailable

11

COVER, SIDE 1

(463-21711-01-L2)

Unavailable

12

DAMPER, SIDE COVER

466-21717-00-00

$10.99

13

BOLT (661)

97013-06012-00

$5.60

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLATE (371)

90201-06431-00

$5.60

16

EMBLEM 1

(465-21781-00-00)

Unavailable

17

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

18

. WASHER, PLAIN

92990-05200-00

Unavailable

19

NUT, HEXAGON (663)

95380-05600-00

Unavailable

20

TOOL KIT

(463-28100-10-00)

Unavailable
