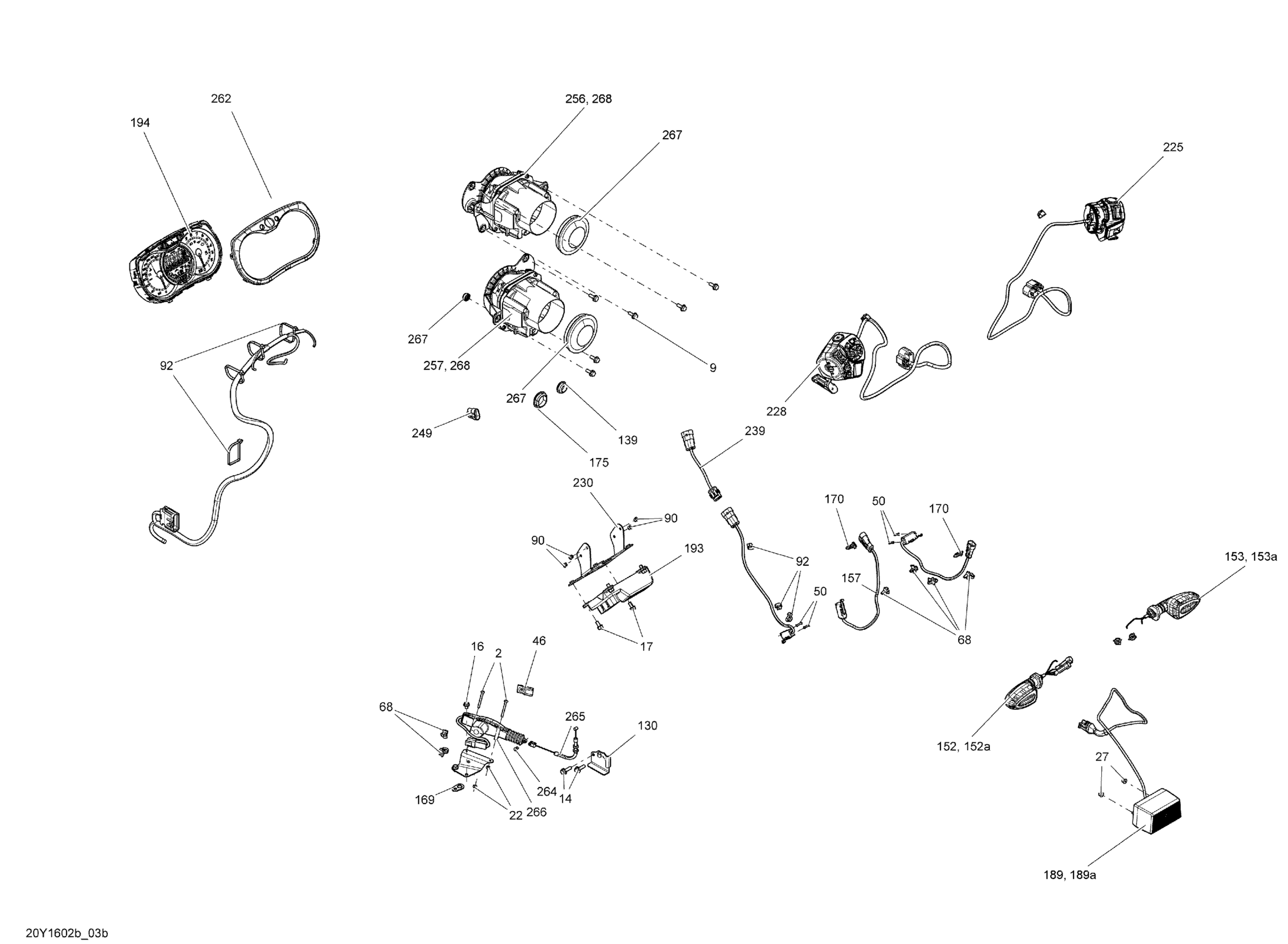

Can-Am RS, 2016 Electrical System - Accessories Diagram

Socket Head Screw M4 X 40 | X

205444086

$1.42

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Forming Screw M6 X 10

210261050

$1.42

Hex. Flange Screw M6 X 12

210261250

$1.56

Elastic Stop Nut M4

232541414

$0.48

Elastic Flange Nut M5

233251494

$1.74

Clip

270000141

$8.33

Pop Rivet

293150150

$2.31

Tie-Rap 173 mm

293750009

$0.85

Pop Rivet 3/16"

390402400

$0.25

Tie-Rap 180 mm

414115200

$0.09

REVERSE CABLE SUPPORT - Call your local BRP dealership

420251565

Unavailable

Cap

705003464

$10.42

LH Rear Turn Signal Ass'y

710001290

$69.00

Bulb 12V/10W, Amber

219800039

Unavailable

RH Rear Turn Signal Ass'y

710001337

$69.00

Brake Pressure Switch Ass'y

710001379

$41.51

Shim

710002024

$6.00

Connector Holder

710002033

$3.22

Rubber Plug

710002858

$2.75

License Plate Light

710003348

$71.00

Bulb 12V 10W | Not Shown

415129261

$2.00

CALIBRATED MODULE - Call your local BRP dealership | SE5

710003750

Unavailable

MULTIFUNCTION GAUGE CLUSTER - Call your local BRP dealership | Includes 491 to 492

710003948

Unavailable

RH Switch Housing

710004582

$570.00

RH Switch Housing | Included 5d to 5d1

710004583

$310.00

LH Switch Housing | SM5

710004161

$570.00

Housing-Switch LH | SE5

710004584

$430.00

Tcm Support | SE5

710004629

$16.00

Harness

710004750

$12.00

Connector Plug

710004901

$13.00

RH BI-HALOGEN BEAM ASS'Y - Call your local BRP dealership

710004951

Unavailable

LH BI-HALOGEN BEAM ASS'Y - Call your local BRP dealership

710004952

Unavailable

Lens | XTP

415129349

$23.05

Pop Rivet 1/8" | SM5

390401600

$5.32

REVERSE CABLE - Call your local BRP dealership | SM5

707000636

Unavailable

Actuator

710011269

$65.00

Cap

219400070

$16.89

Halogen Bulb

219400069

$20.00
