Description

Price

2

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

4

Hex. Flange Screw M6 X 16

207661646

$1.36

5

Hex. Flange Screw M6 X 20

207662044

$2.00

6

Hex. Flange Screw M8 X 130

230683034

$7.51

7

Hex. Flange Elastic Nut M6

233261466

$2.00

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Hex. Flange Elastic Nut M8

233281414

$1.47

10

Panel Nut M8 X 1.25

250100118

$2.09

15

LH Painted Lower Lateral Support

705202626

$85.99

16

RH LOWER SIDE SUPPORT - Call your local BRP dealership

705202680

Unavailable

17

LH UPPER SIDE SUPPORT - Call your local BRP dealership

705202681

Unavailable

23

RH Painted Lateral Support Ass'y

705204510

$159.99

24

Frame

705204866

$1,389.99

25

Latch Support

705205078

$15.49

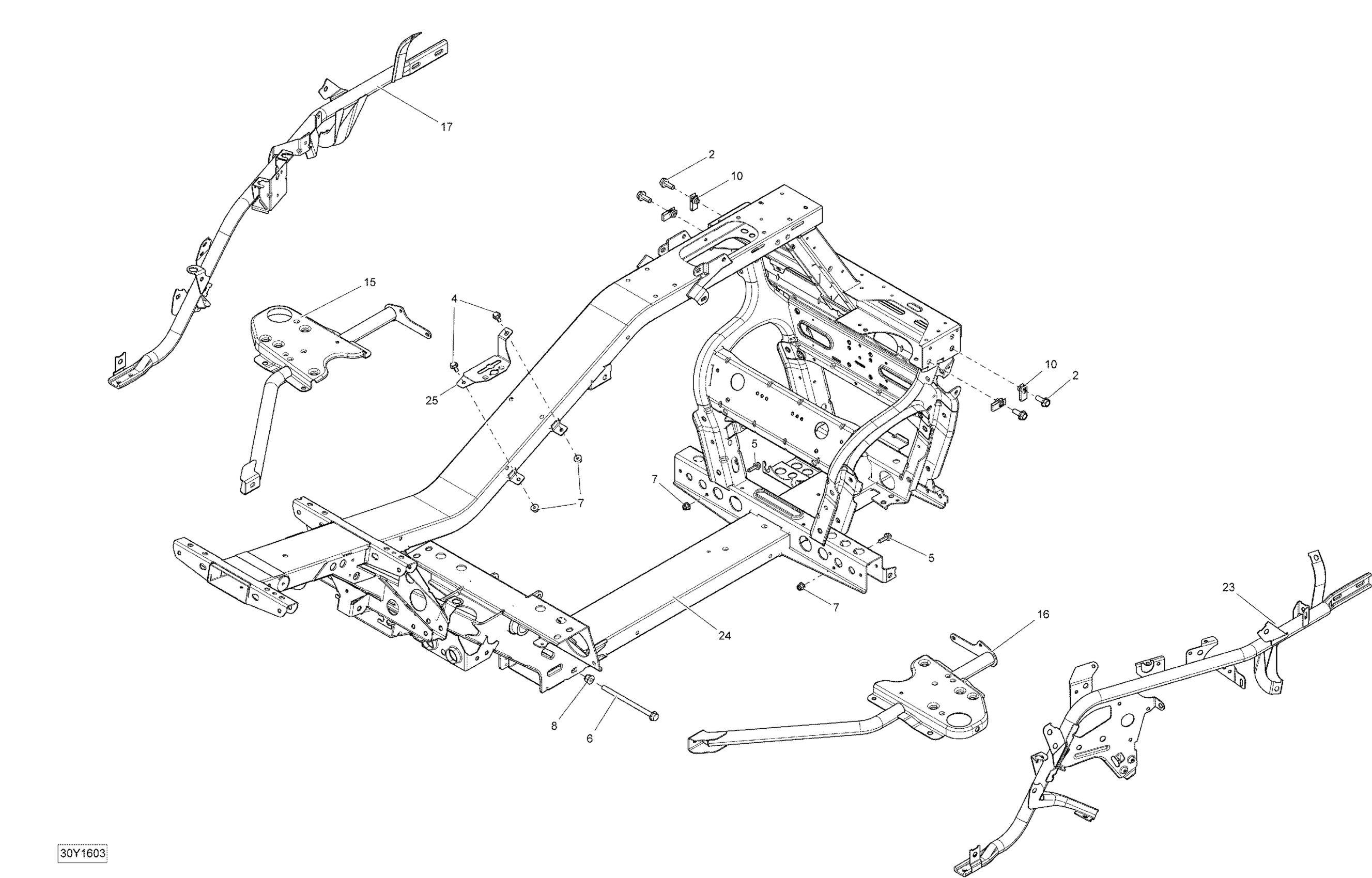

Can-Am RS, 2016 09- Frame Diagram
