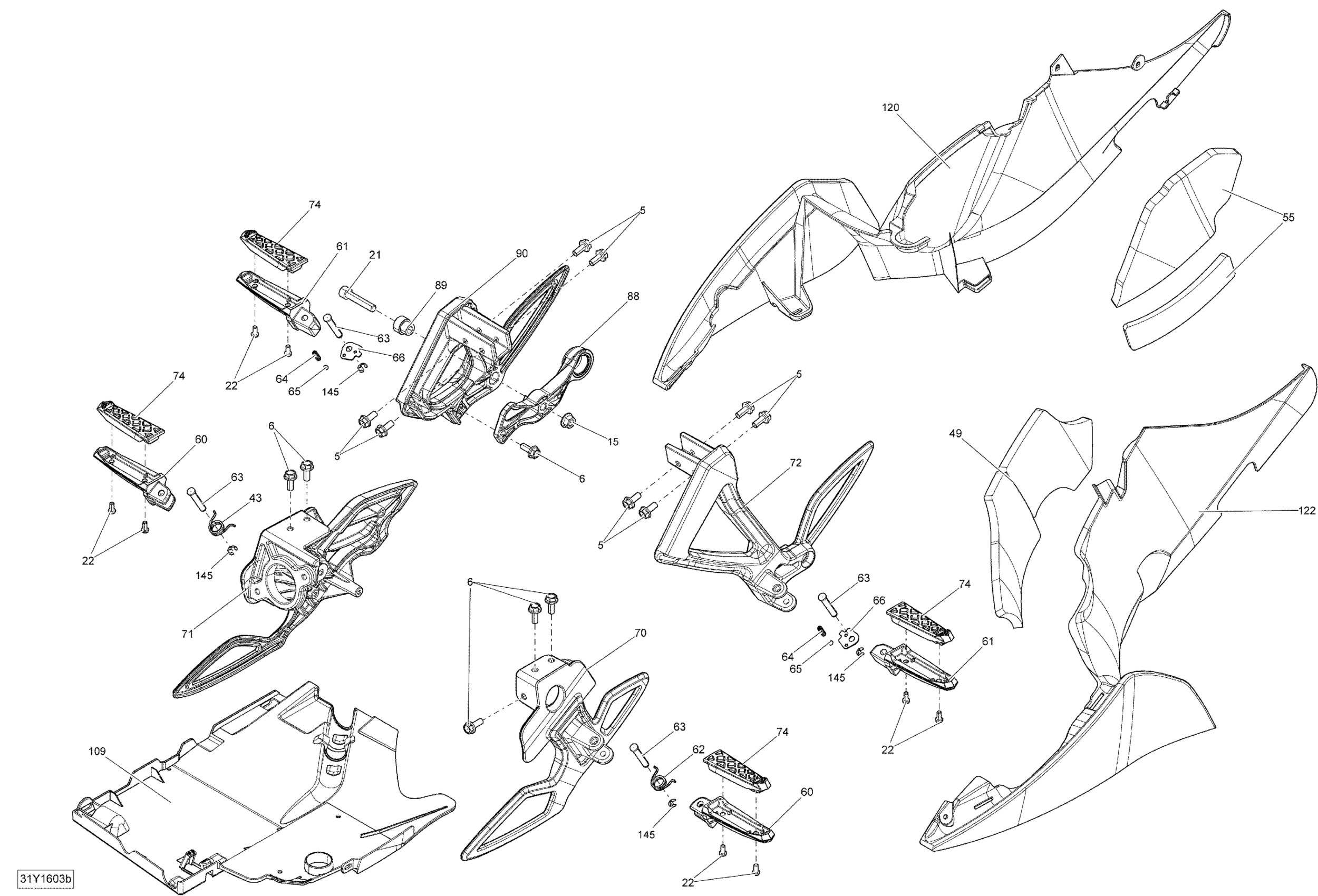

Can-Am RS, 2016 Body And Accessories - Footrest Diagram

#

Description
Price

5

HEX. FLANGED SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership

207581844

Unavailable

6

Hex Screw Washer Head M8 X 20

207582054

$2.61

15

Hex. Flange Nut M10

233101600

$4.39

21

Allen Screw S.GRIP M10 X 50 | RS

244005060

$7.00

22

Allen Plastite Screw #12

250000099

$2.31

43

Spring

705003362

$49.00

49

LH ROCKER PANEL FOAM - Call your local BRP dealership | Model-RS

518324753

Unavailable

55

RH Rocker Panel Foam | Model-RS

518327520

$20.00

60

LH FRONT FOOTREST - Call your local BRP dealership | RS STD

705004180

Unavailable

60

RH FRONT FOOTREST - Call your local BRP dealership | RS STD

705004183

Unavailable

60

LH FRONT FOOTREST - Call your local BRP dealership

705004671

Unavailable

60

RH FRONT FOOTREST - Call your local BRP dealership

705004672

Unavailable

61

LH REAR FOOTREST - Call your local BRP dealership | RS STD

705004186

Unavailable

61

RH REAR FOOTREST - Call your local BRP dealership | RS STD

705004189

Unavailable

61

LH REAR FOOTREST - Call your local BRP dealership

705004680

Unavailable

61

RH REAR FOOTREST - Call your local BRP dealership

705004681

Unavailable

62

Spring | RS STD

705001701

$15.00

63

Retainer Pin | RS STD

705001702

$18.00

64

Spring | RS STD

705001704

$13.00

65

Ball

705001705

$6.00

66

Indexation Plate | RS STD

705001706

$12.00

70

LH FRONT FOOT SUPPORT - Call your local BRP dealership | RS STD

705004179

Unavailable

70

LH FRONT FOOT SUPPORT - Call your local BRP dealership

705004673

Unavailable

71

RH Foot Support | RS STD

705004182

$155.00

71

RH Foot Support

705004674

$245.00

72

LH Rear Foot Support | RS STD

705004185

$150.00

72

LH Rear Foot Support

705004678

$185.00

72

RH REAR FOOTREST SUPPORT - Call your local BRP dealership | RS STD

705006603

Unavailable

72

RH REAR FOOT SUPPORT - Call your local BRP dealership

705003533

Unavailable

74

Rubber Pad | RS STD

705002359

$25.00

88

SUPPORT_EXHAUST B-316 - Call your local BRP dealership | RS STD

705006852

Unavailable

88

SUPPORT_EXHAUST B-322 - Call your local BRP dealership

705006853

Unavailable

89

BUSHING - Call your local BRP dealership | RS

705003765

Unavailable

90

RH REAR FOOTREST SUPPORT - Call your local BRP dealership | RS STD

705006603

Unavailable

90

RH REAR FOOT SUPPORT - Call your local BRP dealership

705003533

Unavailable

109

LH Deflector Pannel | Model-RS

705005749

$28.00

120

RH ROCKER PANEL - Call your local BRP dealership | Model-RS

705006689

Unavailable

122

LH Rocker Panel | Model-RS

705006985

$84.00

145

Circlip | RS STD

705601030

$4.12
