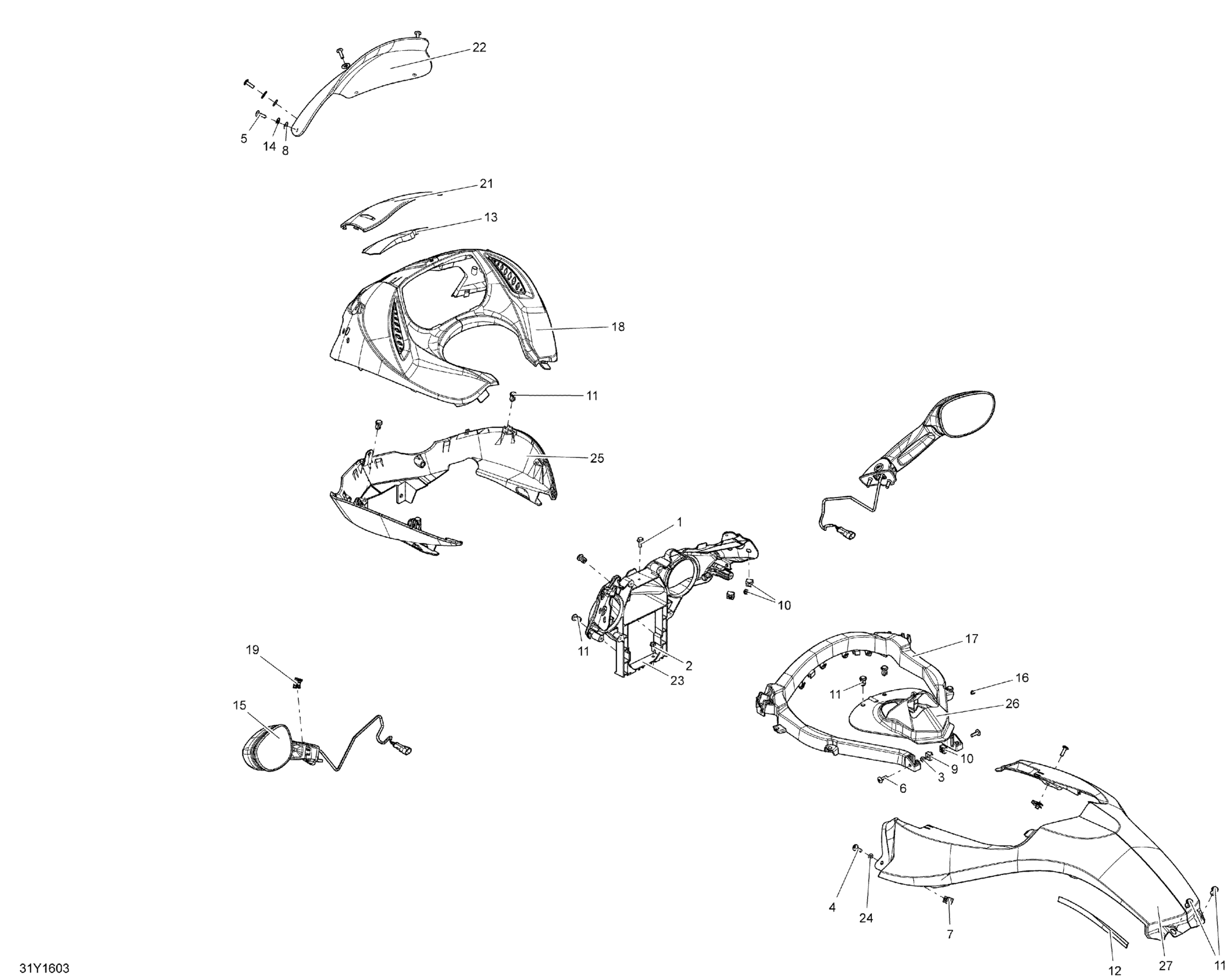

Can-Am RS, 2016 09- Body And Accessories - Console Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

2

Hex. Flange Screw M6 X 16

210261650

$1.67

3

Hex. Elastic Stop Nut M6

232561600

$1.15

4

Torx Truss Screw M6 X 20

250000350

$5.29

5

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

6

Torx Truss Screw M6 X 20

250000488

$2.11

7

Panel Nut M6 X 1.0

250100198

$2.11

8

Rubber Washer 5 mm

250200024

$2.19

9

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

10

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

11

Tuflok Plastic Rivet

293150230

$1.47

12

Gasket, Neoprene 2000Mm Long

219704476

$15.36

13

Guide Chart

705009360

$27.99

14

Stainless Steel Flat Washer

234062670

$2.11

15

LH Mirror Ass'y

705005574

$291.49

15

RH Mirror Ass'y

705005575

$291.49

16

Tie Wrap 142 mm

293750002

$1.25

17

Console Support

705001548

$54.99

18

Upper Console

705002082

$174.99

19

LH MIRROR CAP - Call your local BRP dealership

705002704

Unavailable

19

RH MIRROR CAP - Call your local BRP dealership

705002705

$10.49

21

UPPER CONSOLE DEFLECTOR - Call your local BRP dealership

705002712

$24.99

22

WINDSHIELD - Call your local BRP dealership

219800077

Unavailable

23

BLACK UPPER HEADLAMP - Call your local BRP dealership

705004795

Unavailable

24

Plastic Washer

705003207

$0.80

25

Lower Console

705005882

$104.99

26

MOULDING - Call your local BRP dealership | Model-RS

705007496

Unavailable

27

Steel Black Center Pannel | Model-RS STD Steel Black Met.

705007646

$319.99

27

PANEL_BODY CTRL. B-389 - Call your local BRP dealership

705009959

Unavailable
