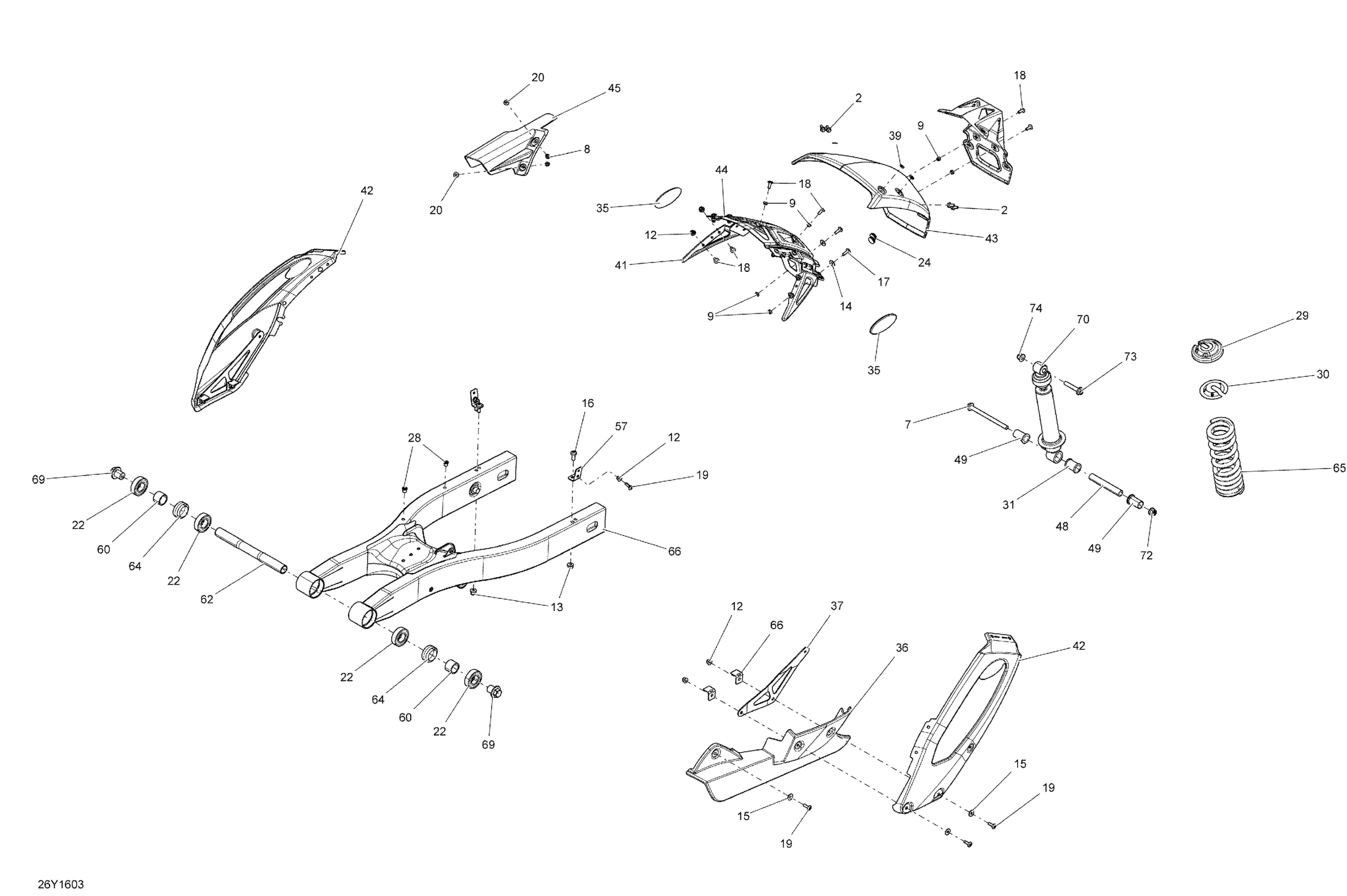

Can-Am RS, 2016 Suspension, Rear Diagram

#

Description
Price

2

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

7

Hex. Flange Screw M10 X 140

230604034

$7.00

8

Nut M6 | Model-Australie, Brezil, Europe

232361600

$3.60

9

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.48

12

Hex. Flange Elastic Nut M6

233261494

$1.26

13

Hex. Flange Elastic Nut M8

233281414

$1.14

14

Flat Washer M6, Stainless

234062600

$0.64

15

Stainless Steel Flat Washer

234062670

$1.74

16

Hex. Screw M8 X 20

236282084

$1.48

17

Torx Truss Screw M6 X 20

250000303

$7.00

18

Torx Truss Screw M6 X 16

250000348

$1.74

19

Torx Truss Screw M6 X 20

250000350

$4.39

20

Torx Screw M6 X 12

250000454

$3.61

22

Ball Bearing

293350115

$11.15

24

Dual Lock Velcro Washer 3/4"

293740028

$4.00

28

Insert

293450275

$9.89

29

SPRING STOPPER - Call your local BRP dealership

503191604

Unavailable

30

CAP - Call your local BRP dealership

503191605

Unavailable

31

Urethane Cushion

503191609

$18.00

35

RED LATERAL REFLECTOR - Call your local BRP dealership | Model-North America

219400236

Unavailable

36

Lower Belt Guard

705002092

$49.00

37

RH Reinforcement Plate

705002981

$34.00

37

LH REINFORCEMENT PLATE - Call your local BRP dealership

705002980

$30.00

39

Plastic Washer

705003207

$1.00

41

Carbon Black RH Rear Fender Reinforc.

705009148

$43.00

41

Carbon Black LH Rear Fender Reinforc.

705009147

$43.00

42

RH REAR FENDER SUPPORT - Call your local BRP dealership

705006085

Unavailable

42

LH Rear Fender Support

705006084

$110.00

42

RH SUPPORT - Call your local BRP dealership

705009146

$100.00

42

LH SUPPORT - Call your local BRP dealership

705009145

Unavailable

43

Steel Black Rear Fender | Model-Steel Black Met. North America

705004660

$205.00

44

Rear Fender Support

705006086

$110.00

45

UPPER BELT GUARD - Call your local BRP dealership

705007213

$45.00

48

Shock Absorber Shaft

706000409

$50.00

49

Spacer

706000410

$14.00

57

Bracket

706000895

$10.00

60

Spacer

706001152

$9.00

62

Swing Arm Axle

706001182

$94.00

64

Sleeve

706001366

$1.00

65

SPRING - Call your local BRP dealership

706001701

Unavailable

66

Swing Arm

706001574

$456.00

69

Bolt M20

706001579

$17.00

70

Shock Absorber

706001110

$122.00

72

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

73

Hex. Flange Screw M10 X 55

207605554

$8.00

74

Hex. Flange Elastic M10 x 1.5

233201464

$6.18
