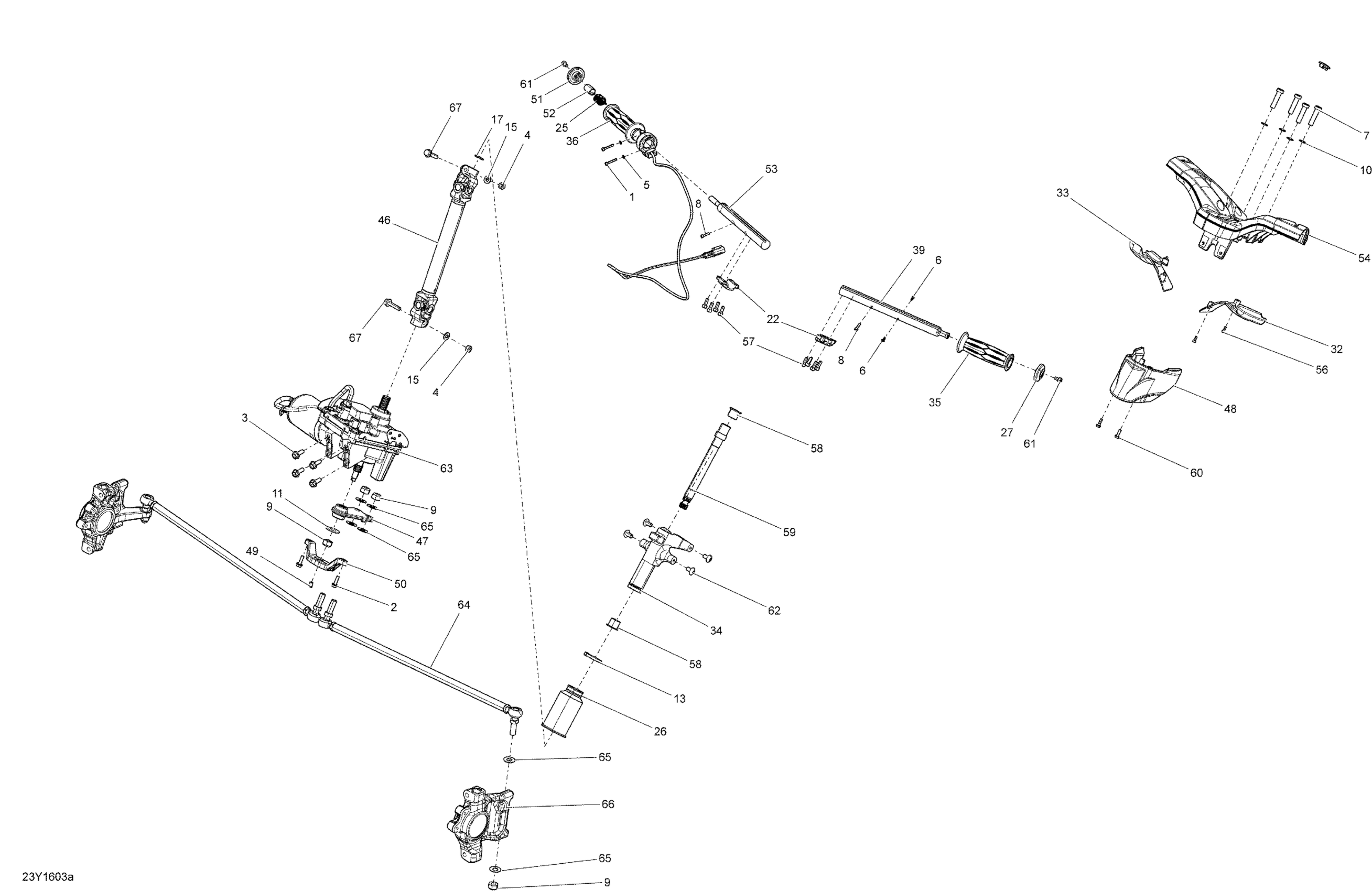

Can-Am RS, 2016 Steering - SM5 Diagram

#

Description
Price

1

Socket Screw, M4 X 25

205042594

$2.00

2

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

3

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

4

Hex. Nut M8

232081417

$3.00

5

Flat Washer 4 mm

234040600

$0.46

6

Torx Cutting Screw, M4 X 10

250000453

$4.00

7

Thin Socket Screw M10 X 40, Scotch Grip | RS

250000456

$8.00

8

Socket Screw, M4 X 16 Scotch Grip

250000494

$2.00

9

Hex. Elastic Hex. Nut M12

250100089

$0.39

10

Stainless Flat Washer, 10 mm

250200105

$1.74

11

Flat Washer, 12 mm

250200113

$4.28

13

Tie-Rap 180 mm

414115200

$0.09

15

Washer

503189157

$3.20

17

O-Ring

709000089

$15.35

22

Handlebar Clamp

709400631

$60.00

25

Spring

709401937

$20.00

26

Bellows

709400790

$13.00

27

Handlebar End Piece LH

709400793

$28.00

32

LH Steering Cover | RS SM5

709400991

$18.00

33

RH STEERING COVER - Call your local BRP dealership | RS

709400992

Unavailable

34

Steering Column Support | RS, Includes Cushions

709401045

$155.00

35

Handle Grip

709401054

$87.00

36

Throttle Handle Grip | RS

709401055

$250.00

39

LH Handlebars

709401152

$61.00

46

Lower Steering Column | RS

709401412

$160.00

47

PITMAN ARM - Call your local BRP dealership

709401417

Unavailable

48

Steering Central Cover | RS

709401442

$18.00

49

Sensor Sleave

709401527

$3.00

50

SENSOR SUPPORT - Call your local BRP dealership

709401574

$27.00

51

Handlebar End-Piece RH

709401800

$27.00

52

Bushing

709401801

$3.00

53

Handlebars

709401938

$41.00

54

CARBON BLACK HANDLEBAR - Call your local BRP dealership | Model-RS S

709401193

Unavailable

54

CRYSTAL SILVER HANDLEBAR - Call your local BRP dealership | RS STD

709400985

Unavailable

56

Screw-Socket Hd.DIN.912 | RS

205041054

$2.00

57

Socket Screw M6 X 16, Scotch Grip

205561644

$0.98

58

Not Available As Spare Part - Friction Washer

Unavailable

59

Steering Colum, Black

709401682

$160.00

60

Hex. Forming Screw M5 X 16

210251650

$0.92

61

Screw-Socket Hd.Din.912

205061054

$2.00

62

Torx Truss Screw M8 X 16

250000746

$2.78

63

Power Steering

709401564

$1,685.00

64

Tie Rod Ass'y

709401820

$159.00

65

Hardened Washer

706200281

$2.34

66

RH Knuckle

709401864

$190.00

66

LH Knuckle

709401865

$196.00

67

Hex. Flange Screw M8 X 35

250001021

$3.61
