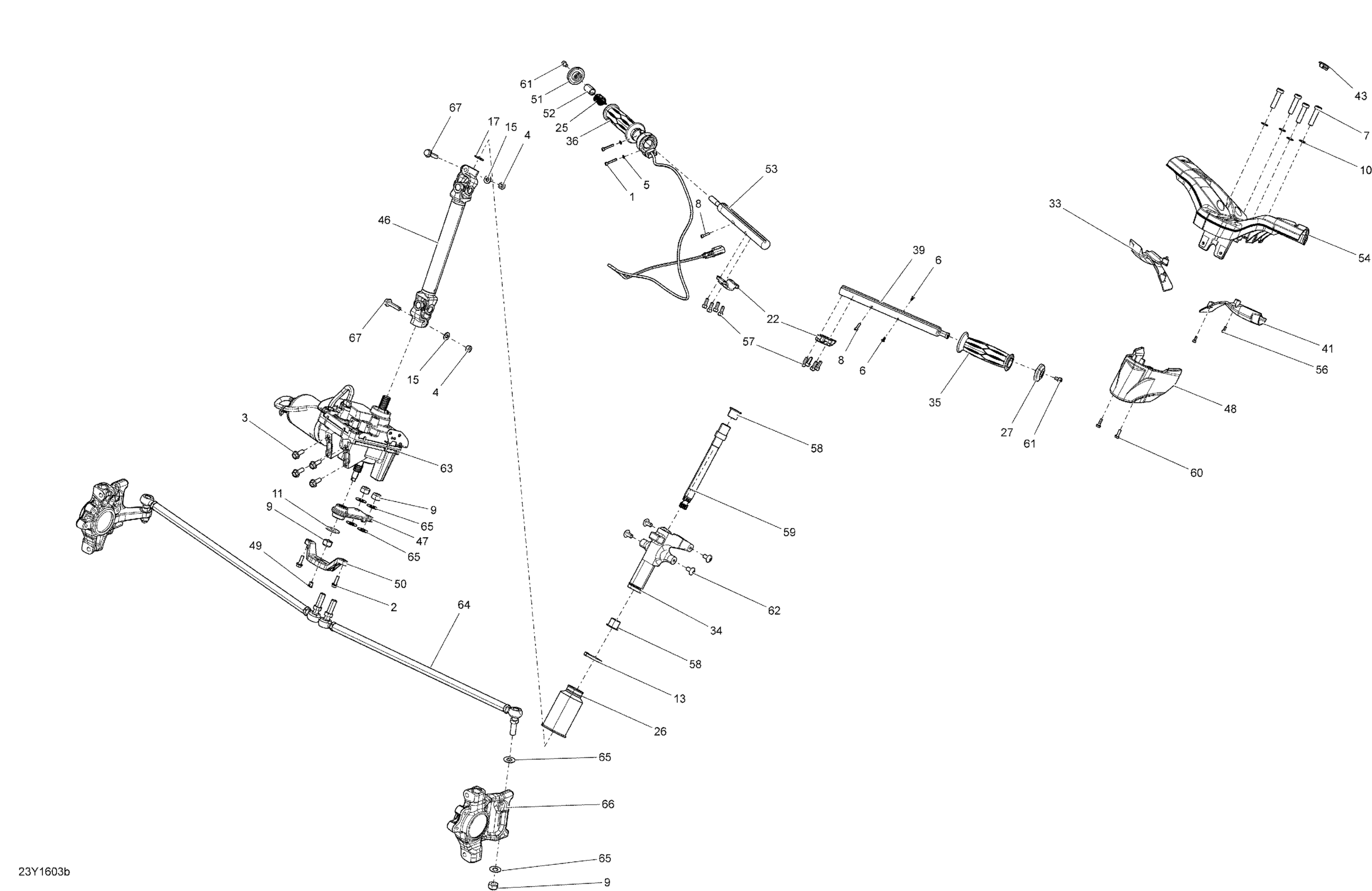

Can-Am RS, 2016 07- Steering - SE5 Diagram

#

Description
Price

1

Socket Screw, M4 X 25

205042594

$2.11

2

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

3

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

4

Hex. Nut M8

232081417

$3.09

5

Flat Washer 4 mm

234040600

$0.55

6

Torx Cutting Screw, M4 X 10

250000453

$3.89

7

Thin Socket Screw M10 X 40, Scotch Grip | RS

250000456

$7.51

8

Socket Screw, M4 X 16 Scotch Grip

250000494

$2.11

9

Hex. Elastic Hex. Nut M12

250100089

$0.46

10

Stainless Flat Washer, 10 mm

250200105

$2.11

11

Flat Washer, 12 mm

250200113

$4.44

13

Tie-Rap 180 mm

414115200

$0.11

15

Washer

503189157

$3.28

17

O-Ring

709000089

$15.89

22

Handlebar Clamp

709400631

$60.49

25

Spring

709401937

$19.99

26

Bellows

709400790

$13.49

27

Handlebar End Piece LH

709400793

$27.99

33

RH STEERING COVER - Call your local BRP dealership | RS

709400992

Unavailable

34

Steering Column Support | RS, Includes Cushions

709401045

$154.99

35

Handle Grip

709401054

$86.99

36

Throttle Handle Grip | RS

709401055

$249.99

39

LH Handlebars

709401152

$61.49

41

LH STEERING COVER - Call your local BRP dealership | RS SE5

709401221

Unavailable

43

Deep Black Cap | Model-RS S

709400923

$14.49

46

Lower Steering Column | RS

709401412

$159.99

47

PITMAN ARM - Call your local BRP dealership

709401417

Unavailable

48

Steering Central Cover | RS

709401442

$18.49

49

Sensor Sleave

709401527

$3.09

50

SENSOR SUPPORT - Call your local BRP dealership

709401574

$26.99

51

Handlebar End-Piece RH

709401800

$26.99

52

Bushing

709401801

$2.53

53

Handlebars

709401938

$41.49

54

CARBON BLACK HANDLEBAR - Call your local BRP dealership | Model-RS S

709401193

Unavailable

56

Screw-Socket Hd.DIN.912 | RS

205041054

$1.90

57

Socket Screw M6 X 16, Scotch Grip

205561644

$1.25

58

Not Available As Spare Part - Friction Washer

Unavailable

59

Steering Colum, Black

709401682

$159.99

60

Hex. Forming Screw M5 X 16

210251650

$1.15

61

Screw-Socket Hd.Din.912

205061054

$1.90

62

Torx Truss Screw M8 X 16

250000746

$3.38

63

Power Steering

709401564

$1,684.99

64

Tie Rod Ass'y

709401820

$158.99

65

Hardened Washer

706200281

$2.85

66

RH Knuckle

709401864

$190.49

66

LH Knuckle

709401865

$195.99

67

Hex. Flange Screw M8 X 35

250001021

$4.44
