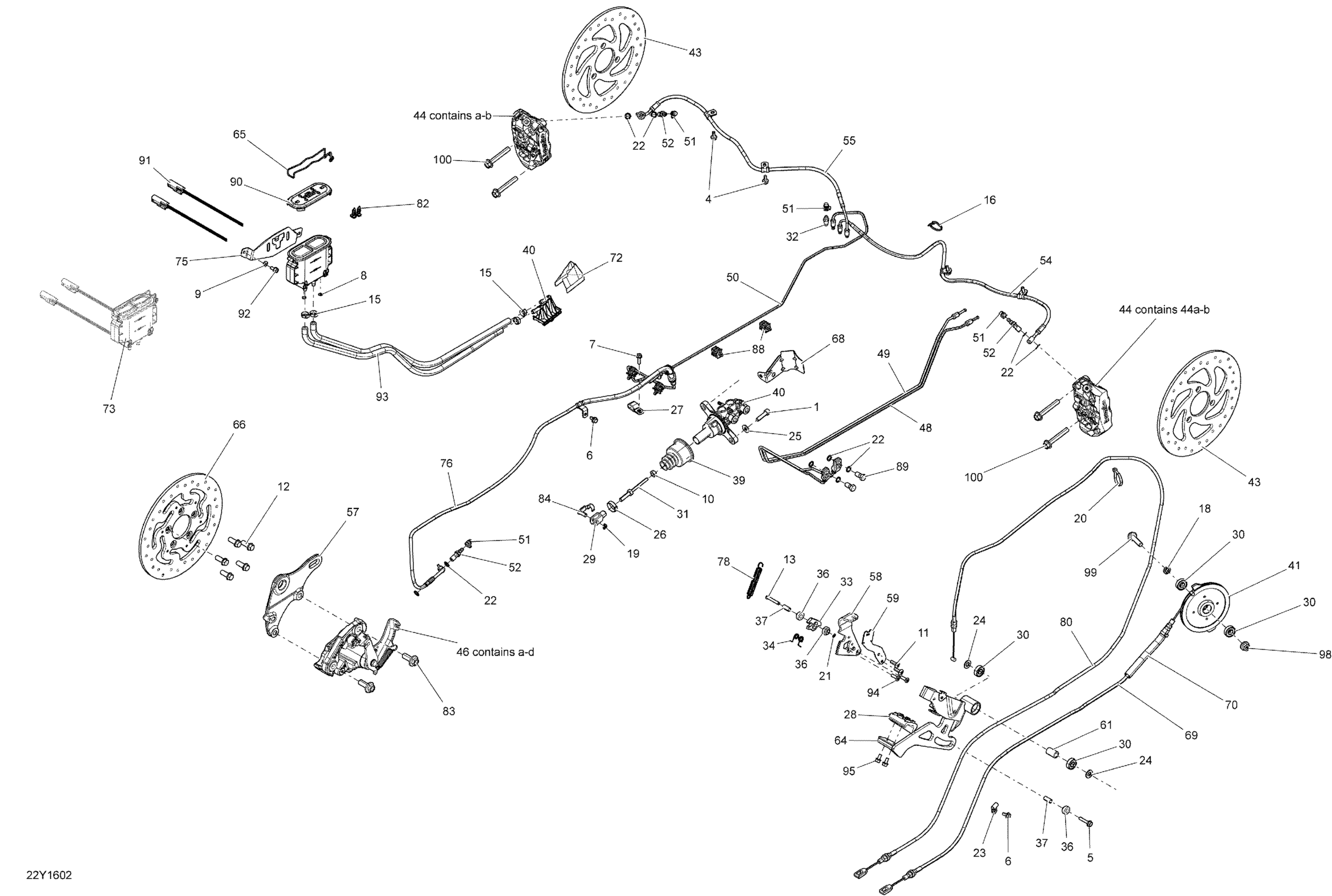

Can-Am RS, 2016 Hydraulic Brake Diagram

#

Description
Price

1

Screw-Socket Cap S.Grip M8 X 30

250001117

$2.00

4

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

5

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

6

Hex. Flange Screw M6 X 20

207662054

$0.83

7

Hexagonal Head Screw

210262050

$1.74

8

Push Nut | Not shown

211100002

$0.83

9

Flat Washer

224061121

$0.44

10

Hex. Nut M8

232081414

$0.60

11

Torx Truss Screw M6 X 20

250000350

$4.39

12

Hex. Flange Screw M10 X 25

250001054

$12.48

13

Pin | Model-RS

293370064

$18.00

15

Crimp Clamp, 15.3-706R

293650047

$2.64

16

Tie Wrap 368 mm

293750008

$0.85

18

Bushing

293900087

$7.60

19

Cotter Pin

371800700

$0.98

20

Tie-Rap 180 mm

414115200

$0.09

21

Circlip | Model-RS

414439000

$4.14

22

Washer

414920600

$1.52

23

Bracket

415052400

$4.12

24

Washer

503183800

$3.20

25

Washer

506151245

$0.91

26

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

27

Open Clamp

515175507

$1.47

28

Rubber Pad

705004933

$21.00

29

Yoke

705600100

Unavailable

30

Bearing

705600458

$7.03

31

Piston Rod

705600468

$23.00

32

Bleeder Screw

705600502

$11.06

33

Key | Model-RS

705600524

$17.00

34

Spring | Model-RS

705600525

$15.00

36

Bushing | Model-RS

705600587

$10.00

37

Bushing | Model-RS

705600588

$15.00

39

Bellow

705600716

$12.00

40

Tandem Cylinder Master

705600722

$370.00

41

Pulley Cable Ass'y | Includes 780 to 780b

705601973

$87.66

43

Front Brake Disk

705601631

$154.00

44

RH Front Caliper | Includes 20 to 20b

705600988

$381.00

44

LH Front Caliper | Includes 10 to 10b

705600987

$381.00

44a

Brake Pad Kit

219800237

$79.00

44b

Spring/Pin/Clip Kit

219800238

$27.00

46

Rear Caliper | Includes 90 to 90d

705600989

$498.00

46a

Brake Pad Kit

219800239

$79.00

46b

Spring/Pin/Clip Kit

219800240

$36.00

46c

Rear Cable Support Kit

219800241

$41.00

46d

Rear Dust Cover

219800242

$33.00

48

Tandem Rigid Tube | Includes 400 to 400a

705601157

$32.00

49

Tandem Rigid Tube | Includes 410 to 410a

705601158

$32.00

50

Rear Brake Rigid Tube

705601159

$32.00

51

Bleeder Bolt Cap

705601190

$4.28

52

Banjo Bolt/ Bleeder

705601201

$17.66

54

RH Front Hose | RT

705601252

$61.00

55

-LH Front Hose

705601471

$61.00

57

Rear Caliper Support

705601262

$56.00

58

PEDAL PLATE - Call your local BRP dealership | Model-RS

705601269

Unavailable

59

SWITCH PLATE - Call your local BRP dealership | Model-RS

705601270

Unavailable

61

Bushing

705600541

$15.00

64

Parking Pedal | Model-RS

705601289

$105.00

65

Spindle Lock

705601294

$14.37

66

Rear Brake Disk

705601632

$245.00

68

HEAT DEFLECTOR - Call your local BRP dealership

705601333

Unavailable

69

Brake Cable | RS

705601335

$67.00

70

Heat Shield

705601341

$8.00

72

HEAT SHIELD - Call your local BRP dealership | RS

705601368

Unavailable

73

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

$110.74

75

Bracket

705601485

$14.00

76

Brake Line

705601501

$75.00

78

SPRING - Call your local BRP dealership | Model-RS

707000543

Unavailable

80

-Parking Brake Cable | Model-RS

707001802

$71.00

82

Connector Holder

710002033

$3.22

83

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.07

84

Rod Clamp

250400064

$7.00

88

Anchorage Tube

705601987

$5.00

89

Banjo Bolt

507032551

$5.52

90

Diaphragm Cover Ass'y

219800350

$17.66

91

Oil Level Sensor

705601073

$50.74

92

Hex. Flange Screw M6 X 12

210261250

$1.56

93

HOSE 8MM 3000MM LONG - Call your local BRP dealership

219704417

Unavailable

94

TORX SCREW FLAT HEAD T-30 S.GRIP M6X20 - Call your local BRP dealership | Model-RS

250000643

Unavailable

95

Hex. Flange Screw M6 X 12

210261250

$1.56

98

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

99

Hex. Flange Screw M10 X 40 | Includes 783 to 783j

207604054

$7.00

100

Hex Flange Screw M10 X 65

207506556

$7.00

110

Hose 4.32Mm 3000Mm Long

219704415

$44.17
