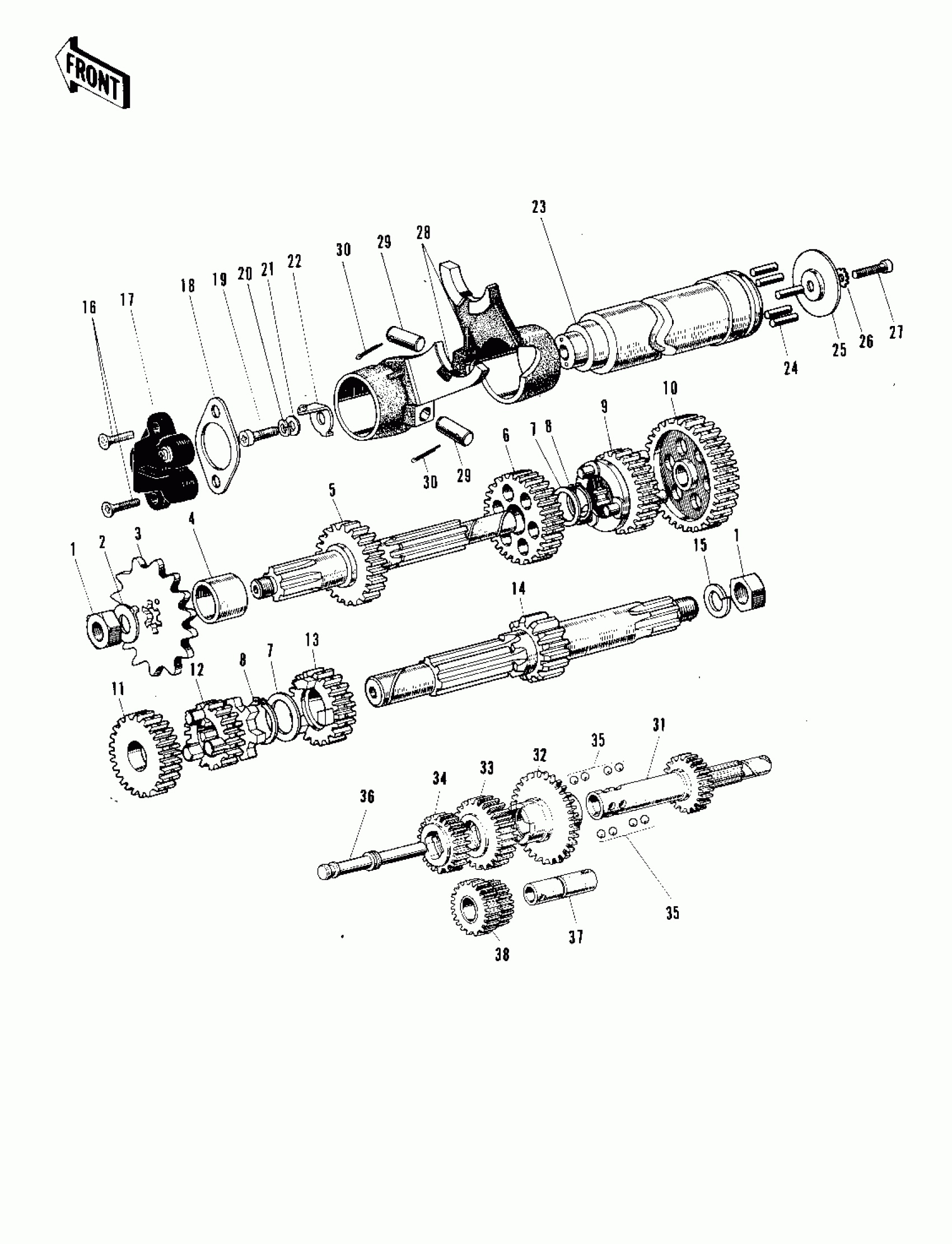

Kawasaki Roadrunner TRANSMISSION/CHANGE DRUM Diagram

#

Description
Price

1

NUT,12MM

92015-006

$5.59

2

WASHER LOCK 12MM

92024-002

$5.23

3

ENG SPROCKET ASSY 15

13249-004

Unavailable

4

COLLAR DISTANCE

92027-019

$6.51

5

SHAFT OUTPUT

13128-008

Unavailable

6

2ND GEAR OUTPUT SHAFT

13131-007

Unavailable

7

WASHER 18MM

92022-036

$0.24

8

CIRCLIP-TYPE-C,17MM

480J1700

$0.65

9

3RD GEAR OUTPUT SHAFT

13133-004

Unavailable

10

LOW GEAR OUTPUT SHAFT

13129-009

Unavailable

11

TOP GEAR DRIVE SHAFT

13136-011

Unavailable

12

2ND GEAR DRIVE SHAFT

13130-006

Unavailable

13

3RD GEAR DRIVE SHAFT

13132-005

Unavailable

14

SHAFT DRIVE

13127-007

Unavailable

15

WASHER-SPRING,12MM

461F1200

$0.96

16

SCREW PAN HEAD 5X16

220B0516

$2.06

16

SCREW PAN HEAD 5X16

220B0516A

$2.06

17

SWITCH,NEUTRAL

13151-1001

$14.51

18

GASKET,NEUTRAL SWITCH

13146-002

$4.35

19

UNAVAILABLE IN PRICE BOOK

92011-003

Unavailable

20

WASHER SPRING 6MM

461F0600

$0.69

21

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

22

ROTOR,TOP & NEUTRAL

21007-1003

$7.62

23

DRUM GEAR CHANGE

13141-021

Unavailable

24

PIN GEAR CHANGE DRUM

92043-004

$3.25

25

PLATE CHANGE DRUM PIN

13142-003

Unavailable

26

WASHER LOCK 6MM

464H0600

Unavailable

27

SCREW PAN HEAD 6X12

220B0612

Unavailable

28

FORK SELECTOR

13140-008

Unavailable

29

PIN SELECT FORK GUIDE

92043-005

Unavailable

30

PIN-COTTER,3.0X20

550D3020

$1.78
