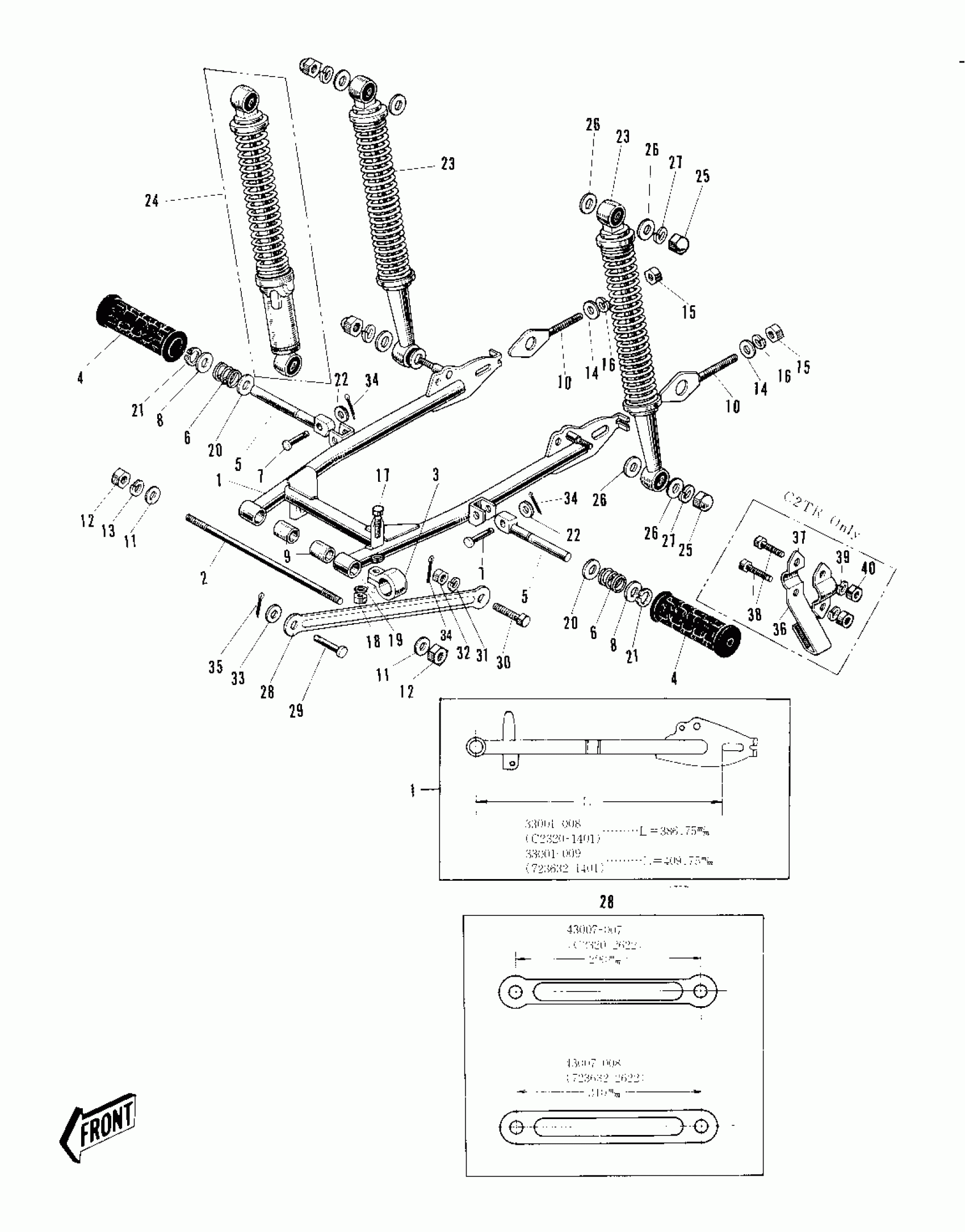

Kawasaki Roadrunner SWING ARM/SHOCK ABSORBERS Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

33001-008

Unavailable

1

ARM SWING

33001-009

$69.19

2

SHAFT SWING ARM PIVOT

33032-008

Unavailable

3

UNAVAILABLE IN PRICE BOOK

33042-008

Unavailable

4

RUBBER REAR FOOTREST

92076-007

Unavailable

5,6,8,

FOOTREST ASSY REAR

34027-004

Unavailable

6

SPRING FOOTREST FOLD

34031-001

$1.32

7

PIN FOOTREST FIT

92043-047

Unavailable

8

WASHER FOLDING PEG

92022-050

$0.36

9

BUSH SWING ARM SHAFT

92092-006

$17.75

10

ADJUSTER CHAIN

33040-008

Unavailable

11

WASHER-PLAIN,10MM

411B1000

Unavailable

12

NUT-HEX-FINE,10MM

314B1000

Unavailable

13

WASHER SPRING 10MM

461F1000

Unavailable

14

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

15

NUT 6MM

311B0600

Unavailable

16

WASHER SPRING 6MM

461F0600

Unavailable

17

SCREW PAN HEAD 5X16

220B0516

$1.45

17

SCREW PAN HEAD 5X16

220B0516A

$1.45

18

NUT-HEX

311B0500

$0.42

18

NUT-HEX

311B0500

$0.42

19

WASHER PLAIN 5MM

410B0500

Unavailable

20

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable

21

CIRCLIP-TYPE-C,14MM

480J1400

$5.00

22

WASHER PLAIN 8MM

410B0800

Unavailable

23

UNAVAILABLE IN PRICE BOOK

45014-018

Unavailable

24

SHOCK ABSBR RR

45014-036

Unavailable

25

NUT SHOCK ABSBR FIT

92020-005

Unavailable

25

NUT,CAP,12MM

92020-014

$9.45

26

WASHER PLAIN 12MM

411B1200

Unavailable

27

WASHER-SPRING,12MM

461F1200

Unavailable

28

TORQUE LINK REAR BRK

43007-007

Unavailable

28

TORQUE LINK REAR BRK

43007-008

$3.75

29

PIN,SPRING,10X12

43009-001

$7.40

30

BOLT,10X32

92003-003

$5.15

31

WASHER SPRING 10MM

461F1000

Unavailable

32

NUT-HEX-FINE,10MM

314B1000

Unavailable

33

WASHER PLAIN 10MM

410B1000

Unavailable

34

PIN-COTTER,2.5X20

550D2520

$1.01

35

PIN COTTER 2.0X15

550D2015

Unavailable
