Description

Price

1 ~ 8

SEAT DUAL

53001-021

Unavailable

2

HINGE

53009-003

Unavailable

3

BOLT-UPSET

112G0614

$1.96

4

WASHER SPRING 6MM

461F0600

$0.69

5

RIVET 6X10

530C0610

$0.60

6

UNAVAILABLE IN PRICE BOOK

53008-001

Unavailable

7

SPRING

53012-001

$1.15

8

DAMPER,DUAL SEAT

92075-023

$4.92

10

PIN

92043-033

$1.61

11

PIN COTTER 2.0X15

550D2015

$1.04

12

BAND

92072-012

$7.34

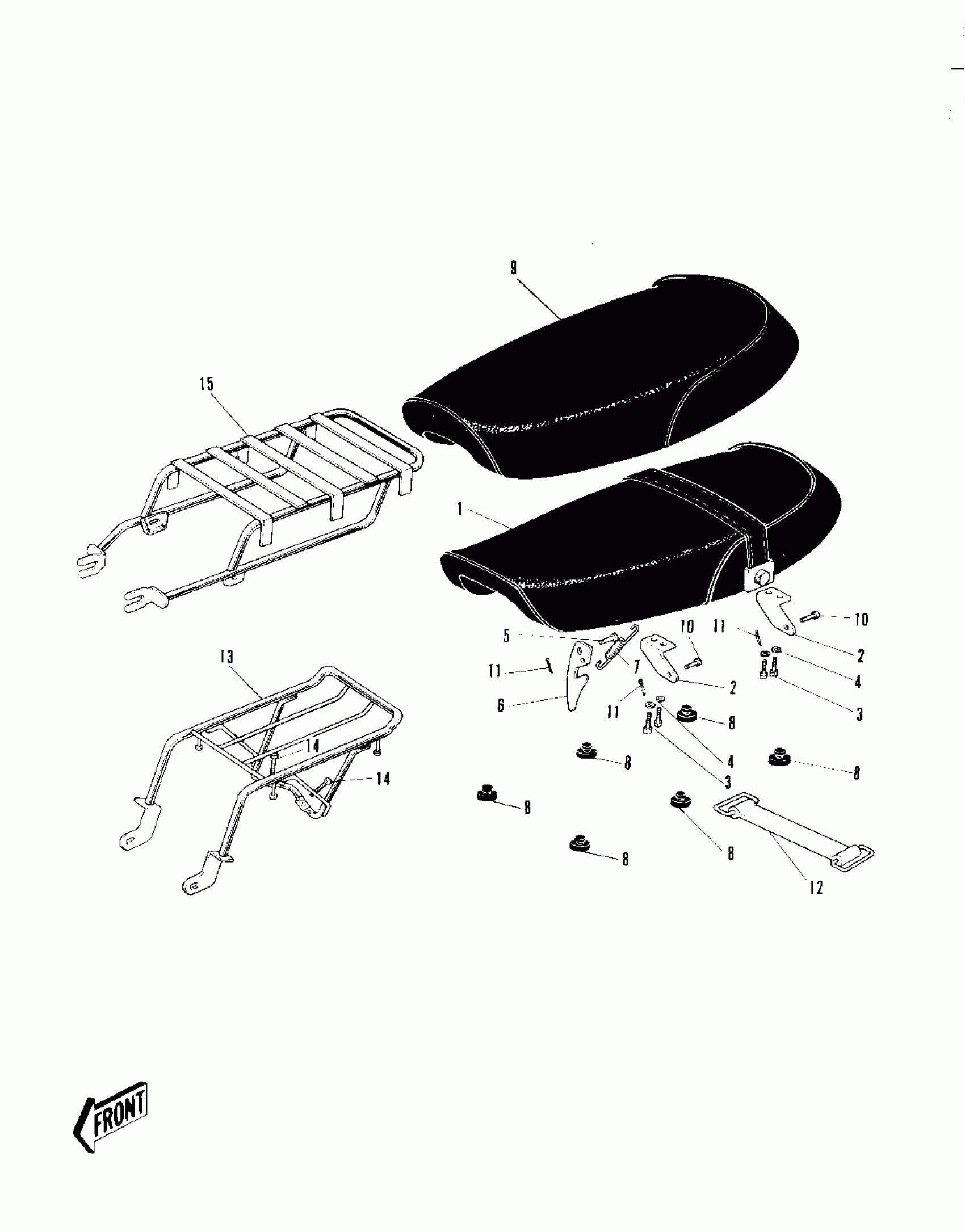

Kawasaki Roadrunner SEAT Diagram

SEAT DUAL

HINGE

BOLT-UPSET

WASHER SPRING 6MM

RIVET 6X10

UNAVAILABLE IN PRICE BOOK

SPRING

DAMPER,DUAL SEAT

PIN

PIN COTTER 2.0X15

BAND
