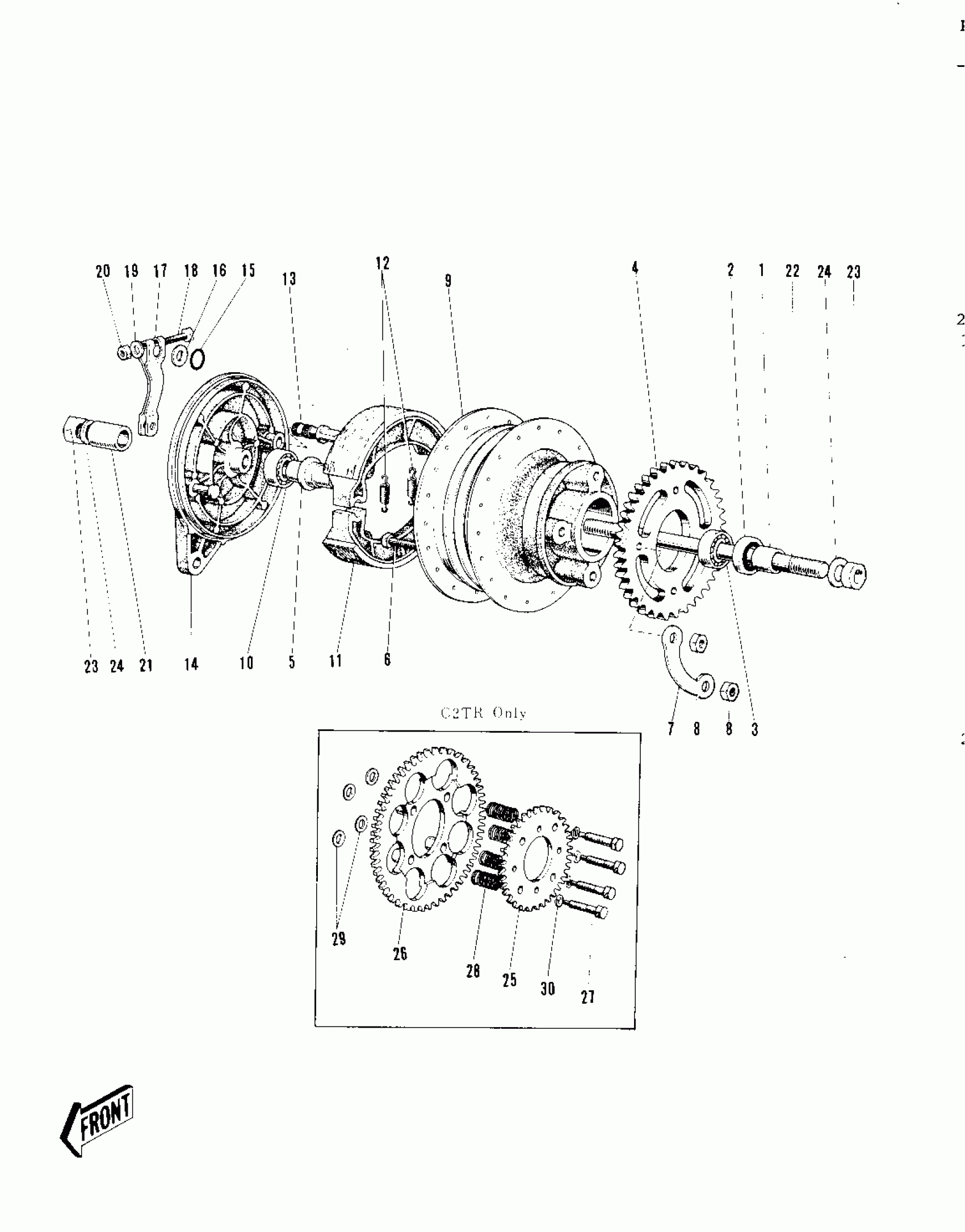

Kawasaki Roadrunner REAR HUB/BRAKE Diagram

#

Description
Price

1

COLLAR REAR HUB L.H

42032-005

Unavailable

2

OIL SEAL RR BRK DRUM

92052-001

Unavailable

3

BEARING BALL #6301

601B6301

Unavailable

4

REAR SPROCKET 34T

42041-019

$93.14

5

SPACER RR HUB BEARING

42010-003

Unavailable

6

BOLT REAR SPROCKET

92001-021

$5.59

7

WASHER RR SPRCKT LOCK

92088-003

$4.60

8

NUT,8MM

311B0800

Unavailable

2,3,5,

DRUM ASSY REAR BRAKE

42005-006

$144.38

11~20

PANEL ASSY-REAR BRAKE

42006-014

$70.19

10

BEARING BALL #6301Z

601B6301Z

Unavailable

11

SHOE-BRAKE

41048-1085

$22.53

12

SPRING,BRAKE SHOE

92081-1766

$8.03

13

CAM-BRAKE

41050-018

$21.27

15

RING-O,BRAKE CAM

92055-004

$4.80

16

WASHER BRAKE CAM SHT

41052-001

Unavailable

17

LEVER,FRONT BRAKE CAM

41053-002

Unavailable

18

BOLT-UPSET

112G0630

Unavailable

19

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

20

NUT 6MM

311B0600

Unavailable

21

COLLAR,12.2X22X28.5

42032-006

Unavailable

22

AXLE REAR

42031-009

Unavailable

22

AXLE REAR

42031-019

$9.68

23

NUT,12MM

314G1200A

Unavailable

23

NUT-HEX-FINE

314B1200

Unavailable

24

WASHER-PLAIN-SMALL,12MM

410B1200

Unavailable
