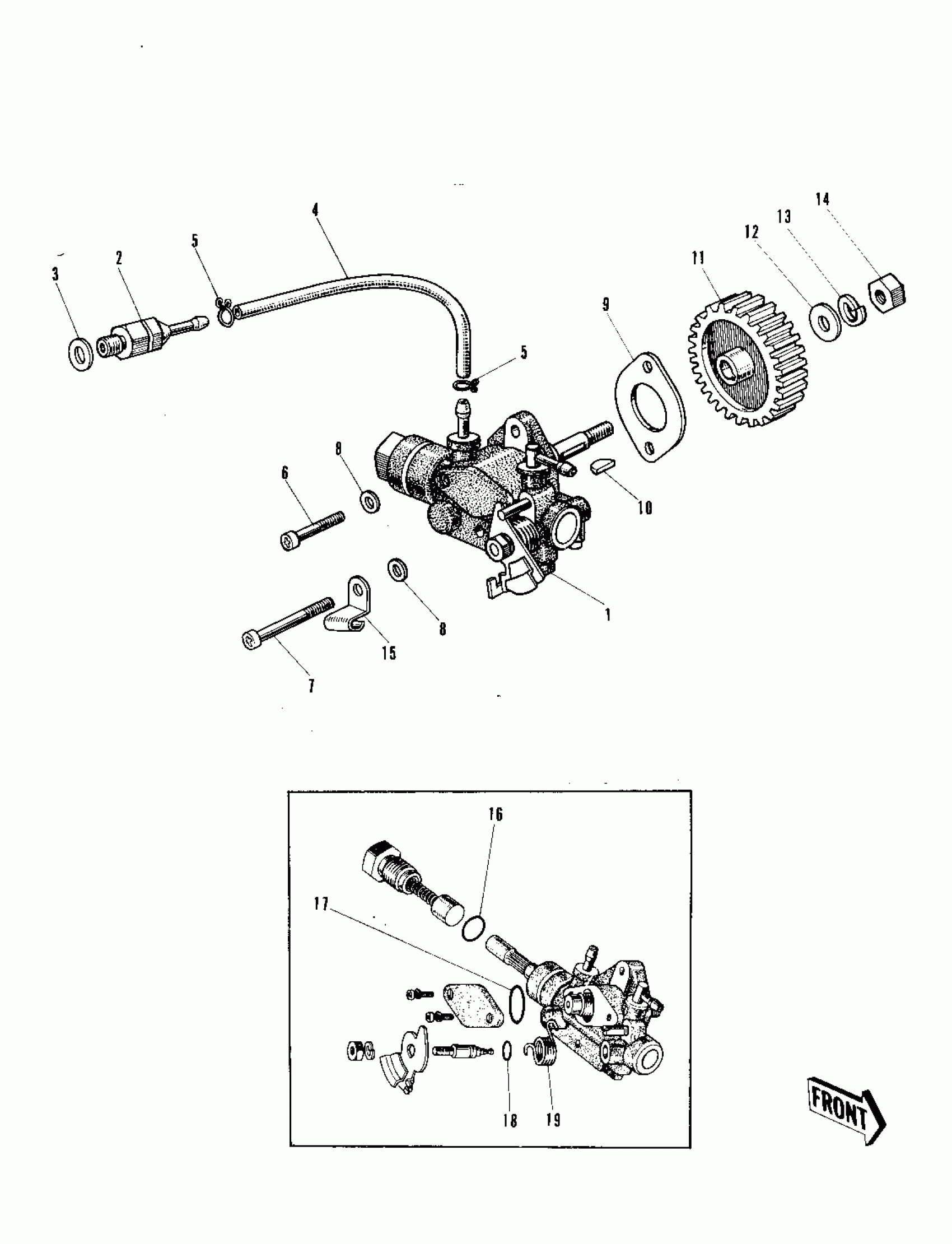

Kawasaki Roadrunner OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

16082-005

Unavailable

2

CHECK VALVE

16087-001

Unavailable

3

GASKET 8MM

751P0800

$1.96

4

PIPE OIL

16129-002

Unavailable

5

CLAMP OIL PUMP

92037-015

Unavailable

6

SCREW-PAN-CROS

220B0514

$4.04

6

SCREW-PAN-CROS

220B0514

$4.04

7

SCREW-PAN-CROS

220B0528

$1.52

7

SCREW-PAN-CROS

220B0528

$1.52

8

WASHER,5.5X10.5X0.8

92022-037

$3.92

9

GASKET,OIL PUMP

11060-1160

$5.17

10

WOODRUFF KEY

510A2500

$7.37

11

GEAR OIL PUMP

16085-001

$7.74

12

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

13

WASHER SPRING 6MM

461F0600

$0.69

14

NUT 6MM

311B0600

$0.93

15

GUIDE OVERFLOW PIPE

16068-001

Unavailable

16

"0" RING,HOUSING

16088-001

Unavailable

17

"0" RING,WORM GEAR

16090-001

Unavailable

18

SEAL-OIL,CAMSHAFT,"X"TYPE

92049-1294

$10.39

19

SPRING OIL PUMP LEVER

16093-003

$2.77
