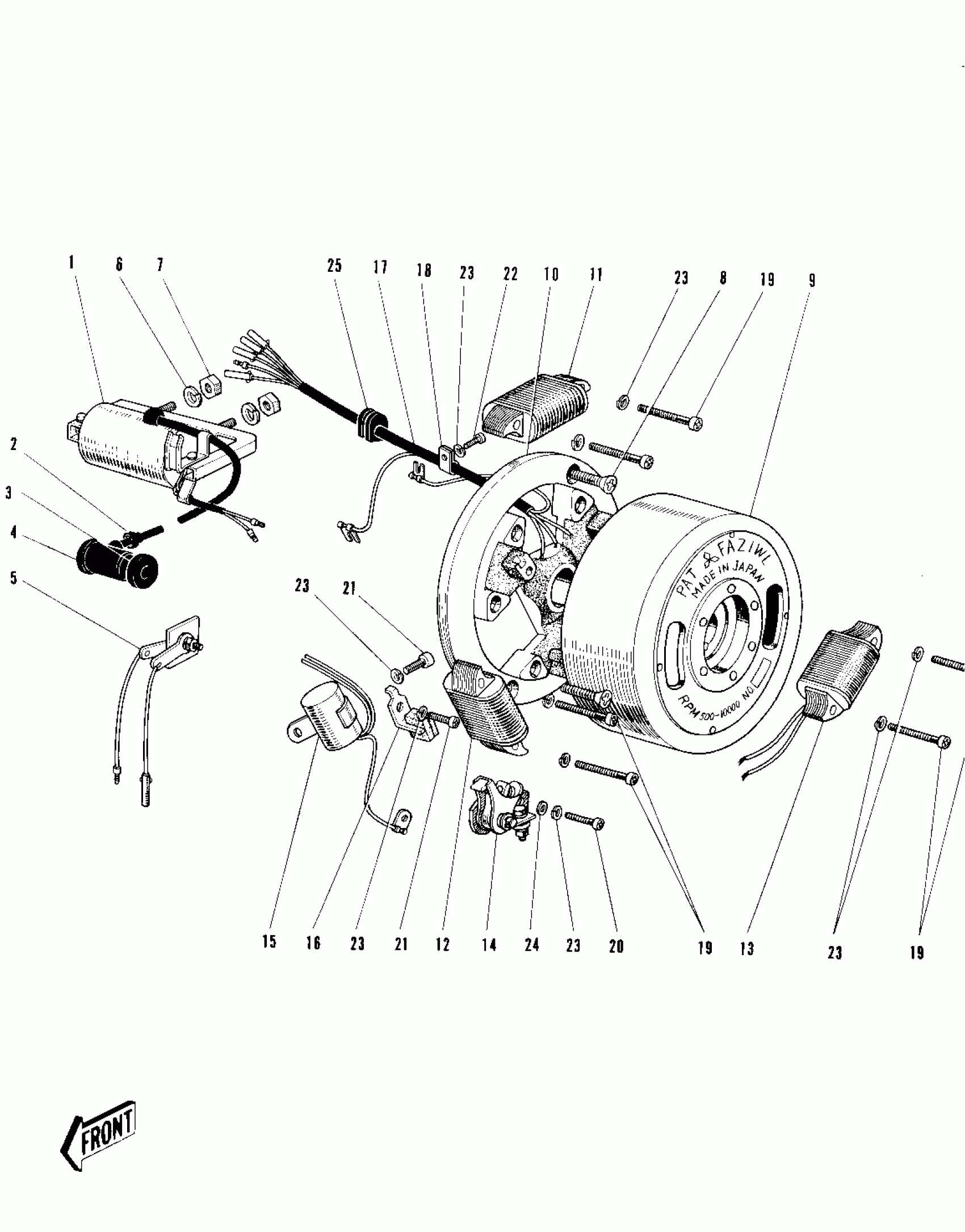

Kawasaki Roadrunner IGNITION/GENERATOR (E/NO. 909150~) Diagram

#

Description
Price

1

COIL IGNITION

21121-029

Unavailable

2

GROMMET

92071-517

$0.69

3

GROMMET PLUG CAP A

21131-002

Unavailable

4

CAP-SPARK PLUG

21130-016

$24.97

5

RECTIFIER

21061-5001

$29.98

6

WASHER SPRING 6MM

461F0600

$0.69

7

NUT 6MM

311B0600

$0.93

8

SCREW-CSK-CROS,6X14

221B0614

$3.46

9~24

MAGNETO ASSY

21002-014

$165.05

9

FLYWHEEL

21050-007

$70.00

10

BASE MAGNETO

21048-008

$22.78

11

COIL PRIMARY

21049-008

$30.42

12

COIL LIGHTING B

21047-009

Unavailable

13

COIL LIGHTING A

21047-008

Unavailable

14

BREAKER ASSY CONTACT

21008-013

$27.61

15

CONDENSER

21013-016

$6.21

16

BRUSH,OIL

21019-005

$5.39

17

WIRING HARNESS MAG

21029-012

Unavailable

18

CLAMP,WIRING HARNESS

21037-002

Unavailable

19

SCREW PAN HEAD 4X25

21022-001

$0.21

20

SCREW-PAN-CRSOSS,4X1

220B0412

$0.21

21

SCREW PAN HEAD 4X8

21085-004

Unavailable

22

SCREW PAN HEAD 4X6

220B0406

$1.67

23

WASHER SPRING 4MM

461F0400

Unavailable

24

WASHER PLAIN 4MM

410B0400

$0.48

25

GROMMET

21017-002

$5.17
