Description

Price

1

CIRCLIP 10MM

92033-002

$4.42

2

LEVER ASSY GEAR CHNG

13161-005

Unavailable

3

SPRING,CHANGE LEVER

92144-1720

$4.74

4

SPRING,TENSION

92081-1129

$9.43

5

BOLT,RETURN SPRING

92001-1401

$4.69

6

NUT 8MM

312B0800

$0.58

7

SHAFT GEAR CHNG PEDAL

13167-004

$10.49

8

WASER 12MM

92022-003

$2.70

9

BOLT-UPSET

112G0625

$3.62

10

CIRCLIP-TYPE-E,10MM

482J0100

$0.73

11

PEDAL GEAR CHANGE

13156-015

Unavailable

12

BOLT,CHANGE DRUM LEVER

92150-1450

$5.35

13

SPRING,NEUTRAL POSITION

92081-051

$5.29

14

LEVER GEAR CHNG DRUM

13168-004

Unavailable

15

SCREW-PAN-CROS,6X14

220B0614

$1.48

16

PLATE CHNG DRUM PSTN

13169-002

Unavailable

17

DAMPER,CHANGE PEDAL

13157-004

Unavailable

18

DUST SHIELD CHNG PEDL

13171-001

Unavailable

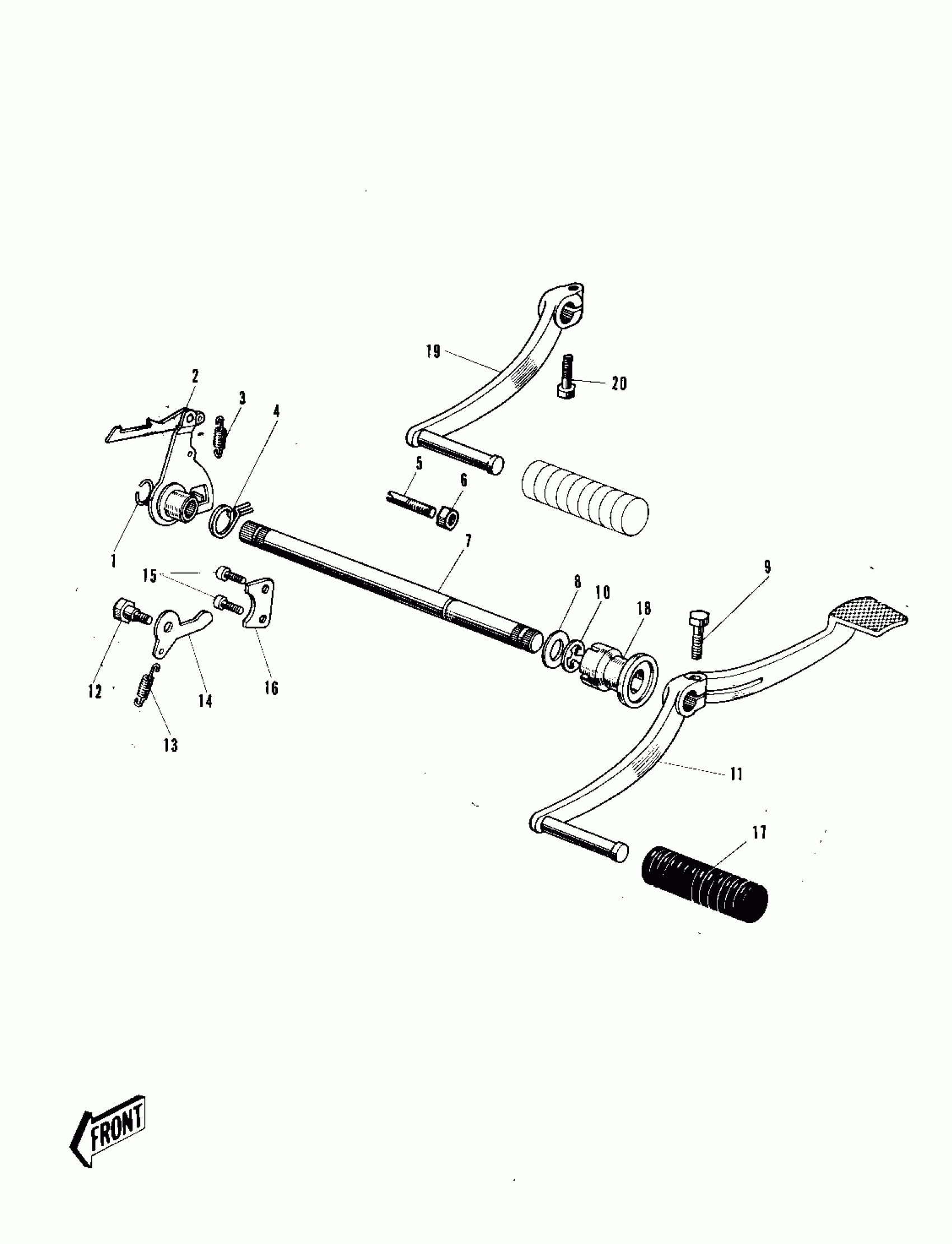

Kawasaki Roadrunner GEAR CHANGE MECHANISM Diagram

CIRCLIP 10MM

LEVER ASSY GEAR CHNG

SPRING,CHANGE LEVER

SPRING,TENSION

BOLT,RETURN SPRING

NUT 8MM

SHAFT GEAR CHNG PEDAL

WASER 12MM

BOLT-UPSET

CIRCLIP-TYPE-E,10MM

PEDAL GEAR CHANGE

BOLT,CHANGE DRUM LEVER

SPRING,NEUTRAL POSITION

LEVER GEAR CHNG DRUM

SCREW-PAN-CROS,6X14

PLATE CHNG DRUM PSTN

DAMPER,CHANGE PEDAL

DUST SHIELD CHNG PEDL
