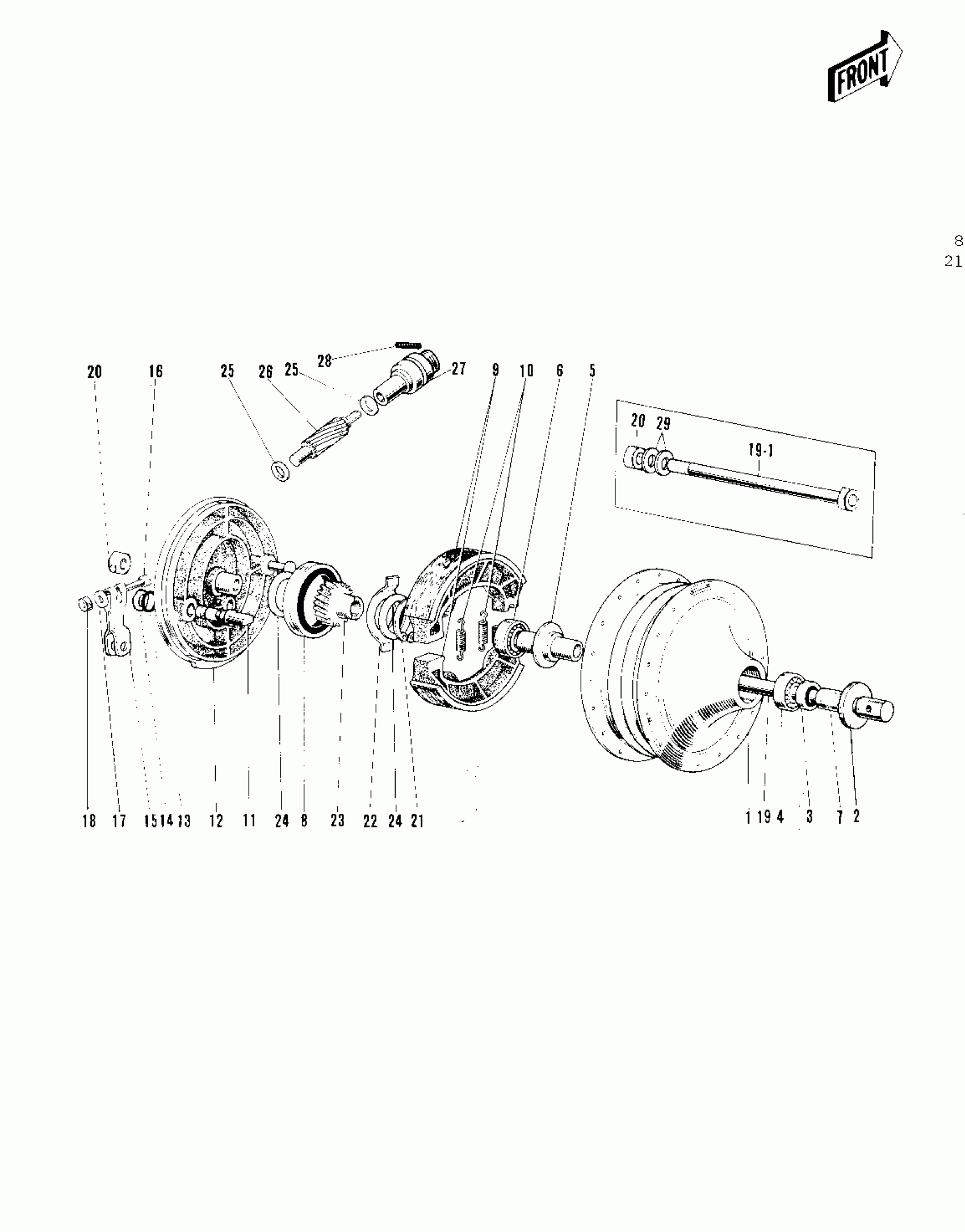

Kawasaki Roadrunner FRONT HUB/BRAKE Diagram

#

Description
Price

1~6

DRUM-ASSY,FR BRK

41034-009

$60.32

2

DUST SHIELD FRNT DRUM

41042-002

Unavailable

3

OIL SEAL FRONT DRUM

92050-003

Unavailable

4

BEARING BALL #6200

601B6200

Unavailable

5

COLLAR,L=51

41039-002

$10.05

6

BEARING BALL #6300Z

601B6300Z

Unavailable

7

COLLAR FRONT HUB R.H

41069-002

Unavailable

8~18

PANEL-ASY,FR BRK

41035-008

$76.47

21~28

PANEL-ASY,FR BRK BUFF

41035-071-80

Unavailable

8

SEAL-OIL,BRAKE PANEL

92050-002

$14.64

9

SHOE-BRAKE

41048-1085

$22.53

10

SPRING,BRAKE SHOE

92081-1766

$8.03

11

CAM-BRAKE

41050-018

$21.27

13

RING-O,BRAKE CAM

92055-004

$4.80

14

WASHER BRAKE CAM SHT

41052-001

Unavailable

15

LEVER-BRAKE CAM

41053-005

$15.47

16

BOLT-UPSET

112G0630

Unavailable

17

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

18

NUT 6MM

311B0600

Unavailable

19

AXLE FRONT

41068-010

Unavailable

19-1

AXLE,FR

41068-039

Unavailable

20

NUT,10MM

42045-005

$7.98

21

CIRCLIP-TYPE-C,15MM

480J1500

$2.31

22

RECIEVER SPEED GEAR

41064-002

Unavailable

23

GEAR SPEEDOMETER

41059-005

$20.69

23

GEAR SPEEDOMETER

41059-006

Unavailable

24

WASHER SPEED GR THRST

41065-002

Unavailable

25

WASHER,5.1X9X0.4

41063-001

$4.69

26

GEAR-METER SCREW,8T

41060-004

$21.74

26

GEAR-METER SCREW,8T

41060-004

$21.74

27

BUSH SPEEDMETER CABLE

41062-001

$9.61

28

SCREW BUSHING SET

41070-001

Unavailable

29

WASHER-PLAIN,10MM

411B1000

Unavailable
