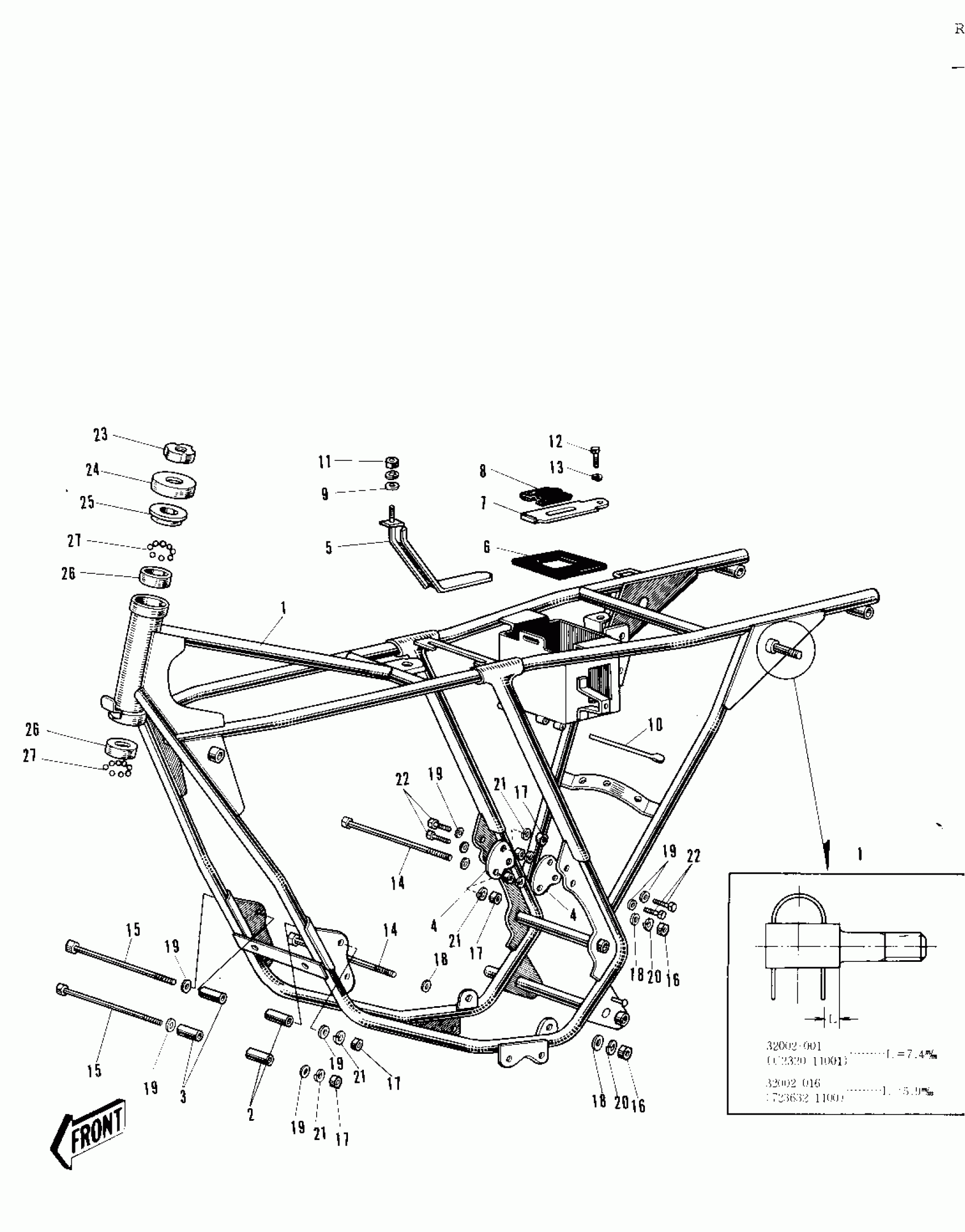

Kawasaki Roadrunner FRAME/FRAME FITTINGS Diagram

#

Description
Price

1

FRAME

32002-001

Unavailable

1

UNAVAILABLE IN PRICE BOOK

32002-016

Unavailable

2

COLLAR ENG MOUNT A

92027-048

$2.16

3

COLLAR ENG MOUNT B

92027-020

$1.84

4

WASHER-LOCK,16MM

92030-001

$0.54

5

BAND OIL TANK

32100-006

$5.75

6

MAT BATTERY

32103-001

Unavailable

7

PLATE BATTERY

32100-001

$3.87

8

PROTECTOR BATTERY

31082-002

Unavailable

9

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

10

PIN

32111-001

$0.54

11

NUT 6MM

311B0600

$0.93

12

SCREW PAN HEAD 6X12

220B0612

Unavailable

13

WASHER SPRING 6MM

461F0600

$0.69

14

BOLT,FLANGED,10X110

92001-1602

$11.07

15

BOLT HEX HEAD 8X100

110B08100

$3.65

16

NUT-HEX-FINE,10MM

314B1000

$0.67

17

NUT,8MM

311B0800

$0.67

18

WASHER PLAIN 10MM

410B1000

$0.58

19

WASHER PLAIN 8MM

410B0800

$0.93

20

WASHER SPRING 10MM

461F1000

$0.67

21

WASHER SPRING 8MM

461F0800

$0.40

22

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

23

NUT STEERING STEM LCK

92090-006

$15.04

24

CAP,STEERING STEM

46098-004

$6.16

25

RACE,UPPER BEARING

92047-005

$12.12

26

RACE,BEARING

92048-004

$11.51

27

BALL-STEEL,3/16

600A0600

$1.07
