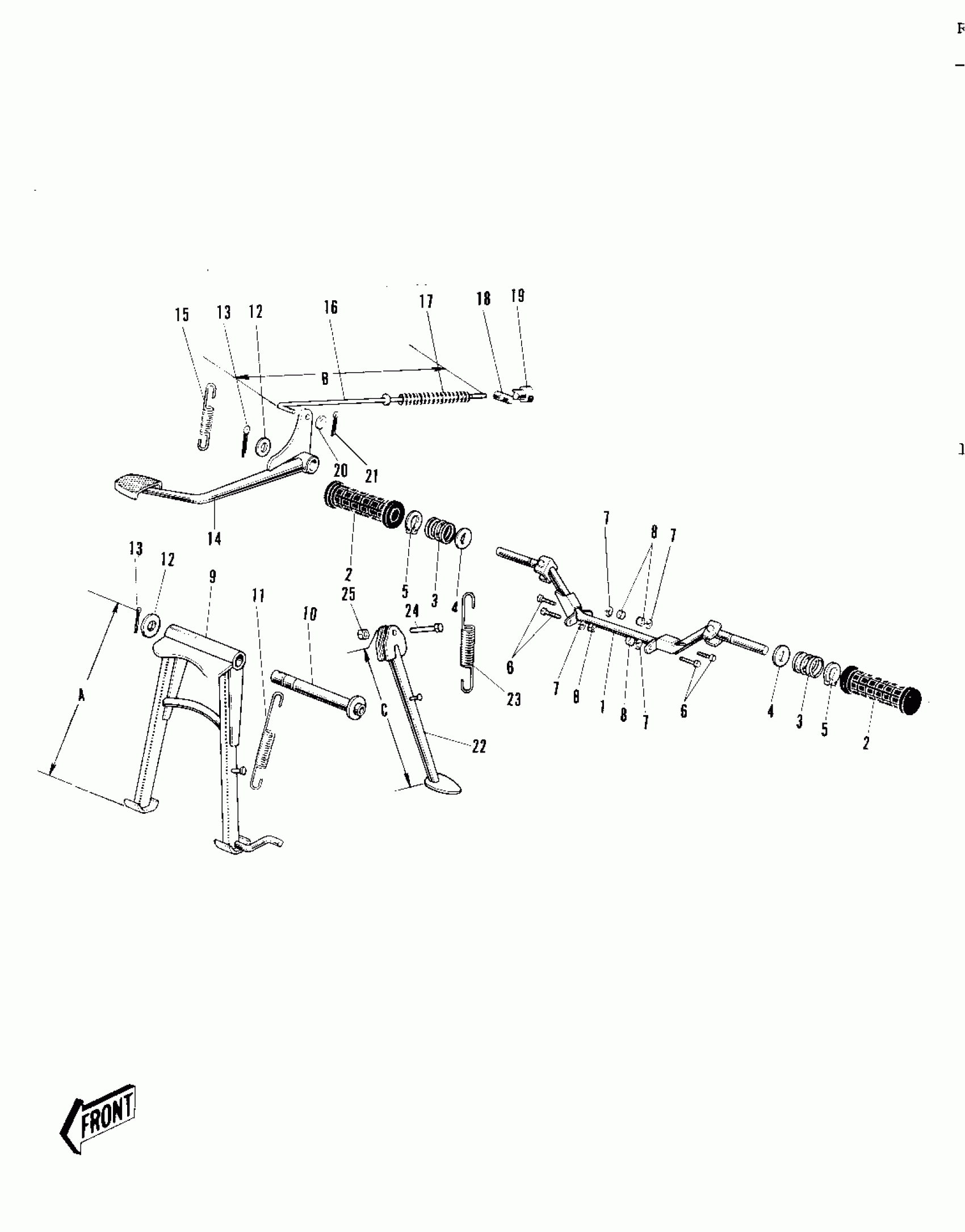

Kawasaki Roadrunner FOOTRESTS/STANDS/BRAKE PEDAL Diagram

#

Description
Price

1

BAR FOOTREST

34002-017

Unavailable

1

BAR FOOTREST

34002-026

$42.24

2

RUBBER FOOTREST

92076-006

$18.94

3

SPRING FOOTREST PEG

34006-002

Unavailable

4

WASHER FOLDING PEG

92022-049

Unavailable

5

CIRCLIP-TYPE-C,16MM

480J1600

$4.31

6

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

7

WASHER SPRING 8MM

461F0800

$0.40

8

NUT,8MM

311B0800

$0.67

9

STAND-MAIN

34011-009

$27.52

9

STAND-MAIN

34011-010

$30.54

10

SHAFT MAIN STAND

34019-005

$4.50

11

SPRING MAIN STAND

34023-005

$10.92

12

WASHER BRAKE PEDAL

92022-085

$3.92

13

PIN-COTTER,3.0X30

550D3030

$2.51

14

PEDAL BRAKE

43001-013

Unavailable

15

SPRING BRAKE PEDAL

43005-005

Unavailable

16~20

BRAKE ROD ASSY

43010-5003

Unavailable

16~20

ROD ASSY BRAKE

43010-007

$7.37

17

SPRING,BRAKE ROD

43012-001

$4.65

18

PIN,BRAKE ROD

92043-039

$6.38

19

NUT BRAKE ROD ADJUST

92015-002

Unavailable

19

NUT,BRAKE ROD

92015-042

$6.22

20

WASHER PLAIN 5MM

410B0500

$0.46

20

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

21

PIN COTTER 2.0X15

550D2015

$1.04

22

STAND SIDE

34024-011

Unavailable

22

STAND SIDE

34024-012

$17.67

23

SPRING,SIDE STAND

34025-001

Unavailable

24

BOLT,HEX HEAD,10X25

113G1025

Unavailable

25

NUT-HEX-FINE,10MM

315B1000

$0.58
