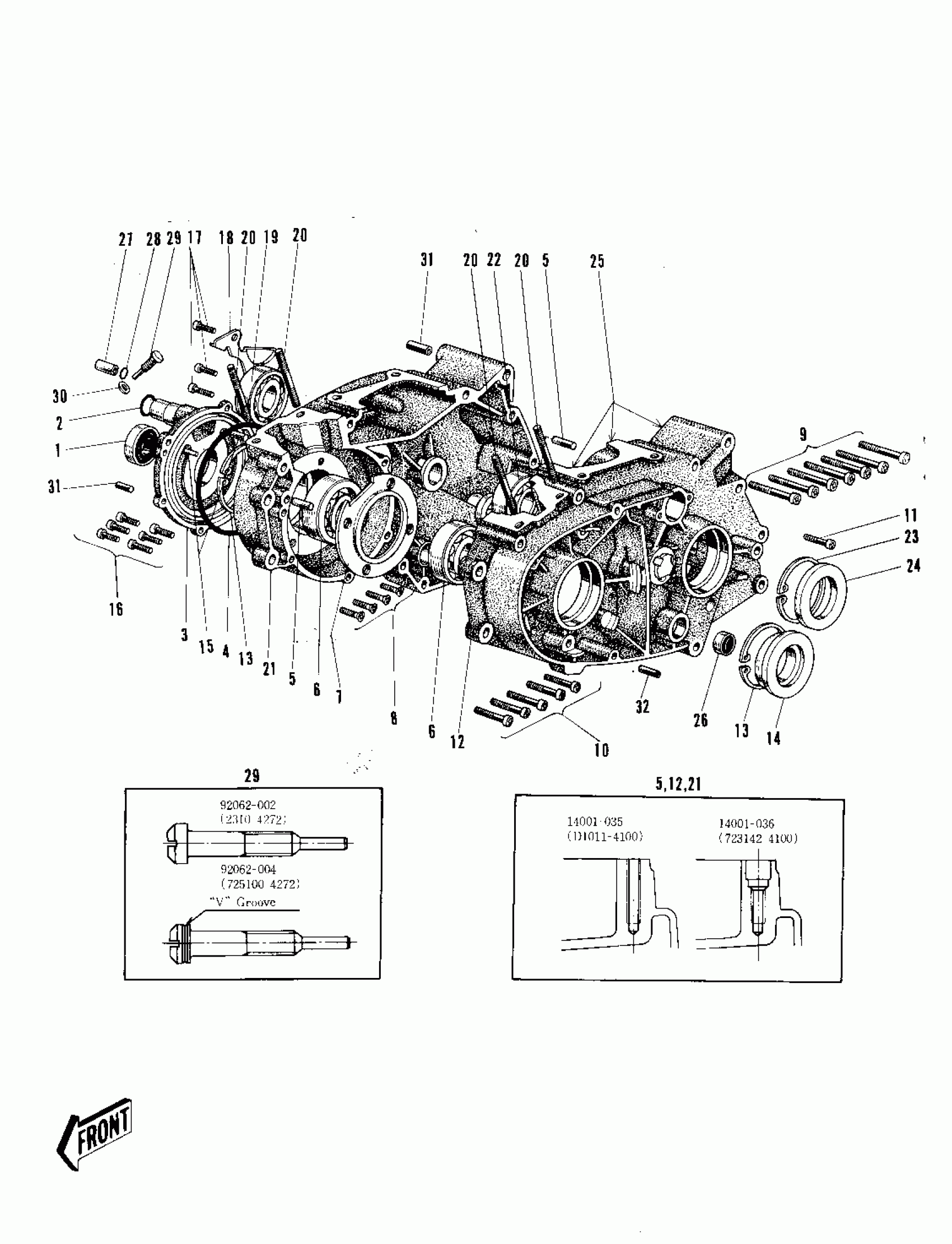

Kawasaki Roadrunner CRANKCASE Diagram

#

Description
Price

1

SEAL-OIL

92049-1250

$18.74

2

O RING,25MM

671B2525

$5.00

3

COVER ROTARY DISC VLV

14019-002

Unavailable

4

RING-O,100MM

92055-010

$9.58

5

PIN DOWEL 8X16

551A0816

$1.25

6

BEARING BALL #6304

601B6304

$36.85

7

HOLDER CRNKSHT BERG

14014-002

Unavailable

8

SCREW-CSK-CROS,6X16

221B0616

$0.59

9

SCREW PAN HEAD 6X55

220B0655

$4.12

10

SCREW PAN HEAD 6X40

220B0640

Unavailable

11

SCREW PAN HEAD 6X25

220B0625

$2.60

5,12,2

CRANKCASE SET

14001-035

Unavailable

13

RING-SNAP,52MM

92033-1043

$8.05

14

OIL SEAL TB20529

92052-002

Unavailable

15

ROLLER,5X12

610A0512

$4.78

16

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

17

SCREW PAN HEAD 6X12

220B0612

Unavailable

18

HOLDER TRNSMSSON BERG

14014-003

Unavailable

19

BEARING-BALL,#6303C3

601B6303

$8.29

20

BOLT-STUD,8X20

172G0820

Unavailable

20

BOLT-STUD,8X22

172G0822

$2.12

22

BEARING-BALL,#6204C3

601B6204

$13.65

23

RING-SNAP,47MM

92033-1042

$4.22

24

OIL SEAL SC25476

92050-006

Unavailable

25

GASKET-LIQUID,TB1105B,SILVER

92104-002

Unavailable

26

SEAL-OIL

92049-1249

$9.89

27

PIN,DOWEL,8X16

92042-017

$6.15

28

RING-O,7.8X3.5

92055-029

$4.39

29

NOZZLE OIL INJECTION

92062-002

$7.37

29

NOZZLE OIL INJECTION

92062-004

Unavailable

30

"0" RING,5MM

92055-011

Unavailable

31

PIN,DOWEL,6.3X8X14

92042-007

$5.70
