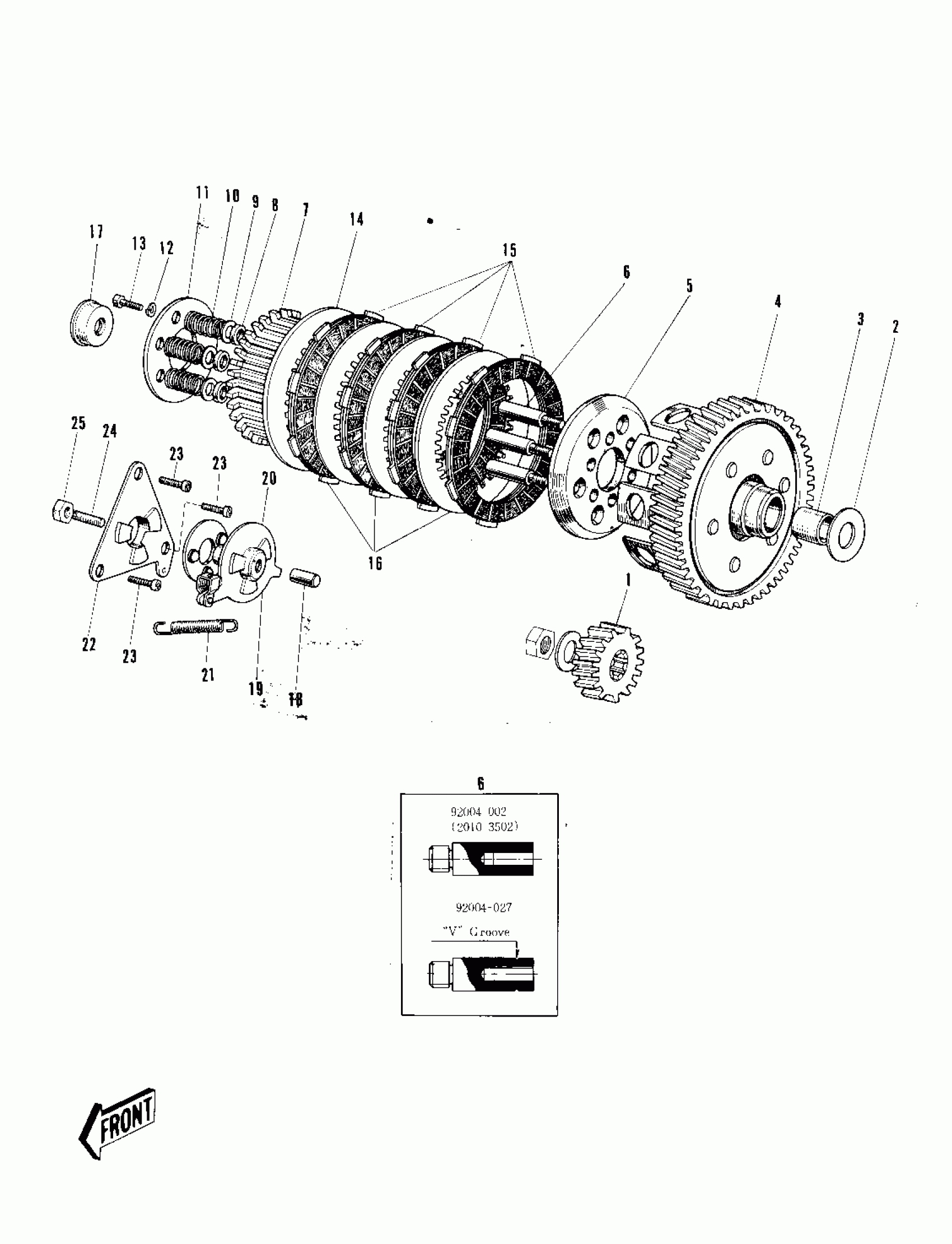

Kawasaki Roadrunner CLUTCH Diagram
#
Description
Price
1
PINION PRIMARY
13121-006
Unavailable
2
WASHER CLUTCH THRUST
92026-057
$2.77
3
BUSH CLUTCH
92028-019
$7.32
4 ~ 16
CLUTCH ASSY
13082-007
Unavailable
4
HOUSING CLUTCH
13095-005
Unavailable
5
BASE CLUTCH
13086-003
Unavailable
6
STUD CLUTCH BASE
92004-002
$2.65
6
STUD CLUTCH BASE
92004-027
$1.47
7
HUB CLUTCH
13087-005
Unavailable
8
SHOCK DAMPER CLT BASE
13094-002
Unavailable
9
WASHER PLAIN 10MM
410B1000
$0.58
10
SPRING,CLUTCH
92081-012
$6.87
11
PLATE CLUTCH SPRING
13091-002
Unavailable
12
WASHER SPRING 5MM
461F0500
$0.69
13
BOLT HEX HEAD 5X12
110B0512
Unavailable
13
BOLT SMALL
114G0812
Unavailable
14
PLATE CLUTCH OUTER
13090-003
Unavailable
15
PLATE CLUTCH FRICTION
13088-005
Unavailable
16
PLATE CLUTCH STEEL
13089-004
Unavailable
17
PUSHER CLUTCH SPRING
13113-001
Unavailable
18
PIN DOWEL 7X10
610A0710
$4.02
19
PLATE ASSY CLTH RELSE
13102-003
Unavailable
20
THRUST BALL ASSY CLTH
13110-003
Unavailable
21
SPRING GEAR CHNG LEV
92083-011
$4.09
22
PLATE CLTH RELESE CAM
13119-003
Unavailable
23
SCREW PAN HEAD 6X12
220B0612
Unavailable
24
SCREW SLOTTED
291Z0620
$6.02
25
NUT 6MM
312B0600
$0.72
