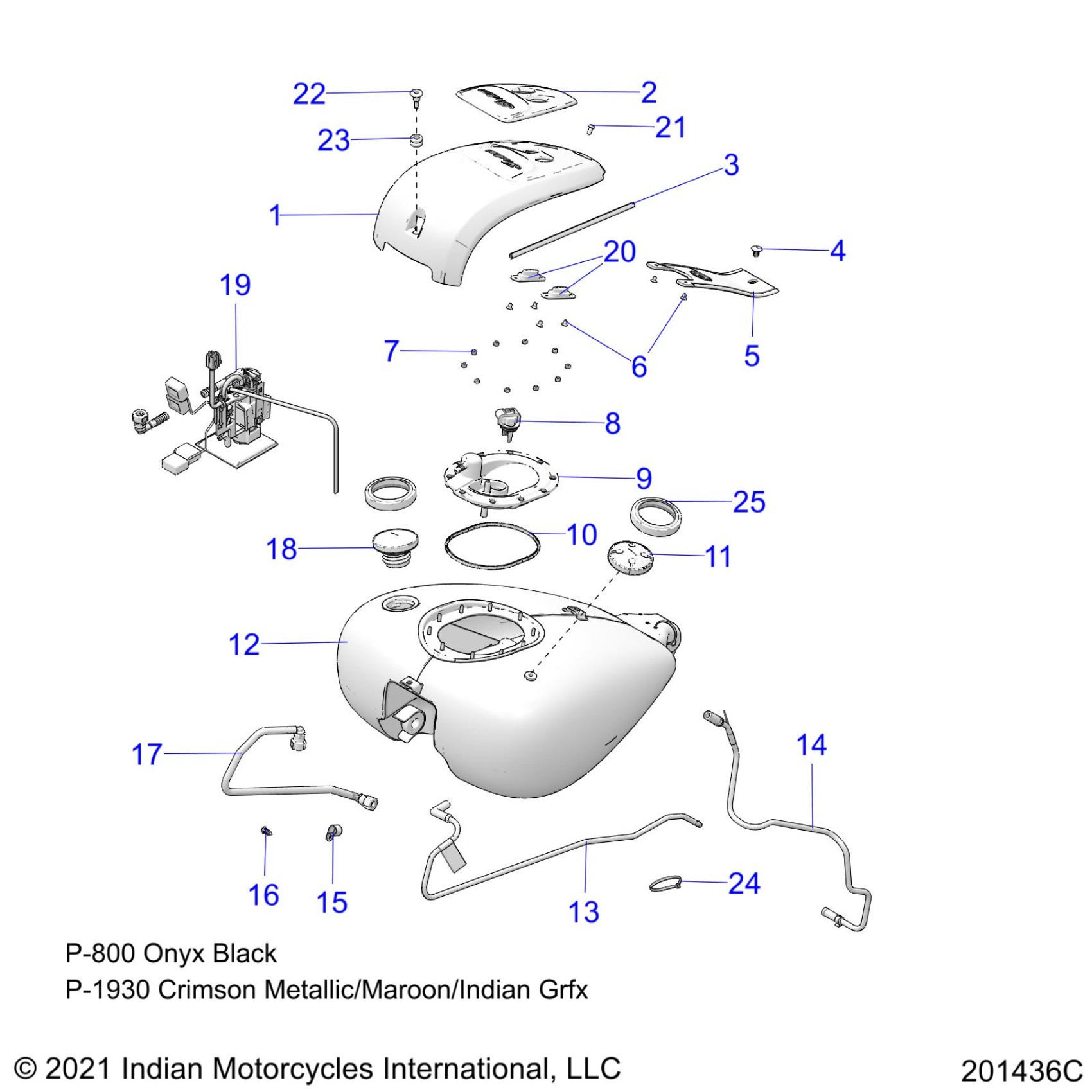

Polaris ROADMASTER (R03) - N22TRABBA0/A/B0/A/C0/A/E0/A FUEL SYSTEM, FUEL TANK ASM. - N22TRABB ALL OPTIONS (201436C) Diagram

CONSOLE-OUTER,NO GAUGE,ZN,CHROME

5633649-156

Unavailable

CONSOLE-INNER,PAT3202M

5262804-01

Unavailable

TRIM-EDGE,CONSOLE,450MM

8360222

Unavailable

CLIP-PLASTIC DART, NYLON

7670088

$1.59

STRAP, FUEL TANK, VINYL, BLACK

2686413

Unavailable

SCREW-FLHD-M5X.8X8.8 ZNC

7519876

Unavailable

NUT-HXFL-M5X0.8 8 ZPC NYL

7547829

$3.19

CONNECTOR, FUEL PUMP

4014261

Unavailable

ASM-FUEL ACCESS,PPA (INCL. 8)

2522275

Unavailable

SEAL-FUEL,MOLDED

5414514

Unavailable

CAP, FUEL, DUMMY, CHROME

2522215-156

Unavailable

ASM-TANK,FUEL,ONYXBLK

1025508-800

Unavailable

ASM-TANK,FUEL,CRMMTMRNMTGFX

1025508-1930

Unavailable

LINE, VENT TO GROUND, UPPER

5439857

Unavailable

LINE-FUEL,VENT TO GROUND,LWR

5456825

Unavailable

CLAMP-CABLE, 9/16 I.D.

7080499

$5.59

CLIP-XMAS TREE,.70X.187 DIA

7661953

$1.49

LINE-FUEL,HWAC,IND

5417881

Unavailable

CAP, FUEL, CHROME

2522214-156

Unavailable

CAP-FUEL,TETHER,CHR (CHINA ONLY)

2522281-156

Unavailable

PUMP-FUEL

2522476

Unavailable

K-SVC, FUEL FILTER

2207067

Unavailable

SWITCH, HEATED GRIPS (SEE "ELECTRICAL, COMPONENTS 1")

-------

Unavailable

SCREW-HXBH-M6X1.0X12 A2

7519000

Unavailable

SCREW-SHLDR-M6X11.75X14

7519350

$13.59

ISOLATOR, RUBBER

5412201

Unavailable

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

BUMPER-CAP,FUEL (CHINA ONLY)

5417339

Unavailable
