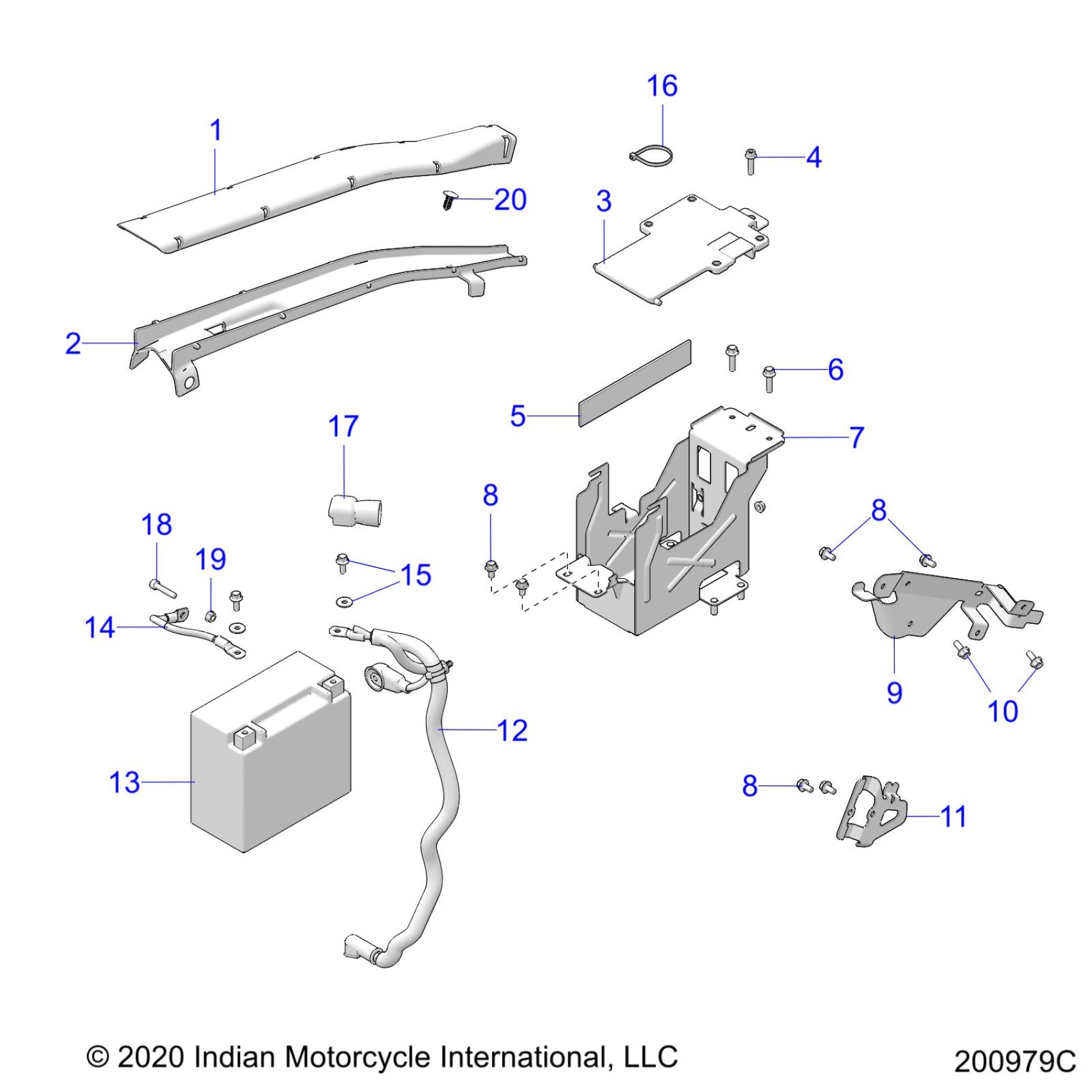

Polaris ROADMASTER (R02) - N21TRABBA1/B/C/D/E/F/B1/B/C/D/E/F/C1/B/C/D/E/F/E1/B/C/D/E/F ELECTRICAL, BATTERY - N21TRABB ALL OPTIONS (200979C) Diagram

COVER, TRAY, CABLE HARNESS

5450249

$36.41

TRAY, CABLE HARNESS

5450193

$48.56

BRACKET, UNDERSEAT, TOP

5439853

$48.40

SCREW-SHFL-M6X1.0X25 12.9 RIE BL

7519953

$7.14

PAD-BATTERY

5810290

$7.27

SCREW-HXFL-M6X1.0X25 8.8 ZPC

7518329

$7.14

WELD-BATTERYBOX,E-COAT

1025002-329

$152.37

SCREW-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.84

SCREW-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.84

SCREW-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.84

BRACKET, MOUNT, FUSE BLOCK

5260042-329

$64.99

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.79

BRACKET, LH FRAME CABLE

5257761

$28.32

CABLE, BATTERY, POSITIVE

4014107

$69.99

BATTERY-YTX20HL,18AH,310CAA,V3

4081841

Unavailable

CABLE, BATTERY, NEGATIVE

4014108

$32.37

K-BATTERY BOLT,14MM (INCL. BOLTS, NUTS, WASHERS) [USED WITH 4081841 BATTERY]

2208719

$6.46

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

BOOT, BATTERY TERMINAL

5415246

$6.46

SCREW-TORX,T-M6X1.0X30 8.8 ZPC

7521112

$3.99

NUT-HXFLGHD, M6, SERRATED

7547270

$3.97

CLIP-FIR TREE,DART,6.35MM

7670090

$1.19
