BODY, FAIRING ASM, WINDSHIELD MOUNT - N20TRABB ALL OPTIONS (200929C)

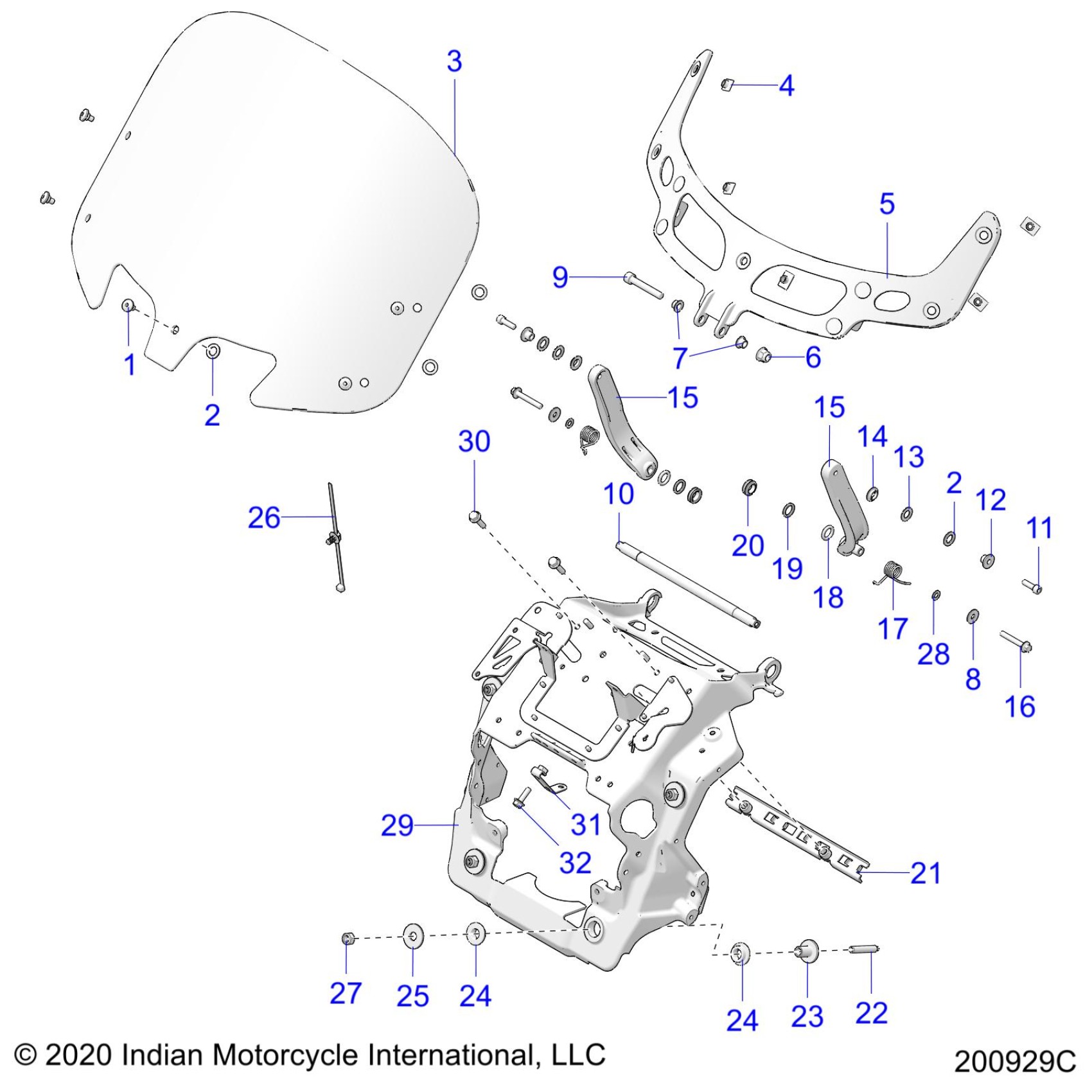

Polaris ROADMASTER PREMIUM ALL OPTIONS (R04) - N20TRABBA1/2/3/5/6/9/A/V/B1/2/3/5/6/9/A/V/C1/2/3/5/6/9/A/V/E1/2/3/5/6/9/A/V BODY, FAIRING ASM, WINDSHIELD MOUNT - N20TRABB ALL OPTIONS (200929C) Diagram
#
Description
Price
1
BOLT-SHD,M6X1.0,7MM,9MM,POL
7521021
Unavailable
2
WSHR-FL,11X18X1.59MM
5813188
$1.19
2
WSHR-FL,11X18X1.59MM
5813188
$1.19
3
KIT, WINDSHIELD, TOURING
2881796
Unavailable
4
T-NUT
7547300
$1.59
5
SUPPORT, WINDSHIELD
5138467-626
Unavailable
6
NUT
7547454
Unavailable
7
BRG-FLANGE,8X10X7MM
3514565
Unavailable
8
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
9
SCREW
7518013
Unavailable
10
ROD,PIVOT, WS
5138358
Unavailable
11
SCREW
7517305
$4.79
12
BUSHING, FLANGE
5140871
Unavailable
13
WASHER, THRUST
7556832
Unavailable
14
FLANGE, BEARING
3514853
Unavailable
15
LINK, WINDSHIELD, JTBLK
5138909-626
Unavailable
15
LINK, WINDSHIELD, JTBLK
5138909-626
Unavailable
16
Screw
7517610
$1.59
17
Spring, Windshield, LH
7043355
Unavailable
17
Spring, Windshield, RH
7043356
Unavailable
18
O-Ring
5411356
$2.39
19
WASHER
7556113
$4.79
20
Bearing, Spherical
3514566
Unavailable
21
BRKT-POWER SUPPLY,ECOAT
1024261-329
Unavailable
22
STUD
5142297
Unavailable
23
BUSHING, FLANGE
5136907
Unavailable
24
ISOLATOR-FAIRING
5416052
Unavailable
24
ISOLATOR-FAIRING
5416052
Unavailable
25
WASHER
7556260
Unavailable
26
CLIP FIR-TREE,DIA6-33MM
7081496
$4.79
27
NUT-NYLOCK M8X1.25-Y
7547144
$3.19
28
WASHER
7556121
$1.49
29
ASM., FAIRING BRKT,HPAUDIO,ECOAT
1025003-329
Unavailable
30
SCREW-HXFL-M6X1.0X25 8.8 RIE
7518576
$3.19
31
BRKT-FAIRING HARNESS,ECOAT
5266316-329
Unavailable
32
SCREW-HXFL-M6X1.0X20 8.8 ZPC
7518141
$4.79
