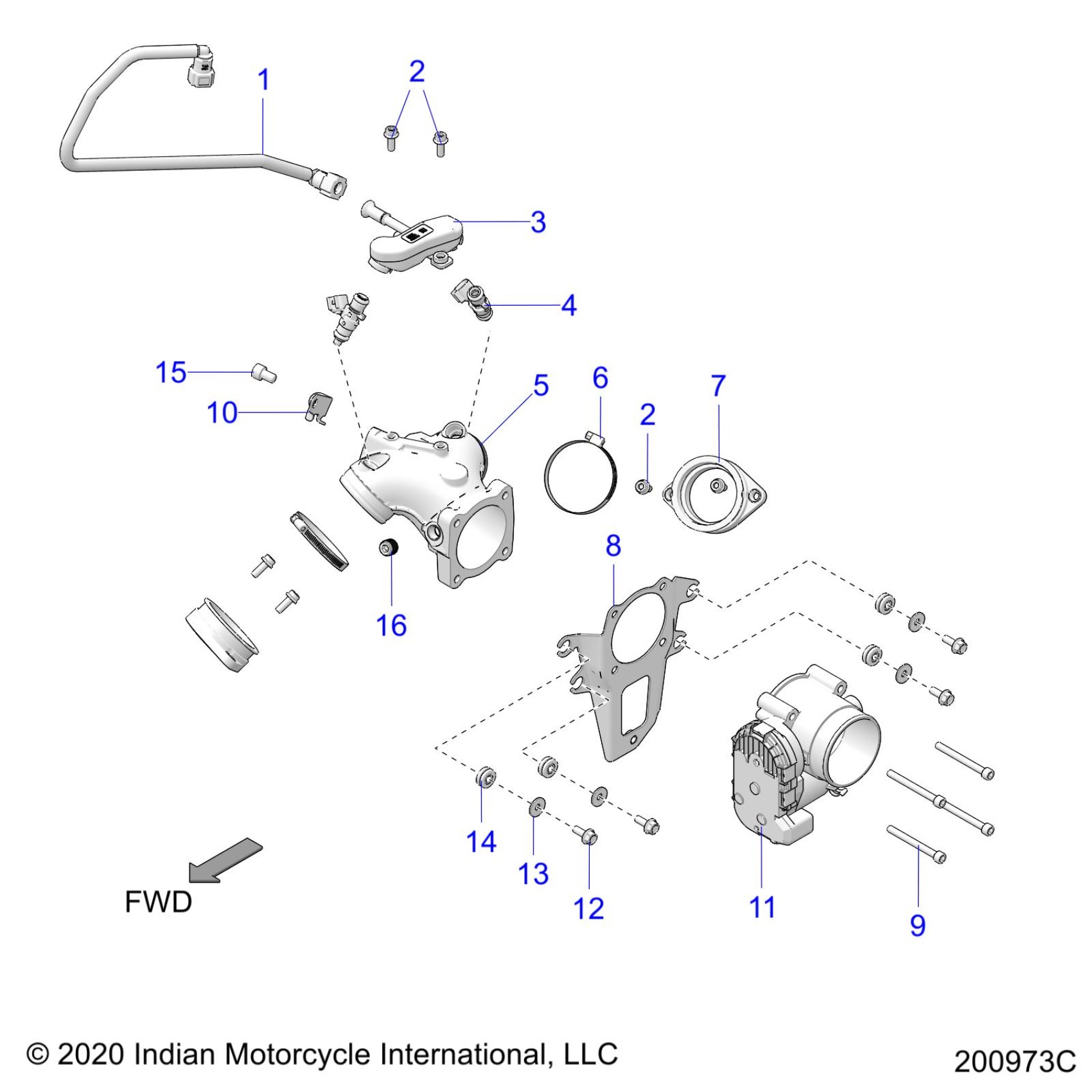

Polaris ROADMASTER LIMITED 116 ALL OPTIONS (R01) - N24TKABBA4/T/B4/T/C4/T/E4/T/J4/T/PBBA4/T/B4/T/C4/T/E4/T/J4/T FUEL SYSTEM, FUEL CLAM SHELL/THROTTLE BODY - N24TKABB/TKPBB ALL OPTIONS (200973C) Diagram

LINE-FUEL,HWAC,IND [SEE FUEL SYSTEM, FUEL TANK ASM.]

----

Unavailable

SCREW-SOCFLGHD,M6X1.0X16

7518803

$3.97

SCREW-SOCFLGHD,M6X1.0X16

7518803

$3.97

ASM., CLAMSHELL, FUEL

2521767

$119.99

INJECTOR, FUEL

2521332

$300.14

O-RING, BOSCH, E10076 (BROWN)(1 PER INJECTOR)

5412891

$1.43

O-RING-BOSCH,EV-14,UPPER, BLUE (BLACK)(1 PER INJECTOR)

1500198

$11.90

MANIFOLD-INTAKE,MACH

5144051

$251.73

CLAMP, NARROW

7082021

$5.56

ADAPTOR, INTAKE MANIFOLD

1204709

Unavailable

BRKT-INTAKE MANIFOLD SUPPORT

5271378

$44.51

SCREW-SH-M6X1.0X60 8.8 ZPC

7517270

$4.35

BRACKET-STAY,ELEC HRNS

5910682

$28.32

ASM., THROTTLE BODY

1204685

$584.99

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.79

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

ISOLATOR

5414603

$5.65

SCREW-SH-M8X1.25X12 8.8 ZPB

7521050

$3.99

PLUG-HEX SOCKET,1/4X18,SEALANT

7518835

$5.65
