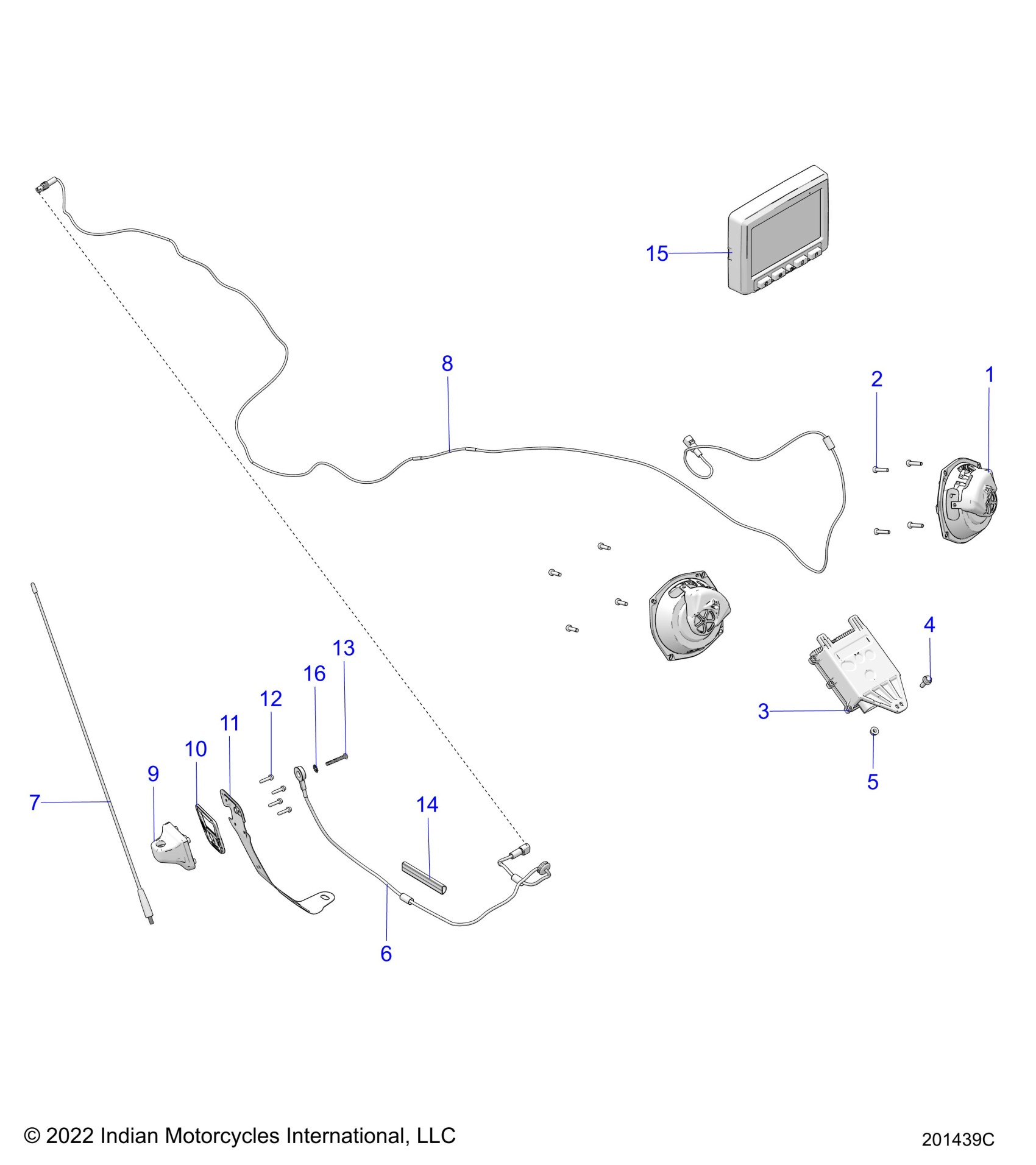

Polaris ROADMASTER LIMITED 116 ALL OPTIONS (R01) - N24TKABBA4/T/B4/T/C4/T/E4/T/J4/T/PBBA4/T/B4/T/C4/T/E4/T/J4/T ELECTRICAL, AUDIO SYSTEM, STANDARD - N24TKABB ALL OPTIONS (201439C) Diagram

SPEAKER-5.25"BASE,AMP (FRONT)

4017739

$159.99

SCREW-HXPH-M5X0.8X22 10.9 ZB

7521196

$3.17

ASM., PWRSPLY,DSP,4CH,4VPP,V2 (CONTACT INDIAN SERVICE REP. FOR REPLACEMENT)

2414625

$349.99

SCREW-HXFL-M6X1.0X20 8.8 ZPC

7518141

$4.76

NUT-HXFLGHD,M6,0600087

7710495

$5.22

HARNESS,AM/FM ANTENNA,TRUNK

2416068

$104.99

ANTENNA-MAST,AM/FM TRUNK [TO 8/1/2025]

4080599

$140.38

ANTENNA-MAST,AM/FM,405MM [FROM 8/1/2025]

4083375

$140.38

HARNESS,AM/FM ANTENNA,CHASSIS

2416112

$124.99

MOUNT-ANTENNA,TRUNK,FIXED

5458427

$84.99

GASKET-TRUNK ANTENNA

5815134

$4.76

BRKT-TRUNK ANTENNA GROUND

5271679

$40.46

SCREW-SWPH-#8X19,MAGNI,BOSSCREW

7520960

$3.97

SCR-HXBH-M5X0.5X35 8.8 ZPB DRI

7527922

$9.52

COVER-WIRE,SDLBG,SHORT

5522256

$32.37

ASM., DISPLAY, 7" (SEE "ELECTRICAL, INSTRUMENT CLUSTER")

----

Unavailable

WASHER-.197X.50 INT/EXT LK-Y

7571602

$4.76
