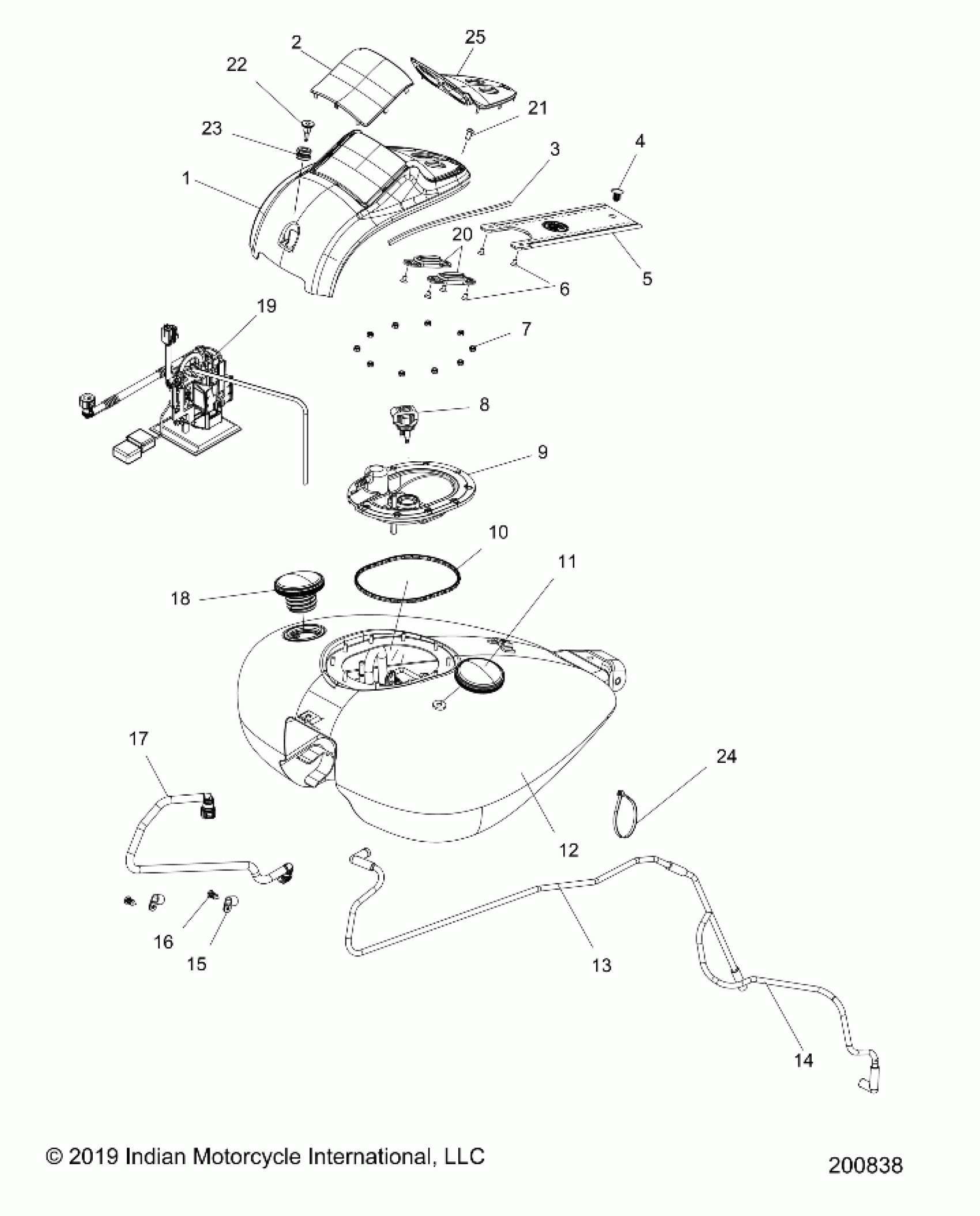

Polaris ROADMASTER ELITE ALL OPTIONS (R04) - N20TREBBAR/BR/CR/ER FUEL SYSTEM, FUEL TANK ASM. - N20TREBB ALL OPTIONS (200838) Diagram

CONSOLE-OUTER,ZN,CHR

5633477-156

Unavailable

CONSOLE-INNER,UPR,AL,RED,BL

5262058-18

Unavailable

TRIM, EDGE, CONSOLE, 450MM

8360133

Unavailable

CLIP-PLASTIC DART, NYLON

7670088

$1.59

STRAP, FUEL TANK, VINYL, BLACK

2686413

Unavailable

SCREW-FLHD-M5X.8X8.8 ZNC

7519876

Unavailable

NUT-M5X.8,HX NYL-Y

7546601

$1.49

CONNECTOR-FUEL PUMP

4014261

Unavailable

ASM., FUEL ACCESS [INCL. 8]

2521374

Unavailable

SEAL, FUEL

5414514

Unavailable

CAP-FUEL,DUMMY,CHR

2522215-156

Unavailable

ASM.,TANK,FUEL,GUNBLK/GX

1021997-1847

Unavailable

LINE, VENT TO GROUND, UPPER

5439857

Unavailable

LINE, VENT TO GROUND, LOWER

5439858

Unavailable

CLAMP, CABLE

7080499

$5.59

CLIP, XMAS TREE

7661953

$1.49

LINE-FUEL,HWI

5416352

Unavailable

CAP-FUEL,CHR

2522214-156

Unavailable

ASM., PUMP,SENDER-FUEL,SVCBLFLTR

2522160

Unavailable

K-SVC FUEL FILTER

2207067

Unavailable

SWITCH, HEATED GRIPS [SEE "ELECTRICAL, COMPONENTS 1"]

-------

Unavailable

SCREW-HXBH-M6X1.0X12 A2

7519000

Unavailable

SCREW-SHLDR-M6X11.75X14

7519350

$13.59

GROMMET

5412201

Unavailable

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CONSOLE-INNER,LWR,AL,RED,BL

5262057-18

Unavailable
