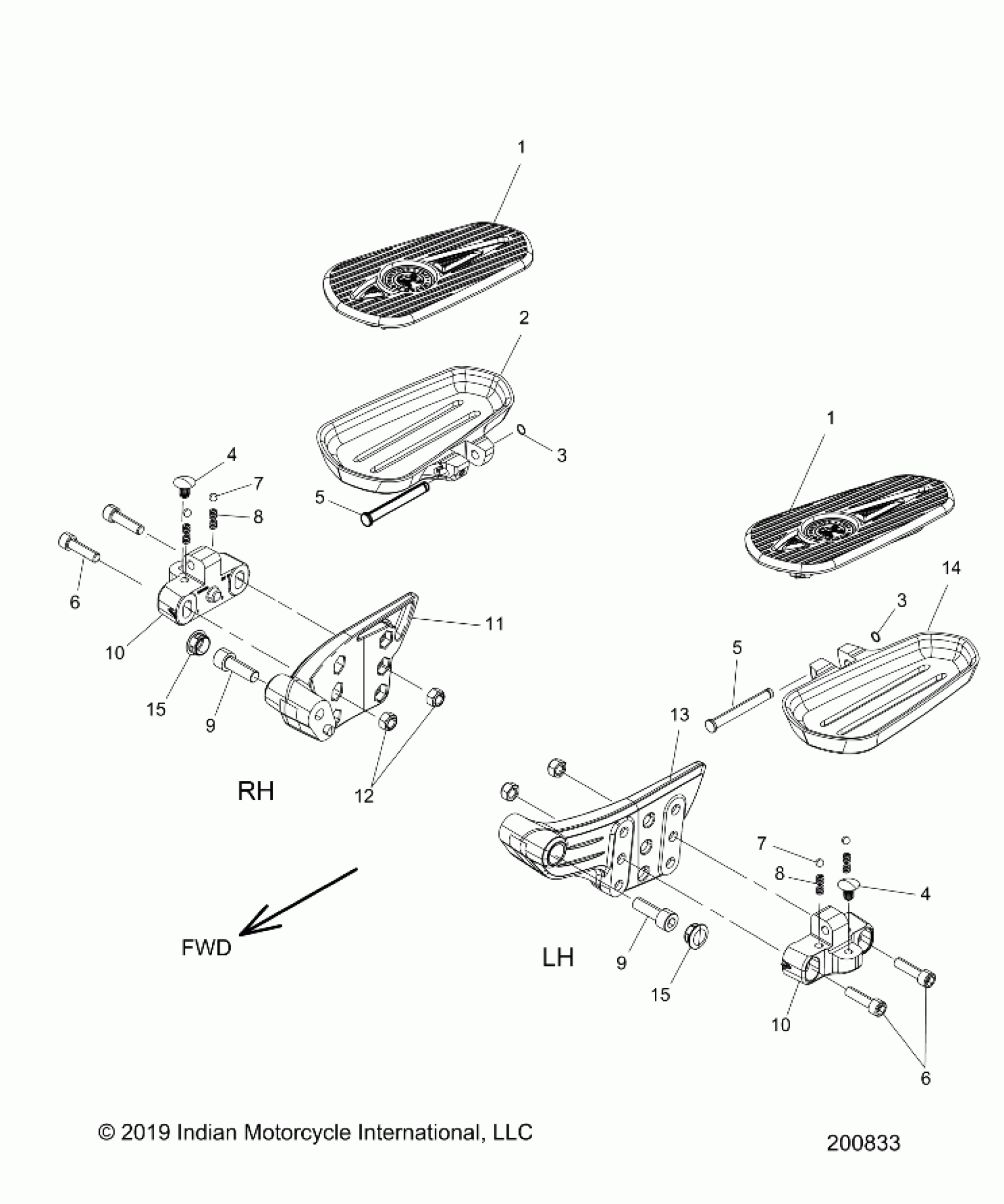

Polaris ROADMASTER ELITE ALL OPTIONS (R04) - N20TREBBAR/BR/CR/ER CHASSIS, FLOORBOARD, PASSENGER - N20TREBB ALL OPTIONS (200833) Diagram

#

Description
Price

1

PAD, FLOORBOARD,PASS,PREMIUM

1024874

$74.99

1

PAD, FLOORBOARD,PASS,PREMIUM

1024874

$74.99

2

FLOORBOARD, PASSENGER, RH, CHROME

5139676-156

$179.11

3

RING-RTNG,SPIRAL,EXT,SS

7710644

$1.98

3

RING-RTNG,SPIRAL,EXT,SS

7710644

$1.98

4

CLIP-PLASTIC DART, NYLON

7670088

$1.59

4

CLIP-PLASTIC DART, NYLON

7670088

$1.59

5

PIN, PIVOT

7661979

$10.32

5

PIN, PIVOT

7661979

$10.32

6

SCREW

7517361

$23.81

6

SCREW

7517361

$23.81

7

BALL, DETENT

5133944

$3.22

7

BALL, DETENT

5133944

$3.22

8

SPRING, COMPRESSION

7042255

$7.27

8

SPRING, COMPRESSION

7042255

$7.27

9

SCREW

7519844

$4.76

9

SCREW

7519844

$4.76

10

MOUNT, FLOORBOARD PIVOT, JT BLACK

5137789-626

$56.65

10

MOUNT, FLOORBOARD PIVOT, JT BLACK

5137789-626

$56.65

11

ASM., MOUNT, FLOORBOARD, PASS, RH, JT BLACK

1020122-626

$91.97

12

NUT-NYLOCK M8X1.25-Y

7547144

$3.17

13

ASM., MOUNT, FLOORBOARD, PASS, LH, JT BLACK

1020121-626

$91.97

14

FLOORBOARD, PASSENGER, LH, CHROME

5139675-156

$179.11

15

PLUG, FLOORBOARD MOUNT

5415328

$3.17

15

PLUG, FLOORBOARD MOUNT

5415328

$3.17
