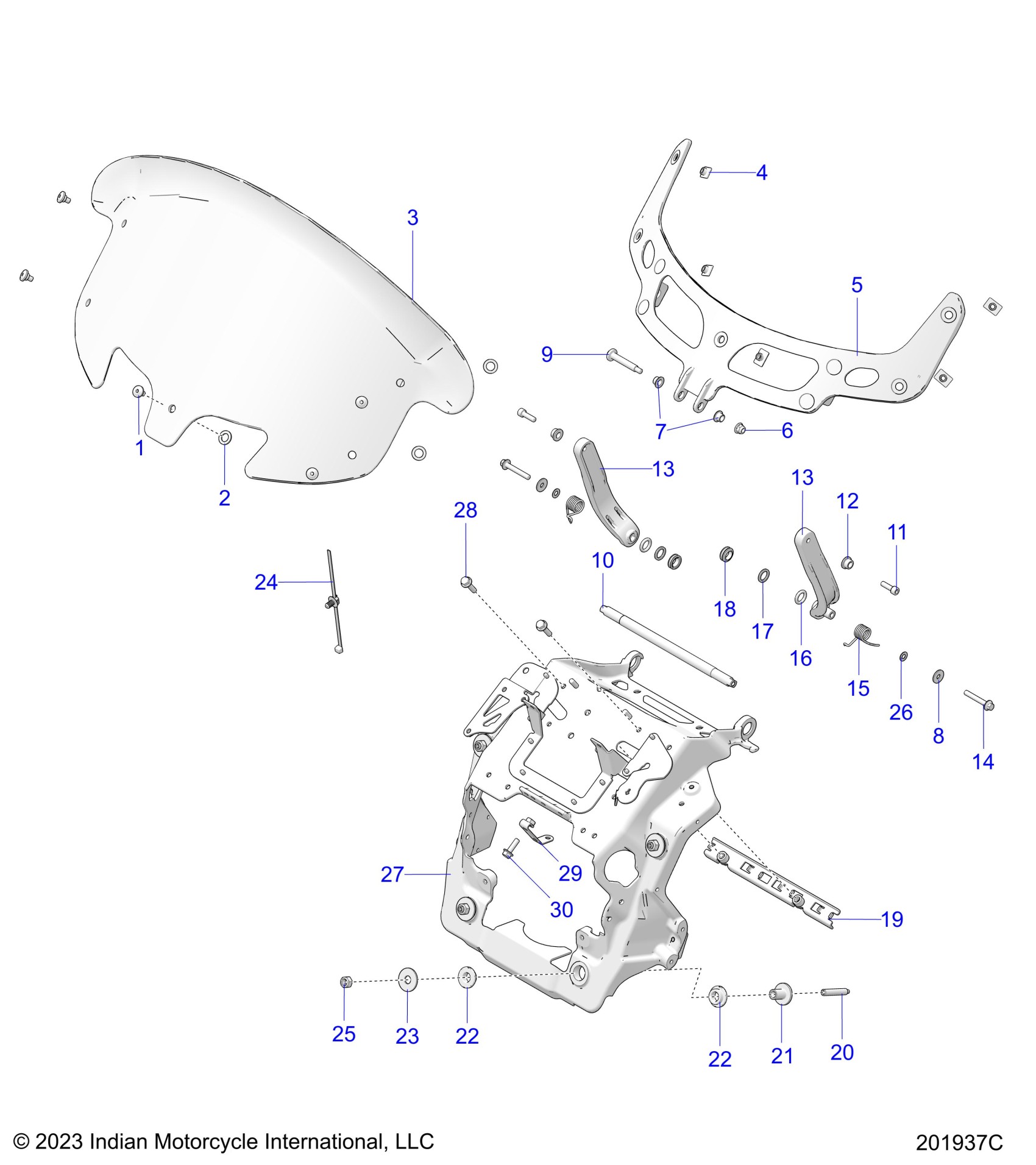

Polaris ROADMASTER ELITE 116 ALL OPTIONS (R01) - N24TKEBBA0/B0/C0/E0/J0/X0 BODY, FAIRING ASM, WINDSHIELD MOUNT - N24TKEBB ALL OPTIONS (201937C) Diagram

#

Description
Price

1

BOLT-SHOULDER,M6X1.0,7MM,9MM,BLACK

7521022

$4.76

2

WSHR-FL,11X18X1.59MM

5813188

Unavailable

3

K-WINDSHIELD, FLARE, TINT

2880222-02

$329.99

4

TNUT-M6

7547300

$1.59

5

SUPPORT, WINDSHIELD

5138467-626

Unavailable

6

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.97

7

BRG-FLANGE,8X10X7MM

3514565

$6.35

8

WASHER-6.4MMX18X1.6,SS

7556094

$4.76

9

SCREW-SHSHDR-M6X1.0X51 SS SPC

7521070

$6.99

10

ROD,PIVOT, WS

5138358

$48.40

11

SCREW-SHSHDR-M6X1.0X20 SS SPC

7521069

$5.99

12

BRG-FLANGE,8X12X8MM

3515150

$3.99

13

LINK-WINDSHIELD,IND,JTBLK

5639267-626

Unavailable

13

LINK-WINDSHIELD,IND,JTBLK

5639267-626

Unavailable

14

SCREW-M6X1.00X40-HX/FL-YD

7517610

$1.59

15

Spring, Windshield, LH

7043355

$5.56

15

Spring, Windshield, RH

7043356

$8.08

16

O-Ring

5411356

$2.41

17

Washer, Flat

7556113

$4.76

18

Bearing, Spherical

3514566

$15.87

19

BRACKET, POWER SUPPLY,ECOAT

1024261-329

$84.99

20

STUD-M8X1.25X45 8.8 ZPC

5142297

$4.76

21

BSHG-FLG,8.5X12.7X18.5

5136907

$9.52

22

ISOLATOR, FAIRING

5416052

$3.97

22

ISOLATOR, FAIRING

5416052

$3.97

23

Washer, Flat

7556260

$10.32

24

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

25

NUT-NYLOCK M8X1.25-Y

7547144

$3.17

26

WASHER-FL,6.0X0.8,0600090(10)

7556121

$1.19

27

ASM., FAIRING BRACKET,HPAUDIO,ECOAT

1025003-329

$279.99

28

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.17

29

BRACKET, FAIRING HARNESS,ECOAT

5266316-329

$44.51

30

SCREW-HXFL-M6X1.0X20 8.8 ZPC

7518141

$4.76
