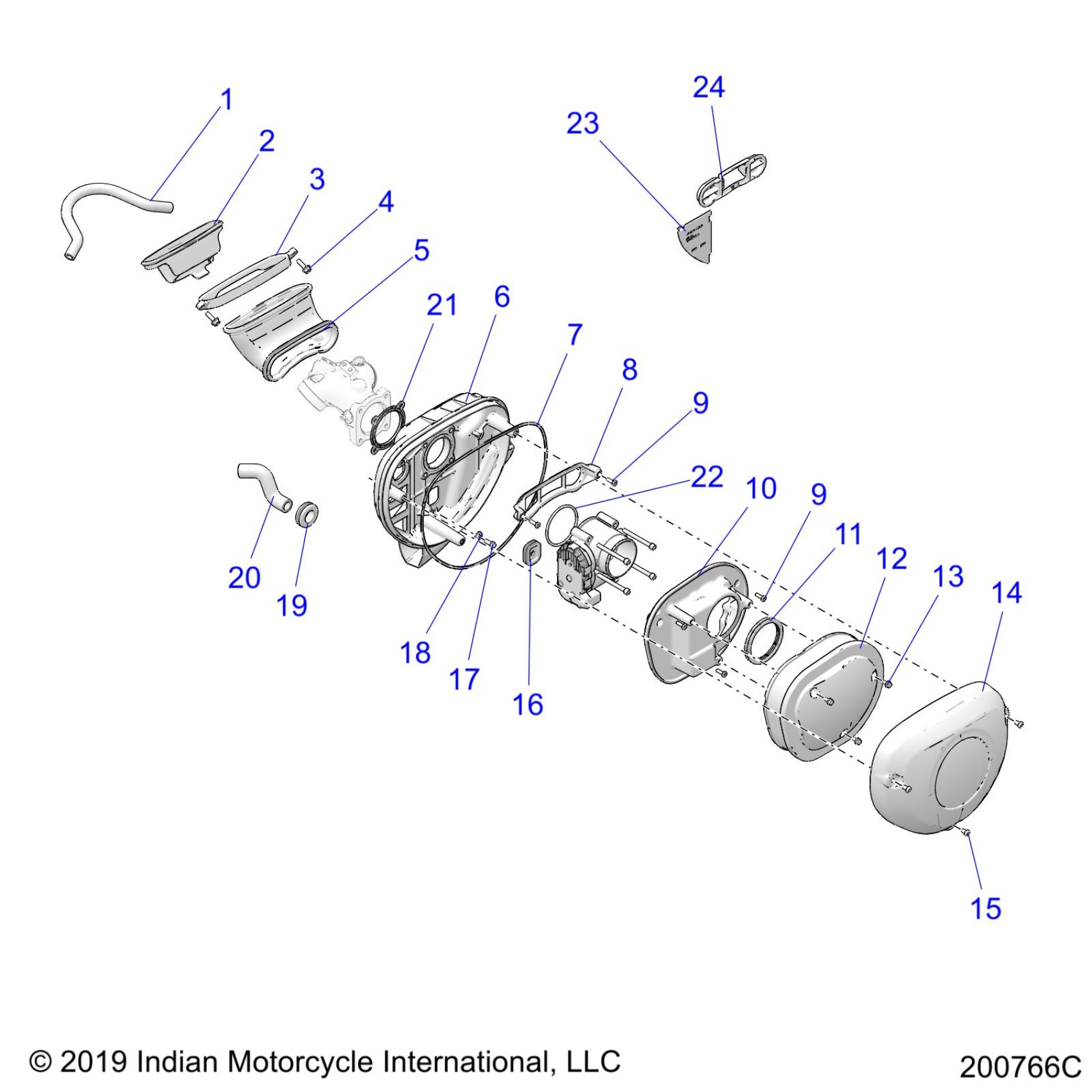

Polaris ROADMASTER DARK HORSE (R02) - N22TDKBBAH/P/R/BH/P/R/CH/P/R/EH/P/R ENGINE, AIR INTAKE SYSTEM - N22TKDBB ALL OPTIONS (200766C) Diagram

#

Description
Price

1

HOSE, BREATHER LINK

5414939

$64.75

2

INSERT, AIRBOX CONNECTOR

5450308

$20.22

3

CONNECTOR, AIR BOX, CAST

5632801

$38.71

4

SCREW-HXFL-M6X1.0X20 8.8 ZPC

7518141

$4.76

5

CONNECTOR, AIR BOX

5414662

$67.76

6

BASE, AIRBOX

5416598

$116.17

7

SEAL, AIR BOX

5414783

$5.56

8

RETAINER, AIR BOX CONNECTOR

1204747

$32.37

9

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.97

9

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.97

10

RETAINER PLATE, AIR FILTER

1204919

$97.13

11

SEAL, FILTER RETAINER PLATE

5414749

$15.87

12

FILTER-AIR

5815068

$30.54

13

SCREW-M5X0.8X10,HX/FL-YD

7517795

$4.76

14

COVER, AIR BOX, BLACK

5257830-521

$124.99

15

SCREW-HXBH-M6X1.0X10 10.9 ZPC

7517406

$4.76

16

GROMMET

5414802

$3.97

17

SCREW-HXFL-M6X1.0X16 8.8 ZY3

7518548

$1.59

18

WASHER-FLAT,M6X15X3

7556485

$4.76

19

GROMMET

5414663

$4.76

20

BREATHER HOSE

5450006

$36.41

21

GASKET,AIRBOX

5634512

$51.59

22

O-RING, 231

5415963

$1.59

23

PLATE, BLOCK OFF, AIRBOX BASE, EU (CHINA ONLY)

5452280

$28.32

24

PLATE, BLOCK OFF, INTAKE, EU (CHINA ONLY)

5452281

$32.37
