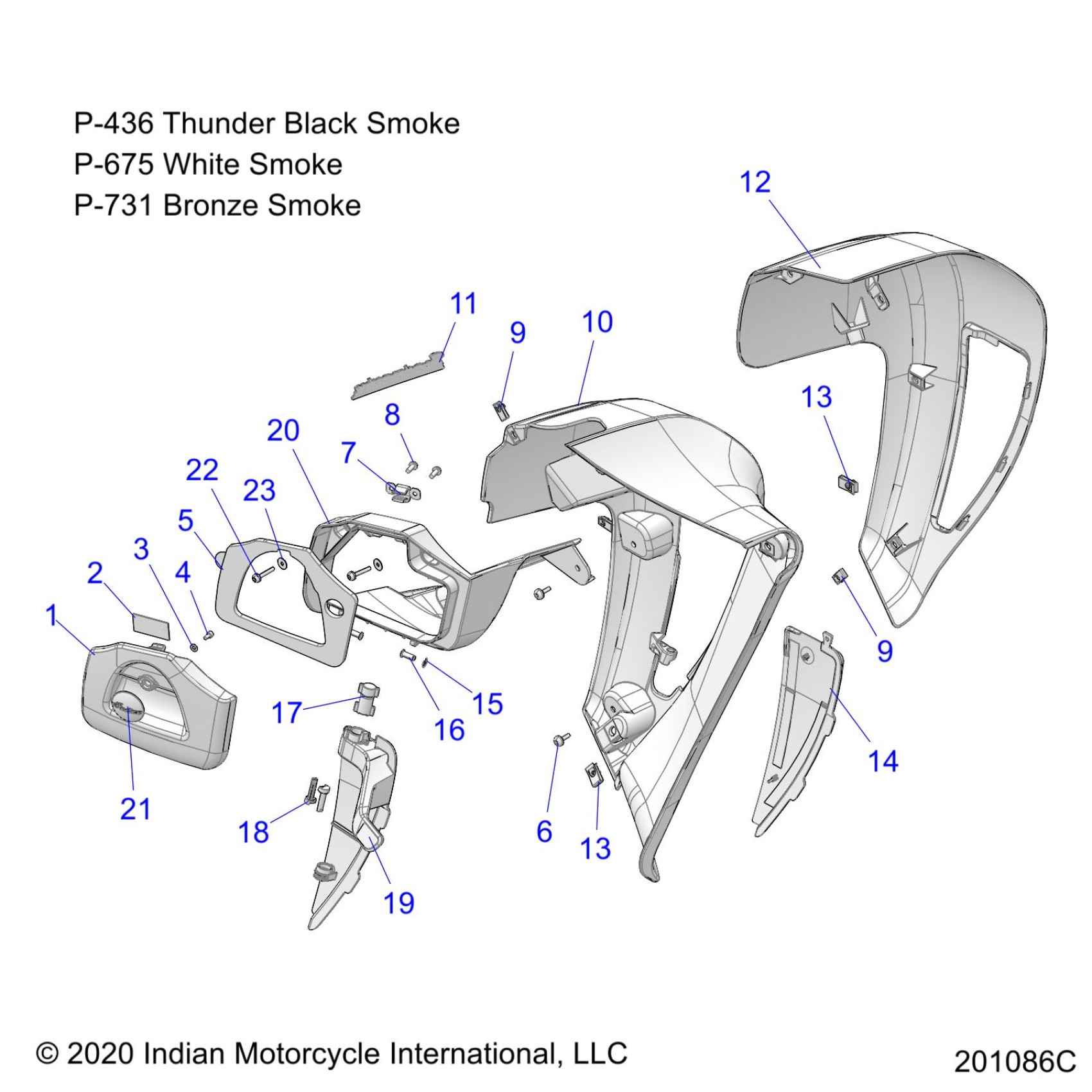

Polaris ROADMASTER DARK HORSE (R01) - N21TKDBBAF/H/W/BF/H/W/CF/H/W/EF/H/W BODY, FAIRING, LOWER - N21TKDBB ALL OPTIONS (201086C) Diagram

#

Description
Price

1

DOOR, LOWER, FAIRING, LH

5454626

$58.08

1

DOOR, LOWER, FAIRING, RH

5454627

$58.08

2

DECAL, CARGO LIMIT, 5 LBS.

7177896

$12.94

3

WASHER

7556027

$4.35

4

SCREW-SOCHD-M4X.7X8 ZB DLOK 202

7520172

$3.97

5

SEAL, DOOR, LH

5416898

$10.32

5

SEAL, DOOR, RH

5416899

$10.32

6

SCREW-M4.2X1.40,12,HEX,BUTT,SHLD

7518518

$1.59

7

LATCH, STORAGE COMPARTMENT

7081715

$27.78

7

PAD-RUBBER 10X40X3

5814812

$1.59

8

SCREW-WSHRPNHD,10-16,HILO

7518641

$3.17

9

NUT-CLIP,U SPEED,M4.2

7547386

$2.38

9

NUT-CLIP,U SPEED,M4.2

7547386

$2.38

10

FAIRING-LOWER, INNER, LH

5454620

$454.99

10

FAIRING-LOWER, INNER, RH

5454621

$394.99

11

EMBLEM (SEE "BODY, EMBLEMS/DECALS")

----

Unavailable

12

FAIRING, LOWER, OUTER, LH

5454622-463

$819.99

12

FAIRING, LOWER, OUTER, LH

5454622-675

$819.99

12

FAIRING-LOWER,OUTER,LH,MNARABZ

5454622-731

$819.99

12

FAIRING, LOWER, OUTER, RH

5454623-463

$819.99

12

FAIRING, LOWER, OUTER, RH

5454623-675

$819.99

12

FAIRING-LOWER,OUTER,RH,MNARABZ

5454623-731

$819.99

13

CLIP-U SPEED NUT

7081305

$1.98

13

CLIP-U SPEED NUT

7081305

$1.98

14

VENT-DOOR,LH,BLKSMK

5457577-463

$159.99

14

VENT-DOOR,LH,WHTSMK

5457577-675

$159.99

14

VENT-DOOR,LH,BRZSMK

5457577-731

$159.99

14

VENT-DOOR,RH,BLKSMK

5457578-463

$159.99

14

VENT-DOOR,RH,WHTSMK

5457578-675

$159.99

14

VENT-DOOR,RH,BRZSMK

5457578-731

$159.99

15

E-CLIP-M5,SS,0600101

7710568

$3.17

16

PIN, CLEVIS

7661873

$23.81

17

HINGE, FRICTION, LARGE

7081717

$76.89

18

PIN, DEFLECTOR

5439040

$23.81

19

VENT DOOR,INNER,LH

5454882

$36.41

19

VENT DOOR,INNER,RH

5454883

$36.41

19

VHB-13MM,5952

5814811

$9.70

20

FAIRING, LOWER, STORAGE BIN, LH

5454880

$72.60

20

FAIRING, LOWER, STORAGE BIN, RH

5454881

$72.60

20

SEAL-BIN,STRIP

5416973

$4.84

21

CONCHO, INDIAN SCRIPT, COLLAR

5633417

$48.56

22

SCREW-HXBH M4.2X1.4X25 8.8 ZOD

7519309

Unavailable

23

WASHER-4.3X14.0X0.8 ZB

7556477

Unavailable
